Small Boss MBBR Media filter media for biological Filtration
General introduction

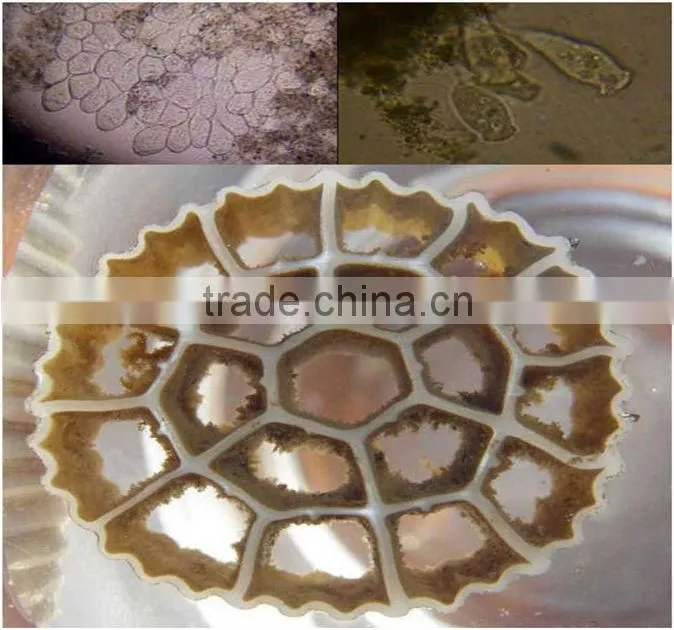

The suspension biological packing is called BIOCELL. It modified polymeric materials with the promoted additions of bio-enzyme, it improves the enzymatic catalysis, so it possess excellences of larger specific surface, being easy to multiply biofilm, difficult falling off, high denitrification, good hydrophile, high biological activity and so on.
Plastic bio medias / low price bio medias
Moving bed biofilm reactor ( Moving Bed Biofilm Reactor, referred to as MBBR ) is a kind of new biofilm reactor has high efficiency, strong ability to loading, high treatment efficiency, sludge age, less residual sludge, nitrogen and phosphorus removal effect is good, no sludge expansion, has been widely used in foreign countries; biological suspended filler is a core component of MBBR process.

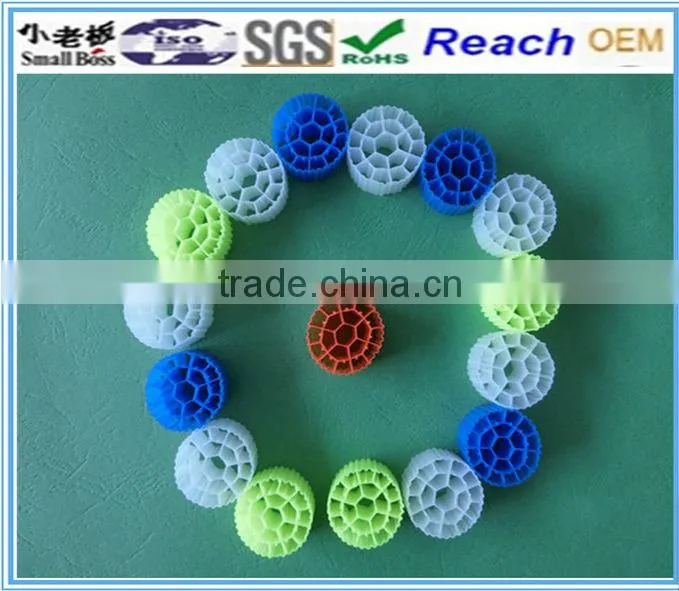

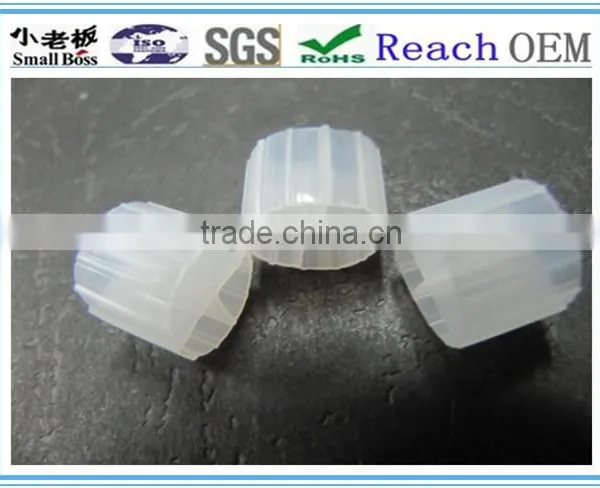

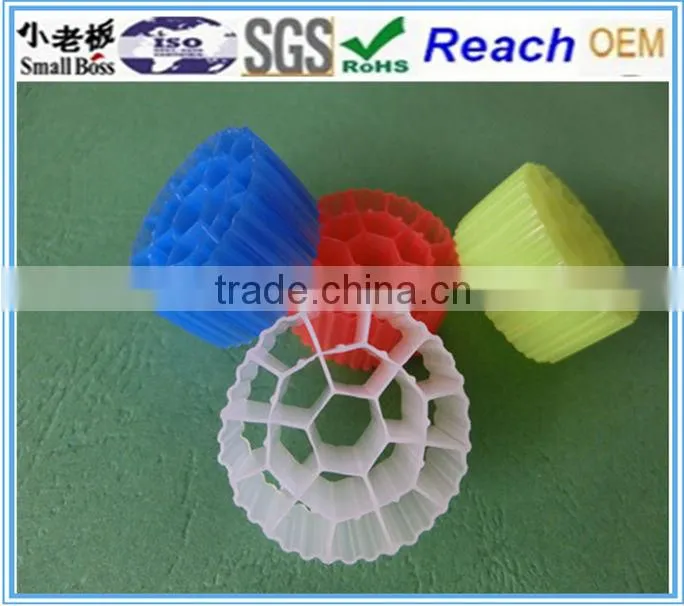

The Product show from PE01 to PE05
Model |
Size (mm) |
Surface area (m2/m3) |
Biofilm formation Duration (days) |
Nitrification Efficiency |
Perferential Temperature (℃) |
Service lift (years) |
PE01 |
Φ12*9 |
>800 |
5-15 |
650 |
<65 |
>10 |
PE02 |
Φ11*7 |
>1000 |
5-15 |
650 |
<65 |
>10 |
PE03 |
Φ10*7 |
>1200 |
5-15 |
650 |
<65 |
>10 |
PE04 |
Φ14.5*10 |
>800 |
5-15 |
650 |
<65 |
>10 |
PE05 |
Φ25*12 |
>500 |
5-15 |
650 |
<65 |
>10 |
PE09 |
Φ15*15 |
>950 |
5-15 |
650 |
<65 |
>10 |

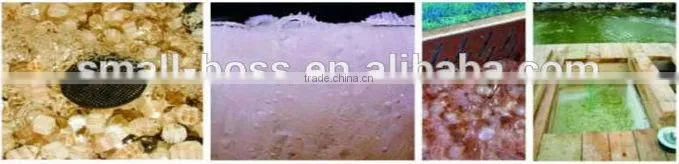

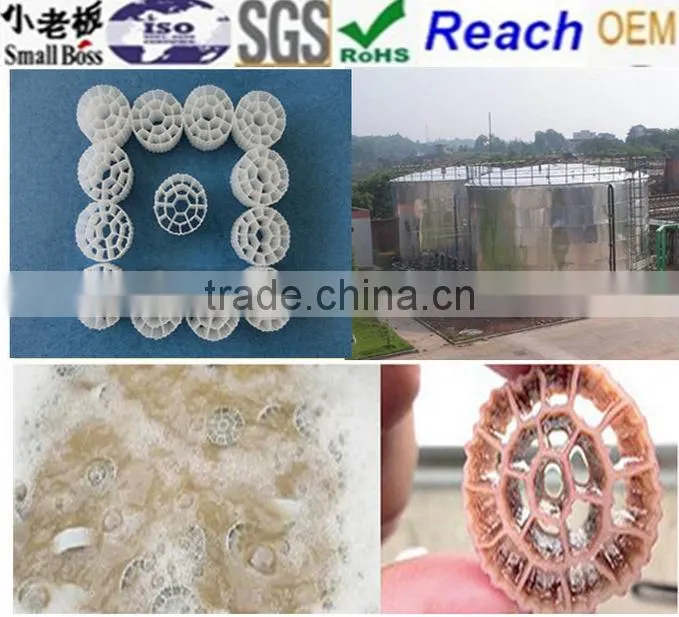

All the using process

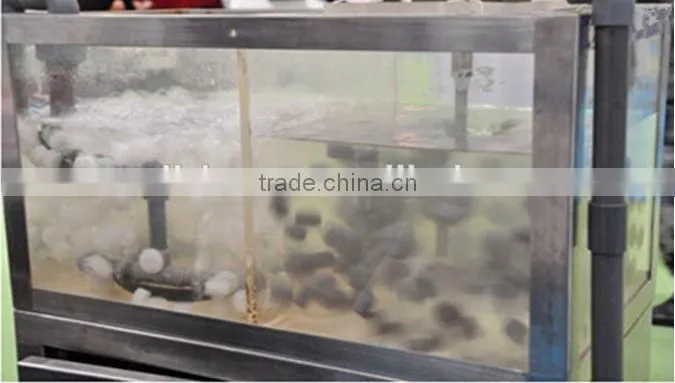

Professional test
MBBR Technology design

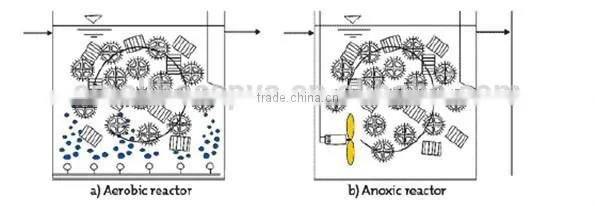

The aerated MBBR uses, as the activated sludge process, the whole volume of an open tank, It is defined as a biofilm system, as the biomass is growing on carriers that move freely within the reactoe volume and are kept within the reactor by a sleve at the reactor outlet. The system can be used either for aerobic or anoxic processes. In aerobic processes, the biofilm carriers are kept in suspension by the agitation created by air from aeration diffusers, while in anoxic processes a mixer keep the carriers in movement. A schematic of the priciple in an implementatoin of the WOCK OLIVER MBBR technology is shown below.
Packing:
0.1m3/bag by woven bag, 20GP can load 28M3, total is 280bag. 40GP can load 59M3, total is 590bags, 40HQ can load 68M3, total is 680bag. We can disign different packing according to your requirements.
Thanksgiving, innovation, unity, the most cohesive team!!!
Small boss is your best choice!
