Help CenterSlice Cutting Wheel Disc for Metal and Steel
Related Products
-
Normal Steel Cutting Wheel for Angle GrinderUS$ 0.13 - 0.26MOQ: 10000 Pieces -
350mm Abrasive Stationary Saw Blades Cutting Wheels Big DiameterUS$ 0.85 - 1.5MOQ: 3000 Pieces
-
105x1.2x16mm Abrasive Cut off Wheels,cutting Wheel,cutting Disc for Metal&stainless SteelUS$ 0.01 - 0.1MOQ: 1 Piece
-
350x2.5x25mm Abrasive Cut off Wheels,cutting Wheel,cutting Disc for Metal&stainless SteelUS$ 0.01 - 0.1MOQ: 1 Piece
-
350x2.5x25mm Abrasive Cut off Wheels,cutting Wheel,cutting Disc for Metal&stainless SteelUS$ 0.9 - 1MOQ: 1 Piece
Specifications
1.Made by AO,SA2.Sharp,clean cut action
3.Two nets,high strength
4.Longer service life
5.Cutting slicing metal,iron,steel
Factory Advantages
1.Near to raw materials region,low labor costs,so lower production cost,competitive price
2.Locate in the center of China,low and almost same transport costs to any China main port,
3.Advanced technique,
4.More than 10 years production experience,
5.Strict quality testing,good after-sale service,
6.ISO9001:2000 certificate
7.Abundant export experience
8.Accept OEM brand,
9.Small order is accepted.
10.Free samples to test quality.
Raw Materials
1)T41:T41 flat slice cutting wheel disc
2)A46:Aluminium oxide material grit 46
High hardness abrasive:ensure cutting sharp sex
3)Q:Hardness grade
4)B:Combined material "resin"
High quality adhesive resin:ensure good durable performance
Powder phenolic resin:Good technological efficiency,a smaller forming density,greater abrasives structure.
5)F:Fiber glass reinforced
High quality reinforced mesh:ensure the product use security
6)80m/s:R.P.M,means meter per second,rotary speed.
Product:
| Size(mm) | Size(inch) | Shape | Description(A46#QBF) | Colour | Speed(r.p.m) | Speed(m/s) |
105x1.0x16 |
41/7x1/24x5/8 | flat |
1.Material:Aluminium oxide 2.Grit size 46#, 3.Hardness(1):Q 4.Bonding agent:resin 5.Reinforced net:two fiberglass nets |
Brown,black | 15200 | 80 |
(1)Generally,please chose reasonable hardness cut off disc to reduce its attrition wear.These factors can affect the cut off disc hardness:The amount of resin bond to join,Forming density of abrasive,Sintering temperature and sintering temperature etc.
Feature:
1.First glass WA/AO raw material with special material,
2.Imported resin bonded makes our wheel disc stronger,
3.Two reinforced fiberglass nets for maximum safety,
4.Fast and effective cutting, easy steering and comfrotable cutting,
5.A precise and tightly controlled process,
6.Super cooling cutting-won”t burn workpiece surface,
7.No vibration and no bouncing when cutting the object,
8.Only little dust and noise production,
9.Long life and excellent stock removal.
Application:
cutting hard metal,like general steels,ferrous metal,aluminium,iron,angle iron,brass,bronze,carbon steel,casting,railway,non-ferrous metal,soft metal,welds,solid materials
Industry:
1.Cutting sheet metal -cutting pipe
2.Foundry/forge shops-gate/riser removal
3.Cutting forgings-metal plate dimensioning
4.Ship building-metal fabrication
5.Tool room-cutting drill bits,steel bar,tubing,metallurgical sectioning
6.Construction-concrete/masonry work

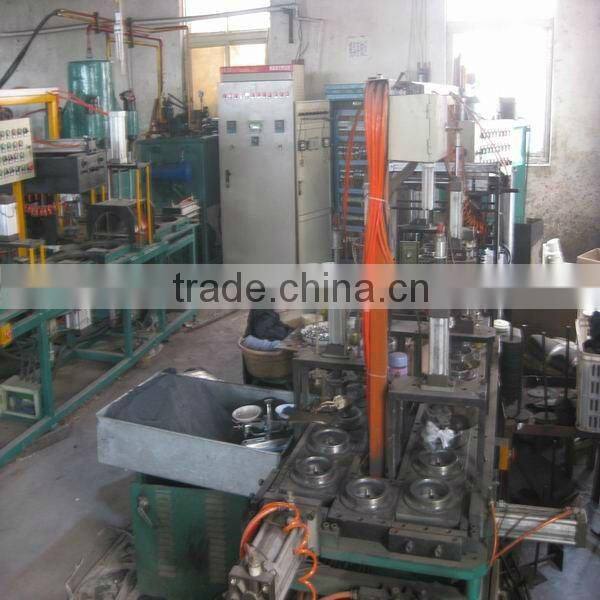

Automatic production line:ensure the stability of our products

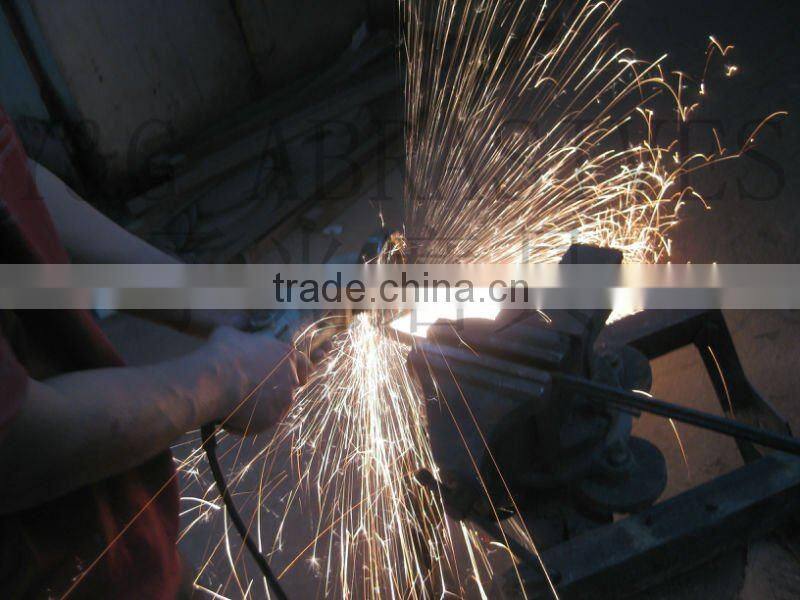

Performance testing site
The cutting workpiece:D12mm 201 Stainless steel
After cutting 10 times,the diameter of the cutting wheel:94mm
After cutting 20 times,the diameter of the cutting wheel:85mm
After cutting 30 times,the diameter of the cutting wheel:70mm
test result is one piece of 105*1.2*16 mm ,cuting finished. | ||||
Size |
cutting object |
cutoff quantity |
efficiency SEC/cutoff |
quality |
Φ105×1.2×16mm |
Φ10mm SS rod |
85 |
4 |
A |
Φ105×1.2×16mm |
Φ10mm SS rod |
55 |
5 |
B |
Φ105×1.2×16mm |
Φ10mm SS rod |
27 |
7 |
C |
Cutting result
Install and use advice:
1.Do visually inspect all wheel before mounting for possible damage.
2.Do make sure operating speed of machine, does not exceed speed marked on wheel.
3.Do check mounting flanges for equal size,relieved as required and correct diameter.
4.Make sure workpiece is stable.Hold the tool so that the wheel is at a perpendicular angle to the workpiece being cut;
5.Keep a light touch, as the wheel will break under too much pressure. Do not bump the wheel to start a cut;
6.Feed the wheel through the work as fast as possible without slowing the wheel in the cutting.
Safety Recommendations:
1.Wear protective goggles
2.Wear protective gloves
3.Wear ear protectors
4.Wear dust respirators
5.Observe safety recommendations

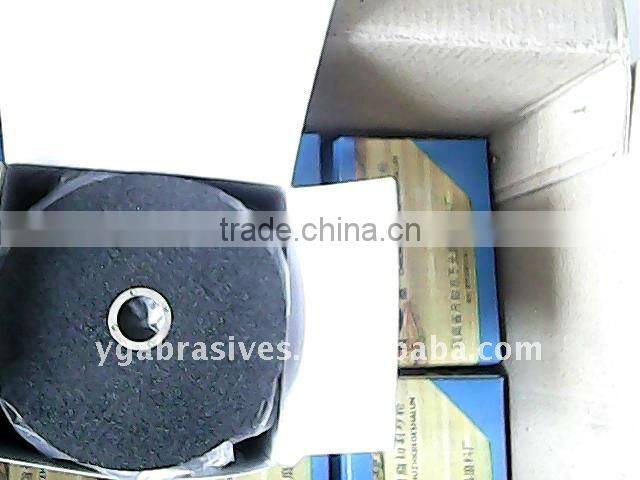

Packing:
1.During transport,please load and unload carufully to prevent the crack and shock.Ensure packing without damage.
2.During storage,put the wheels horizontally,donot touch the floor directly.
3.Should prevent moisture and direct sunlight,keep the warehouse shady and ventilated.The warehouse's temperature can not be less than 5 degrees.
Dimension |
Dimension |
Speed |
Speed |
G.Weight |
Dimension |
Packing pcs/carton |
100x1.0x16 |
4x1/24x5/8 |
15200 |
80 |
17 |
440x230x170 |
800 |
105x1.0x16 |
41/7x1/24x5/8 |
14500 |
80 |
19 |
460x238x170 |
800 |
115x1.0x22.2 |
41/2x1/24x7/8 |
13300 |
80 |
23 |
500x260x185 |
800 |
125x1.0x22.2 |
5x1/24x7/8 |
12200 |
80 |
18 |
410x280x175 |
600 |
150x1.0x22.2 |
6x1/24x7/8 |
10200 |
80 |
17 |
330x330x175 |
400 |
180x1.0x22.2 |
7x1/24x7/8 |
8500 |
80 |
22 |
400x200x380 |
400 |
200x1.0x25.4 |
8x1/24x1 |
7600 |
80 |
15 |
320x220x220 |
200 |
