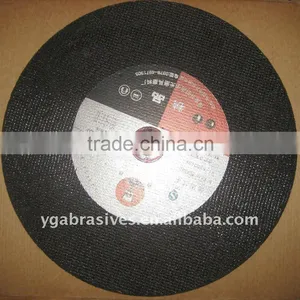

Help Center350mm Abrasive Stationary Saw Blades Cutting Wheels Big Diameter
Related Products
-
105x1.2x16mm Abrasive Cut off Wheels,cutting Wheel,cutting Disc for Metal&stainless SteelUS$ 0.01 - 0.1MOQ: 1 Piece -
350x2.5x25mm Abrasive Cut off Wheels,cutting Wheel,cutting Disc for Metal&stainless SteelUS$ 0.01 - 0.1MOQ: 1 Piece
-
350x2.5x25mm Abrasive Cut off Wheels,cutting Wheel,cutting Disc for Metal&stainless SteelUS$ 0.9 - 1MOQ: 1 Piece
-
Manufacturers 5" Inch Resin Bonded Cut off Wheel for Angle GrindersUS$ 0.16 - 0.28MOQ: 10000 Pieces
-
White Aluminium Oxide Cut off Wheel for Inox in Zhengzhou HenanUS$ 0.12 - 0.25MOQ: 30000 Pieces
Specifications
1.Aluminium oxide made2.Sharp,high efficiency
3.Two fiberglass nets,safety
4.Lower consumption
5.Cut ordinary metal steel
Factory Advantages
1.Near to raw materials region,low labor costs,so lower production cost,competitive price,
2.Locate in the center of China,low and almost same transport costs to any China main port,
3.Advanced technique,
4.More than 10 years production experience,
5.Strict quality testing,good after-sale service,
6.ISO9001:2000 certificate,
7.Abundant export experience,
8.Accept OEM brand,
9.Small order is accepted
10.Free samples to test quality.
Raw Materials
High hardness abrasive:ensure cutting sharp sex
Brown aluminium Oxide
High quality reinforced net:ensure the security
High quality adhesive resin:ensure good durable performance
Powder phenolic resin:Good technological efficiency,a smaller forming density,greater abrasives structure.
Product:
| Size(mm) | Size(inch) | Shape | Description(A30#Q4BF) | Colour | Speed(r.p.m) | Speed(m/s) |
|
350x3.0x25.4
|
14x1/8x1 | flat |
1.Material:Aluminium oxide 2.Grit size:30#, 3.Hardness(1):Q 4.Structure number(2): 4 5.Bonding agent:resin 6.Reinforced net:one or two fiberglass nets |
Brown,black | 4400 | 80 |
(1)Generally,please chose reasonable hardness cutting wheel to reduce its attrition wear.These factors can affect the cutting wheel hardness:The amount of resin bond to join,Forming density of abrasive,Sintering temperature and sintering temperature etc.
(2)The structure number should be larger in order to improve the cutting efficiency,but it should not be too large,otherwise it will affect the strength.
Feature:
1.High aluminium oxide grain concentration for aggressive cutting action and smoother running,
2.Imported resin bonded makes our disc stronger,
3.Both side two nets keep great strength,add cutting safety,
4.Sharp,give clean and accurate cutting,
5.Won''t burn the work piece''s surface
6.Cutting the meterial with out demage,
7.High efficiency and excellent balance,
8.Reduced energy consumption,low noise generation,low dust production,
9.Longer service life,high durability.
Usage:
1)It was used for cutting ordinary metal, steel,collared metal, cast steel, grey/green cast iron, spheroidal cast iron, casting and nonferrous metal
2)the industry maybe use this wheel
1.machinery industry,
2.automobile industry,
3.shipbuilding industry,
tallurgy industry,
5.investment castings,
nstruction industry.
Domestic leading molding equipment:ensure the stability of the product performance
The process of checking the quality:
1.Check the cutting wheel's appearance:
Whether the cutting wheel has attrition on the surface
Whether the cutting wheel has concave point on the surface
2.Check the cutting wheel's diameter
3.Check the cutting wheel's thickness
4.Check the cutting wheel's aperture:25.4mm
5.Check the cutting wheel's cutting capacity
Cutting site
The workpiece after cutting
Test report:
size |
cutting object |
cutoff quantity |
efficiency SEC/cutoff |
After cutting |
Φ230×3.0mm |
5×5×0.3cm |
10 |
10 |
Φ 220mm |
Φ250×2.0mm |
5×5×0.3cm |
20 |
15 |
Φ 245mm |
Φ300×2.5mm |
5×5×0.3cm |
20 |
9 |
Φ 283mm |
Φ350×2.5mm |
5×5×0.3cm |
20 |
7 |
Φ 336mm |
Cautions:
1.Do visually inspect all wheel before mounting for possible damage.
2.Do make sure operating speed of machine, does not exceed speed marked on wheel,its blotter or container.
3.Do check mounting flanges for equal size,relieved as required and correct diameter.
4.Do be make sure work rest is properly adjusted on bench,pedestal and floor stand grinder.
5.Do always use safety guard that covers a mimimum of one-half the abrasive wheel.
6.Do allow newly mounted wheel to turn at operating speed,with guard in place,for at least one minute before grinding.
7.Do ture off coolant before stopping wheel to avoid creating an out-of-balance condition.
Safety Recommendations:
1.Wear protective goggles;
2.Wear protective gloves;
3.Wear ear protectors;
4.Wear dust respirators;
5.Observe safety recommendations.
Packing:
1.During transport,please load and unload carufully to prevent the crack and shock.Ensure packing without damage.
2.During storage,put the wheels horizontally,donot touch the floor directly.
3.Should prevent moisture and direct sunlight,keep the warehouse shady and ventilated.The warehouse's temperature can not be less than 5 degrees.
Dimension |
Dimension |
Speed |
Speed |
G.Weight |
Dimension |
Packing pcs/carton |
250x3.0x25.4 |
10x1/8x1 |
6100 |
80 |
10 |
260x90x260 |
25 |
300x2.0x25.4 |
12x5/64x1 |
5100 |
80 |
12 |
310x80x310 |
25 |
300x2.5x25.4 |
12x3/32x1 |
5100 |
80 |
13 |
310x90x310 |
25 |
300x3.0x25.4 |
12x1/8x1 |
5100 |
80 |
14 |
310x90x310 |
25 |
350x2.5x25.4 |
14x3/32x1 |
4400 |
80 |
17 |
360x90x360 |
25 |
350x3.0x25.4 |
14x1/8x1 |
4400 |
80 |
18 |
360x90x360 |
25 |
400x3.0x25.4 |
16x1/8x1 |
3800 |
80 |
24 |
410x90x410 |
25 |
400x3.0x32.0 |
16x1/8x1 1/4 |
3800 |
80 |
23 |
410x90x410 |
25 |
