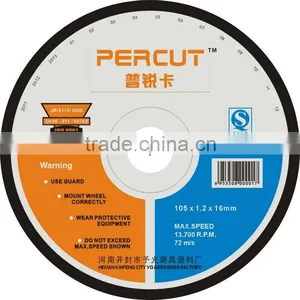

Help Center4" Inch Abrasive Disc for Steel Cutting (T41 Type)
Related Products
-
Non-reinforced Cutting Wheel Disc Grinding for MetalUS$ 0.55 - 0.85MOQ: 3000 Pieces -
T41 Flat Resin Bond Cutting Disc for PipeUS$ 0.3 - 0.461MOQ: 5000 Pieces
-
9" Inch Cutting Disc for Angle Grinders (230*3.0*22.23mm)US$ 0.55 - 0.85MOQ: 5000 Pieces
-
3mm Thick Metal Cutting Discs 4.5'' InchUS$ 0.11 - 0.175MOQ: 10000 Pieces
-
4.5'' Slitting Disc 1.0mm and 1.6mm Thick for Stainless SteelUS$ 0.14 - 0.185MOQ: 10000 Pieces
Specifications
1.Brown aluminum oxide2.Two fiberglass nets,strength
3.Sharp,high efficient
4.Cut metal,steel,80m/s
5.Longer service life
Factory Advantages
1.Near to raw materials region,low labor costs,so lower production cost,competitive price
2.Locate in the center of China,low and almost same transport costs to any China main port,
3.Advanced technique,
4.More than 10 years production experience,
5.Strict quality testing,good after-sale service,
6.ISO9001:2000 certificate
7.Abundant export experience
8.Accept OEM brand,
9.Small order is accepted.
10.Free samples to test quality.
Raw Materials
High hardness abrasive:ensure cutting sharp sex

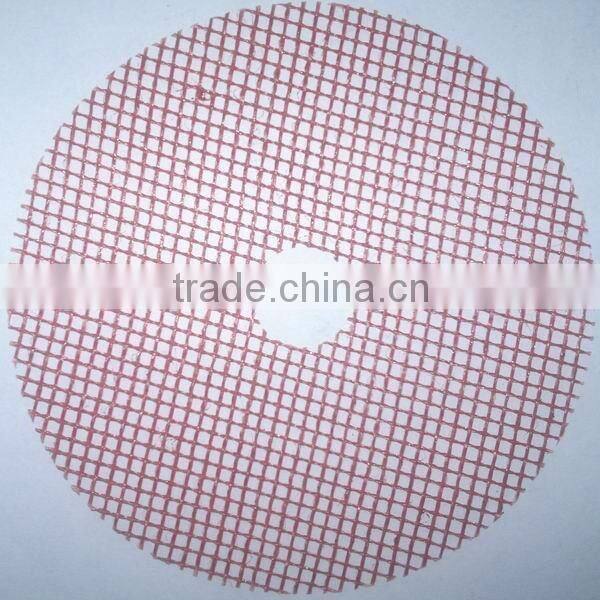

High quality reinforced net:ensure the product use security
High quality adhesive resin:ensure good durable performance

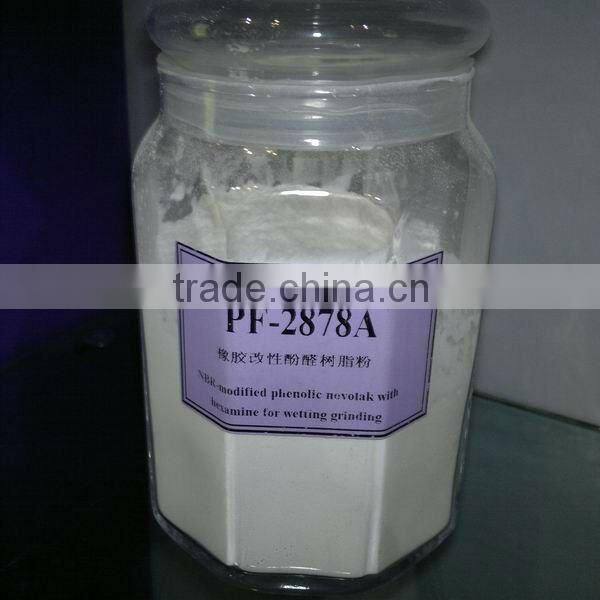

There are two kind of resin bond:powder phenolic resin and liquid phenolic resin.
Powder phenolic resin:Good technological efficiency,a smaller forming density,greater abrasives structure.
Liquid phenolic resin:Material is easy to agglomerate,It easy to make mixed material nonuniform and cause abrasive partially hard.
Product:
| Size(mm) | Size(inch) | Shape | Description(A46#QBF) | Colour | Speed(r.p.m) | Speed(m/s) |
105x1.2x16 |
41/7x1/24x5/8 | flat |
1.Material:Aluminium oxide 2.Grit size 46#, 3.Hardness(1):Q 4.Bonding agent:resin 5.Reinforced net:two fiberglass nets |
Brown,black | 15200 | 80 |
(1)Generally,please chose reasonable hardness cut off disc to reduce its attrition wear.These factors can affect the cut off disc hardness:The amount of resin bond to join,Forming density of abrasive,Sintering temperature and sintering temperature etc.
Application:
Ideal for cutting stainless steel,SS tube,SS pipe,alloy steel,ionx,hard metal or other high tensile metal,also can cut sheel bar,steel pipe,steel plate,metal sheel,metal plate,iron rod etc
the industry maybe use this wheel
1.machinery
2.automobile
3.shipbuilding
tallurgy
5.investment castings
nstruction
Feature:
1.Premium quality aluminum oxide raw material assure high durability,
2.Imported resin bonded makes our disc stronger,
3.Two reinforced fiberglass nets keep great strength and add cutting safety,
4.Sharp,fast and smooth cutting,high efficiency,
5.Tolerate high temperatures,won''t burn the workpiece''s surface,
6.Cutting the workpiece without crack,excellent balance and no vibration in the operation,
7.Low noise generation and low dust production,
8.Possess superior abrasion resistance,low power consumption,durability.

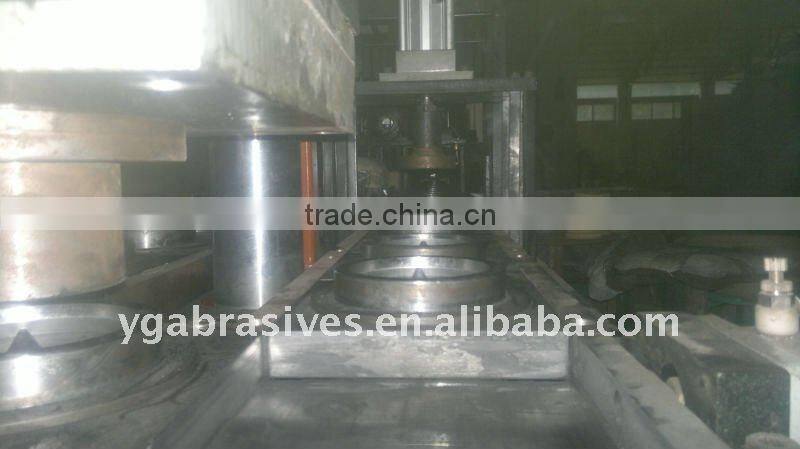

Automatic production line:ensure the stability of our products

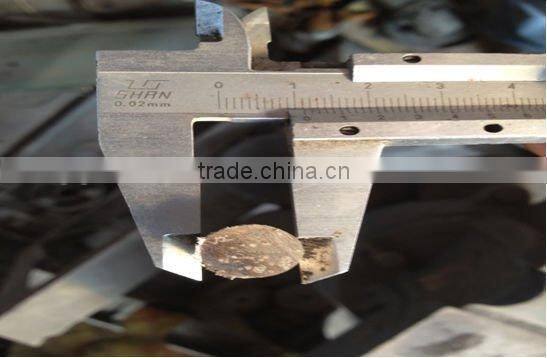

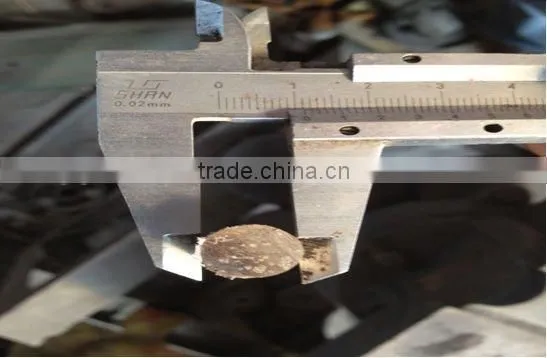

The cutting workpiece:D12mm 201 Stainless steel

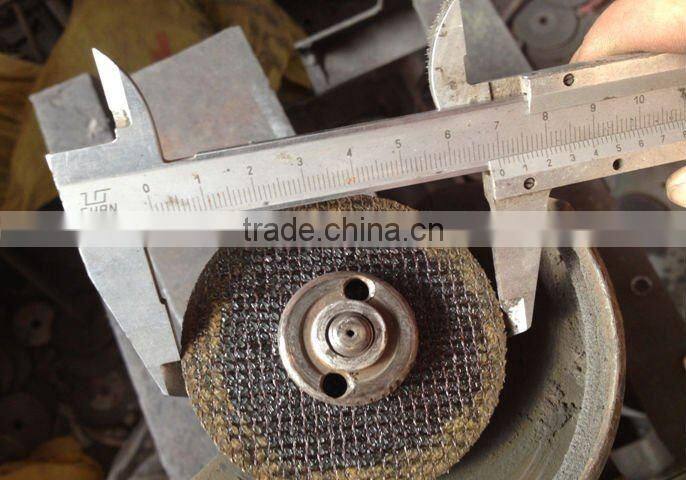

After cutting 10 times,the diameter of the abrasive disc:94mm

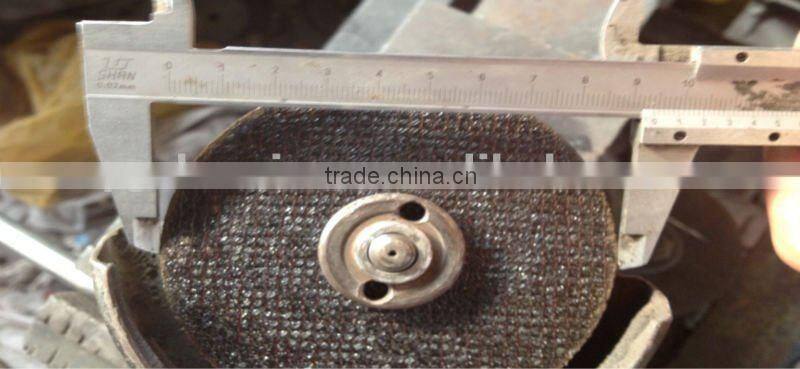

After cutting 20 times,the diameter of the abrasive disc:85mm

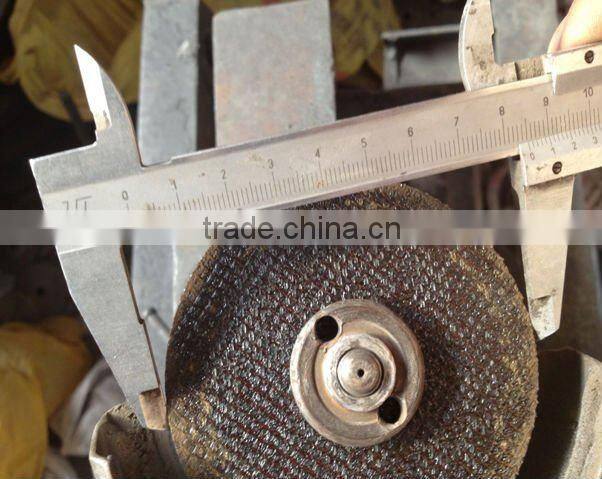

After cutting 30 times,the diameter of the abrasive disc:70mm

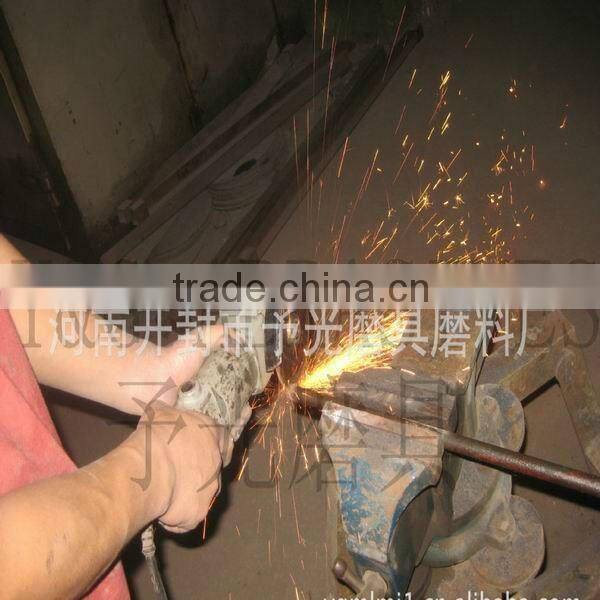

The test report
test result is one piece of 105*1.2*16 mm ,cuting finished. | ||||
Size |
cutting object |
cutoff quantity |
efficiency SEC/cutoff |
quality |
Φ105×1.2×16mm |
Φ10mm SS rod |
85 |
4 |
A |
Φ105×1.2×16mm |
Φ10mm SS rod |
55 |
5 |
B |
Φ105×1.2×16mm |
Φ10mm SS rod |
27 |
7 |
C |

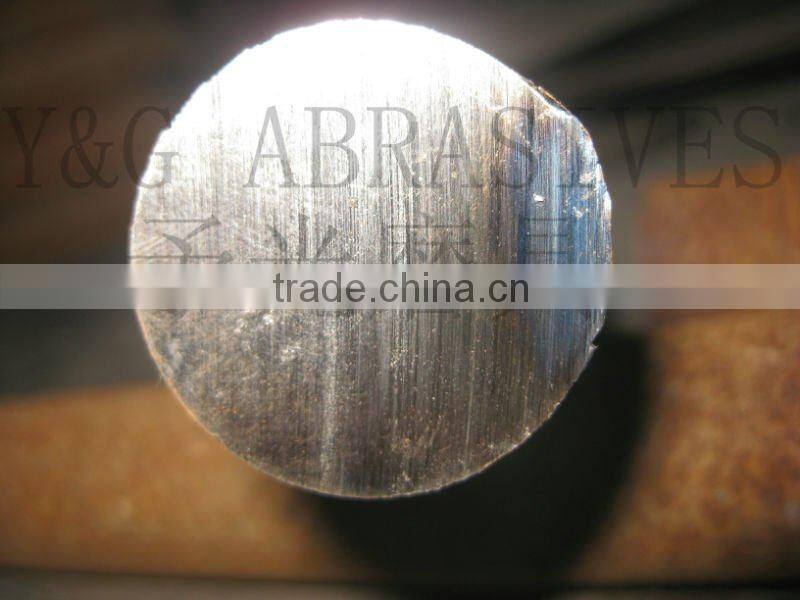

Cutting result
Cautions:
1.Do visually inspect all wheel before mounting for possible damage.
2.Do make sure operating speed of machine, does not exceed speed marked on wheel.
3.Do check mounting flanges for equal size,relieved as required and correct diameter.
4.Make sure workpiece is stable.Hold the tool so that the wheel is at a perpendicular angle to the workpiece being cut;
5.Keep a light touch, as the wheel will break under too much pressure. Do not bump the wheel to start a cut;
6.Feed the wheel through the work as fast as possible without slowing the wheel in the cutting.
Safety Recommendations:
1.Wear protective goggles
2.Wear protective gloves
3.Wear ear protectors
4.Wear dust respirators
5.Observe safety recommendations
Packing:
1.During transport,please load and unload carufully to prevent the crack and shock.Ensure packing without damage.
2.During storage,put the wheels horizontally,donot touch the floor directly.
3.Should prevent moisture and direct sunlight,keep the warehouse shady and ventilated.The warehouse's temperature can not be less than 5 degrees.
Dimension |
Dimension |
Speed |
Speed |
G.Weight |
Dimension |
Packing pcs/carton |
100x1.0x16 |
4x1/24x5/8 |
15200 |
80 |
17 |
440x230x170 |
800 |
105x1.0x16 |
41/7x1/24x5/8 |
14500 |
80 |
19 |
460x238x170 |
800 |
115x1.0x22.2 |
41/2x1/24x7/8 |
13300 |
80 |
23 |
500x260x185 |
800 |
125x1.0x22.2 |
5x1/24x7/8 |
12200 |
80 |
18 |
410x280x175 |
600 |
150x1.0x22.2 |
6x1/24x7/8 |
10200 |
80 |
17 |
330x330x175 |
400 |
180x1.0x22.2 |
7x1/24x7/8 |
8500 |
80 |
22 |
400x200x380 |
400 |
200x1.0x25.4 |
8x1/24x1 |
7600 |
80 |
15 |
320x220x220 |
200 |
