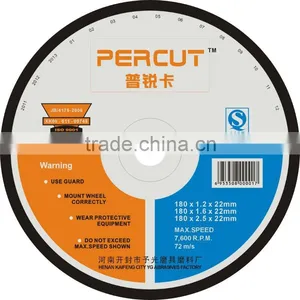

4.5'' Slitting Disc 1.0mm and 1.6mm Thick for stainless steel

Specifications

4.5" Slitting Disc 1.6mm Thick
1.Made by WA,
2.Sharp,give clean cut
2.Two reinforced mesh add safety
4.Cut stainless steel

Factory Advantages

1.Near to raw materials region,low labor costs,so lower production cost,competitive price

2.Locate in the center of China,low and almost same transport costs to any China main port,

3.Advanced technique,

4.More than 10 years production experience,

5.Strict quality testing,good after-sale service,

6.ISO9001:2000 certificate

7.Abundant export experience

8.Accept OEM brand,

9.Small order is accepted.

10.Free samples to test quality.

Raw Materials

High hardness abrasive:ensure cutting sharp sex

High quality adhesive-resin:ensure good durable performance

Powder phenolic resin:Good technological efficiency,a smaller forming density,greater abrasives structure.

High quality reinforced net:ensure the product use security

Product:

Size(mm)	Size(inch)	Shape	Description(A60#TBF)	Colour	Speed(r.p.m)	Speed(m/s)
115x1.6x22.23	41/2x1/16x7/8	flat	1.Material:Aluminium oxide,WA 2.Grit size 60#, 3.Hardness(1):T 4.Bonding agent:resin 5.Reinforced net:two fiberglass nets	Brown,black	13300	80

(1)Generally,please chose reasonable hardness cutting wheel to reduce its attrition wear.These factors can affect the cutting wheel hardness:The amount of resin bond to join,Forming density of abrasive,Sintering temperature and sintering temperature etc.

Feature:

1.First glass white aluminium oxide raw material with special material,

2.Imported resin bonded makes our disc stronger,

3.Two reinforced fiberglass nets keep great strength and add cutting safety,

4.Sharp,fast and smooth cutting,high efficiency,

5.Tolerate high temperatures,won''t burn the workpiece''s surface,

6.High strength and shock resistance,so no vibration and no bouncing when cutting the workpiece,

7.Cutting the workpiece without crack,

8.Low noise generation and low dust production,

9.Possess superior abrasion resistance,low power consumption,durability,

Usage:

1)Ideal for cutting stainless steel,SS tube,SS pipe,alloy steel,ionx,hard metal or other high tensile metal,also can cut sheel bar,steel pipe,steel plate,metal sheel,metal plate,iron rod etc.

2)These industry maybe use the disc

1.Investment castings,

2.Steel ingotsand bar manufacturing,

3.Construction,

4.Foundries and allied industry,

5.Pipe manufacturing,

6.Fabrication

Domestic leading molding equipment:ensure the stability of the product performance

The process of checking the quality:

Performance testing site

Cutting result

Install and use advice:

1.Do visually inspect all wheel before mounting for possible damage.

2.Do make sure operating speed of machine, does not exceed speed marked on wheel.

3.Do check mounting flanges for equal size,relieved as required and correct diameter.

4.Make sure workpiece is stable.Hold the tool so that the wheel is at a perpendicular angle to the workpiece being cut;

5.Keep a light touch, as the wheel will break under too much pressure. Do not bump the wheel to start a cut;

6.Feed the wheel through the work as fast as possible without slowing the wheel in the cutting.

Safety Recommendations:

1.Wear protective goggles
2.Wear protective gloves
3.Wear ear protectors
4.Wear dust respirators
5.Observe safety recommendations

Size	Cutting Object	Cutoff Quantity	Efficiency SEC/cutoff	After Cutting Surplus
Φ350×3.0mm	5×5×0.3cm angle iron	5	5	Φ349mm
Φ350×2.0mm	5×5×0.3cm angle iron	5	7	Φ347mm
Φ300×2.0mm	5×5×0.3cm angle iron	5	6	Φ297mm

Packing:

1.During transport,please load and unload carufully to prevent the crack and shock.Ensure packing without damage.

2.During storage,put the wheels horizontally,donot touch the floor directly.

3.Should prevent moisture and direct sunlight,keep the warehouse shady and ventilated.The warehouse's temperature can not be less than 5 degrees

Dimension mm	Dimension inch	Speed r.p.m	Speed m/s	G.Weight kg	Dimension L*W*H(mm)	Packing pcs/carton
100x1.6x16	4x1/16x5/8	15200	80	24	440x230x225	800
115x1.6x22.2	41/2x1/16x7/8	13300	80	16	500x260x118	400
125x1.6x22.2	5x1/16x7/8	12200	80	19	280x280x218	400
150x1.6x22.2	6x1/16x7/8	10200	80	27	330x330x225	400
180x1.6x22.2	7x1/16x7/8	8500	80	29	390x390x190	300
200x1.6x22.2	8x1/16x7/8	7600	80	14	430x220x130	100
230x1.6x22.2	9x1/16x7/8	6600	80	16	490x250x130	100
250×1.6×25.4	10x1/16x1	6100	80	18	530x270x130	100
