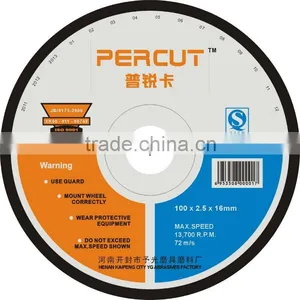

Help CenterSuper Thin Inox Cut off Wheel for Portable Machine
Related Products
-
4" Inch Abrasive Disc for Steel Cutting (T41 Type)US$ 0.095 - 0.145MOQ: 50000 Pieces -
Non-reinforced Cutting Wheel Disc Grinding for MetalUS$ 0.55 - 0.85MOQ: 3000 Pieces
-
T41 Flat Resin Bond Cutting Disc for PipeUS$ 0.3 - 0.461MOQ: 5000 Pieces
-
9" Inch Cutting Disc for Angle Grinders (230*3.0*22.23mm)US$ 0.55 - 0.85MOQ: 5000 Pieces
-
3mm Thick Metal Cutting Discs 4.5'' InchUS$ 0.11 - 0.175MOQ: 10000 Pieces
Specifications
White aluminum oxide,Sharp,give clean cut,
High strength add safety,
Donot fire workpiece surface
Cutting inox,alloy steel
Factory Advantages
1.Near to raw materials region,low labor costs,so lower production cost,competitive price,
2.Locate in the center of China,low and almost same transport costs to any China main port,
3.Advanced technique,
4.More than 10 years production experience,
5.Strict quality testing,good after-sale service,
6.ISO9001:2000 certificate,
7.Abundant export experience,
8.Accept OEM brand
9.Small order is accepted,
10.Free samples to test quality.

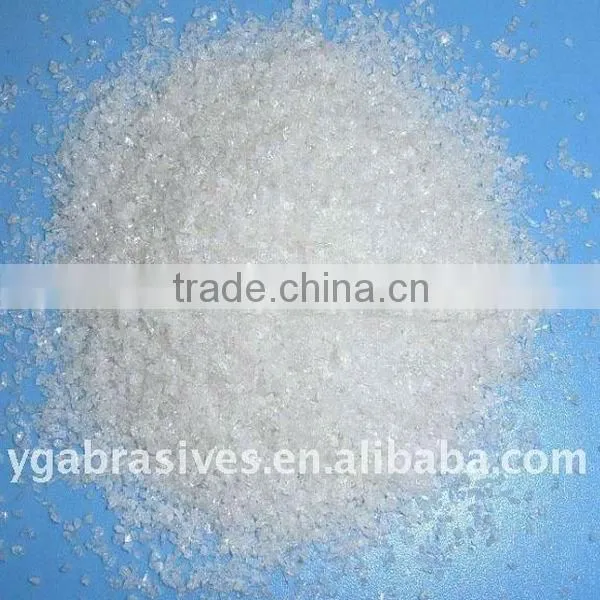

Raw Materials
High hardness abrasive:ensure cutting sharp sex
High quality adhesive resin:ensure good durable performance
Powder phenolic resin:Good technological efficiency,a smaller forming density,greater abrasives structure.
High quality reinforced net:ensure the product use security
Product:
| Size(mm) | Size(inch) | Shape | Description(WA60#TBF) | Colour | Speed(r.p.m) | Speed(m/s) |
|
100x2.0x16
|
4x5/64x5/8 | flat |
1.Material:Aluminium oxide/WA 2.Grit size:60#, 3.Hardness(1):T 4.Bonding agent:resin 5.Reinforced net:Two fiberglass nets |
Black | 15200 | 80 |
(1)Generally,please chose reasonable hardness cutting wheel to reduce its attrition wear.These factors can affect the cutting wheel hardness:The amount of resin bond to join,Forming density of abrasive,Sintering temperature and sintering temperature etc.
Application:
It is used by aerospace,plant maintenance,foundry,automotive,metal,fabrication and shipyards
ideally used for cutting all kind of metal and steel,for example ferrous metal,nonferrous metal,mild steel,alloy steel,stainless steel,cast steel,high tensile steel,steel tubes,steel pipe,steel bar,angle iron,cast iron etc
Feature:
1.Especially WA made for professional requestion of cutting inox,stainless steel,
2.Imported resin bonded makes our wheel stronger,
3.Both sides with reinforced fiberglass nets,strengthen,very good safety,
4.Best cutting performance with very fast cutting,
5.Grain edges are sharp,clean cutting action,
6.Excellent capacity of heat-transmission,do not burn workpiece,
7.In good balance,comfortable hand-feeling,
8.Only little dust and noise production,
9.Lowest power consumption,high durability.

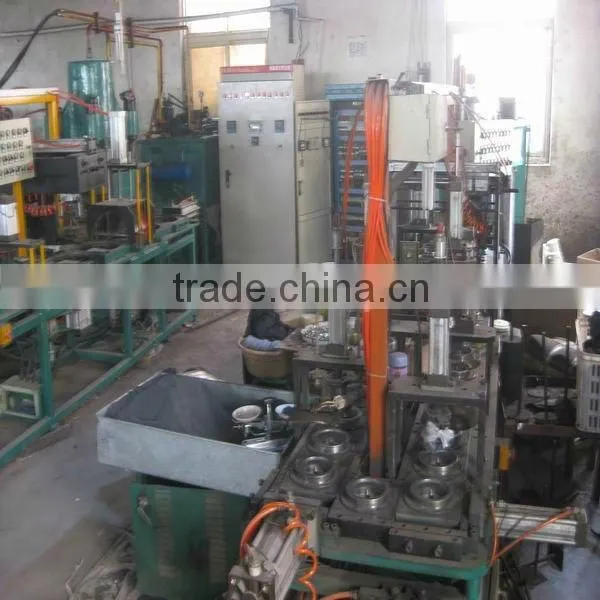

Domestic leading molding equipment:ensure the stability of the product performance

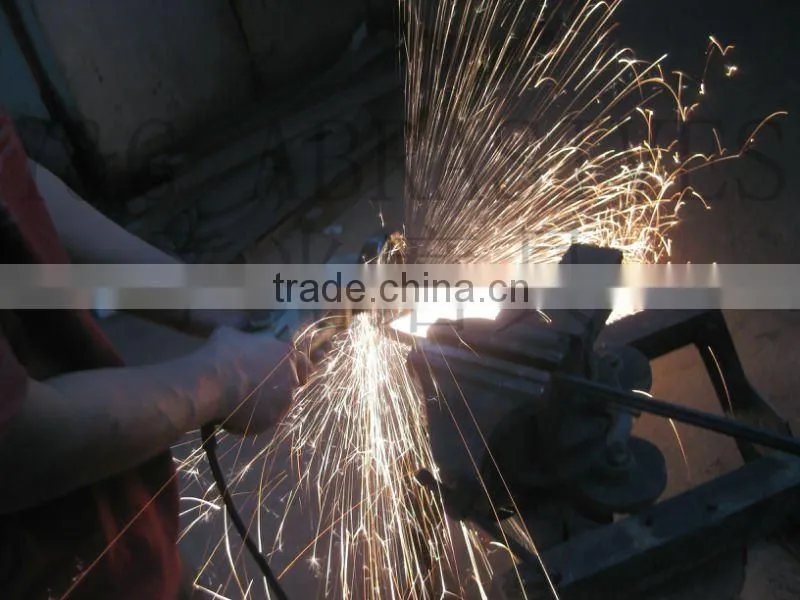

Performance testing site:
Cutting result
| Size | Cutting Object | Cutoff Quantity | Efficiency SEC/cutoff | After Cutting Surplus |
| Φ230×3.0mm | 5×5×0.3cm angle iron |
10 | 10 | Φ220mm |
| Φ250×2.0mm | 5×5×0.3cm angle iron |
20 | 15 | Φ245mm |
| Φ300×2.5mm | 5×5×0.3cm angle iron |
20 | 9 | Φ283mm |
| Φ350×2.5mm | 5×5×0.3cm angle iron |
20 | 7 | Φ336mm |
Cautions:
1.Do visually inspect all wheel before mounting for possible damage.
2.Do make sure operating speed of machine, does not exceed speed marked on wheel,its blotter or container.
3.Do check mounting flanges for equal size,relieved as required and correct diameter.
4.Do be make sure work rest is properly adjusted on bench,pedestal and floor stand grinder.
5.Do always use safety guard that covers a mimimum of one-half the abrasive wheel.
6.Do allow newly mounted wheel to turn at operating speed,with guard in place,for at least one minute beforerinding.
7.Do ture off coolant before stopping wheel to avoid creating an out-of-balance condition.
Safety Recommendatio
1.Wear protective goggles;
2.Wear protective gloves;
3.Wear ear protectors;
4.Wear dust respirators;
5.Observe safety recommendations.

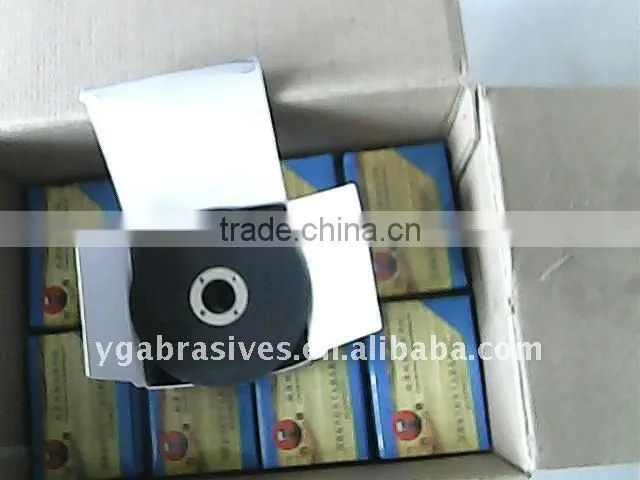

Packing:
1.During transport,please load and unload carufully to prevent the crack and shock.Ensure packing without damage.
2.During storage,put the discs horizontally,donot touch the floor directly.
3.Should prevent moisture and direct sunlight,keep the warehouse shady and ventilated.The warehouse's temperature can not be less than 5 degrees
Dimension |
Dimension |
Speed |
Speed |
G.Weight |
Dimension |
Packing pcs/carton |
100x2.0x16 |
4x5/64x5/8 |
15200 |
80 |
23 |
440x230x215 |
600 |
115x2.0x22.2 |
41/2x5/64x7/8 |
13300 |
80 |
20 |
260x260x275 |
400 |
125x2.0x22.2 |
5x5/64x7/8 |
12200 |
80 |
19 |
410x280x155 |
300 |
150x2.0x22.2 |
6x5/64x7/8 |
10200 |
80 |
27 |
485x330x155 |
300 |
180x2.0x22.2 |
7x5/64x7/8 |
8500 |
80 |
26 |
390x390x155 |
200 |
200x2.0x22.2 |
9x5/64x7/8 |
7600 |
80 |
17 |
440x230x150 |
100 |
