Product Specification
Item |
Specification |
Type |
Projected capacitive touch panel |
Model Number |
FN043A03-V1.0 |
Size |
4.3 inch |
Structure |
G+G |
Controller IC |
CYTMA568-56 |
Visible Area,mm |
56.80*94.00 |
Outline Dimension,mm |
80.90*114.90*2.73 |
Cover Glass Thickness,mm |
2.00 |
Interface |
I2C |
Touch Points |
5 touch |
Surface Hardness |
6H |
Transmittance |
> 87% |
Operating temperature |
-20℃~70℃ |
Storage temperature |
-30℃~80℃ |
Durability |
> 300 million touch |
Remark: For more information please go to our website Http://
We can also make the matching module ( TFT + CTP ). Please contact us for details.
General Description:
Name: capacitive touch panel
No. of Touch: up to 10 touch max
Durability: 10 million touch
Interface: I2C, UBS, SPI
Operating temperature: -20 ~ 70°C
Storage temperature: -30 ~ 80°C
Support system: Android,Linux, Windows
Application area:
Industrial, Medical, industrial control, instrument and meter, handheld device, human machine interface

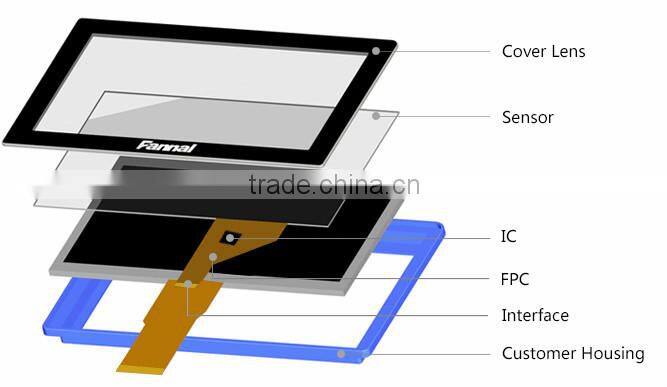

Cover lens customization
Size:1.28”-42”
Irregular shaped:support punching(down to radius 0.4mm)
Color:different color silk printing or logo printing(UV resistance ink supportable)
Strengthen glass:Coring Gorilla,AGC,Schott
Thickness:0.55;0.7;1.0;1.1;1.8;2.0;2.5;3.0;4.0;5.0;6.0mm
Special function
support different gloves(Nylon,Latex,Cotton,Wool,Snow gloves),max 5mm thickness
Support touch with water,oil,water-oil mixture,salt water
Support thick cover lens,max 6mm tempered glass
Sunlight readability
1.hight brightness TFT 500nit~1600nit
2.Optical boning technology
3.AG/AR/AF coating
1. Standard capacitive touch panel (1.28 ~42 inch)and LCD touch screen in stock.
2. Complete customized solutions & special treatment.
3. Nearly 10 years experience in touch screen industry,we understand customer’s requests.
4. High quality and realiabity of our touch screen, and ensure long-term supply.
5. A strict quality control system.
6. High price-performance of touch screen.
7. Provide the best debugging and other after sales services worldwide.

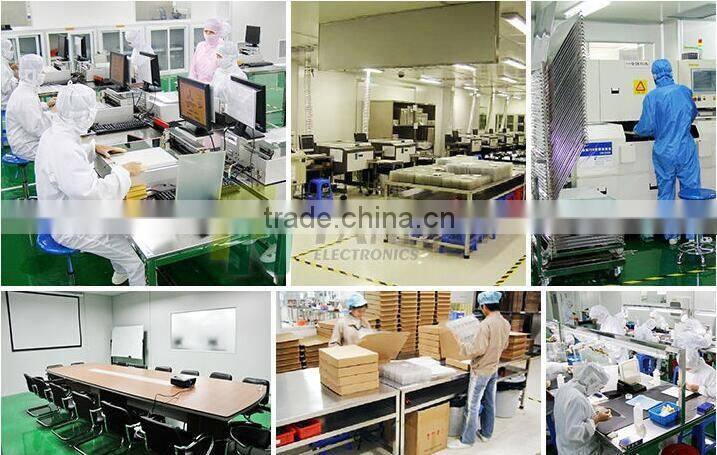

Our Factory
Trade terms |
FOB CIF EXW CPT |
Payment terms |
T/T |
MOQ |
Normally 1k, but depends on different products |
Lead time |
4~8 weeks |
