Home > Products > New Products > Manufactory FTP CAT6 Stranded Copper lan cable
Manufactory FTP CAT6 Stranded Copper lan cable
- 5000 Kilometer / Kilometers per Month
- Ningbo/shanghai
- T/T D/P D/A
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | chenfeng | Model Number: | cat6 |
| Number of Conductors: | 8 |
Product Description

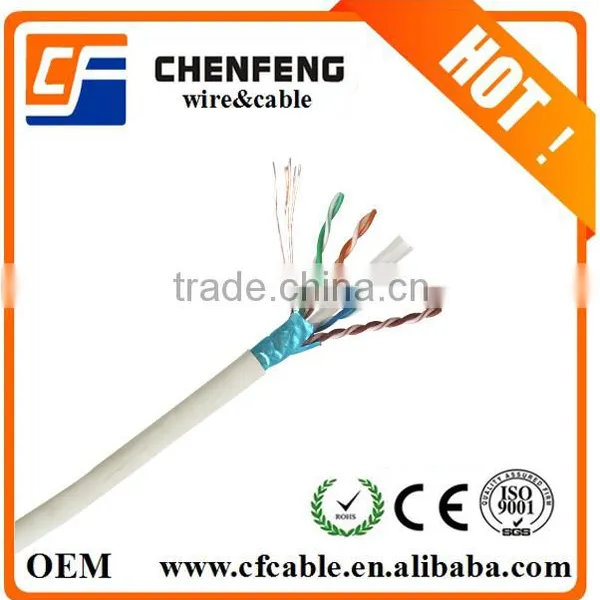

Manufactory FTP CAT6 Stranded Copper lan cable
Specifications:
Category | UTP CAT6-4P | |||
Conductor | Material | BC | ||
O.D. | 0.12mm | |||
Insulation | Material | HDPE | ||
External O.D. | 0.98mm | |||
Color | Pair 1 – White/Blue & Blue Pair 2 – White/Orange & Orange Pair 3 – White/Green & Green Pair 4 – White/Brown & Brown | |||
Jacket | Material | HDPE,PVC,LSOH | ||
External O.D. | 6.0mm | |||
Color | According to Requires | |||
Rip-cord | Yes | Drain Wire | Yes | |
packing | 305m/Pull Carton | 305m/Plastic Reel/Carton | 45/36Carton/Pallet | |
Applications:
1.Computer Network Cabling Project.
2.Broadband Network Communication.
3.Digital ISDN Network and ATM 155Mbps Network.
4.Ethernet Network.
5.Audio and Data Transmission.
Data Sheet:
Frequency (Mhz) | RL (dB) | ATT (dB/100) | NEXT (dB) | PS. NEXT(dB) | ACR (dB) | ELFEXT (dB) | PS. ELFEXT(dB) |
1 | 20 | 2 | 65.3 | 62.3 | 63.3 | 63.8 | 60.8 |
4 | 23 | 4.1 | 56.3 | 53.3 | 52.2 | 51.8 | 48.8 |
8 | 24.5 | 5.8 | 51.3 | 48.8 | 46.0 | 45.7 | 42.7 |
10 | 25 | 6.5 | 50.3 | 47.3 | 43.8 | 43.8 | 40.8 |
16 | 25 | 8.2 | 47.3 | 44.3 | 39.0 | 39.7 | 36.7 |
20 | 25 | 9.3 | 45.8 | 42.8 | 36.5 | 37.8 | 34.8 |
25 | 24.3 | 10.4 | 44.3 | 41.3 | 33.9 | 35.8 | 32.8 |
31.25 | 23.3 | 11.7 | 42.9 | 39.9 | 31.2 | 33.9 | 30.9 |
62.3 | 20.7 | 17 | 38.4 | 35.4 | 21.4 | 27.9 | 24.9 |
100 | 19 | 22 | 35.3 | 32.3 | 13.3 | 23.8 | 20.8 |
Our Cat5e Cables:
Our Factory:

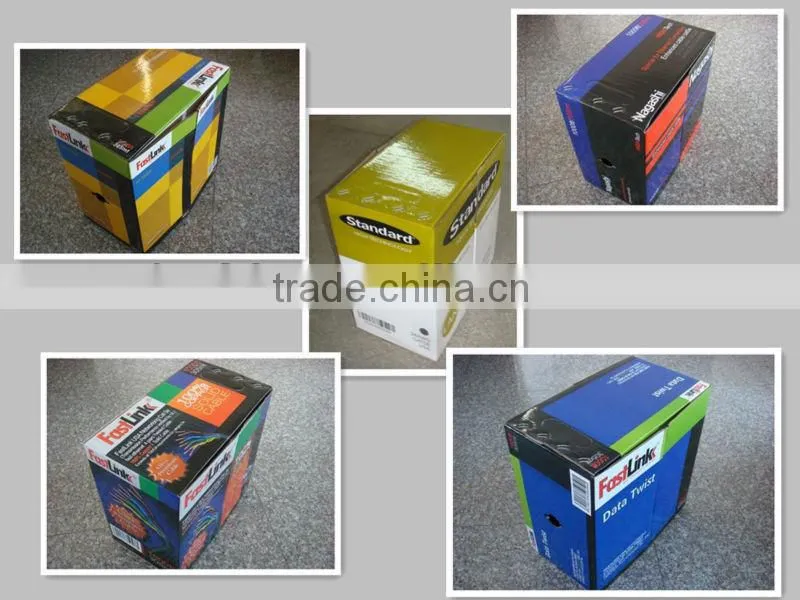

Packing:
1. 305m(1000feet) per roll, each roll in a inner easy pull color box, 2 boxes in a outer carton;
2. 500m or 1000m per wooden reel;
3. As per clients' requests
Our Exhitibion at Hong Kong:
Our Certificates:
:
