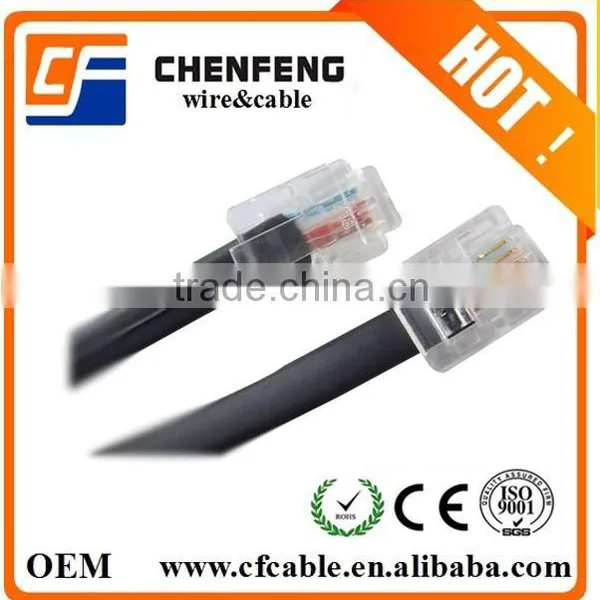

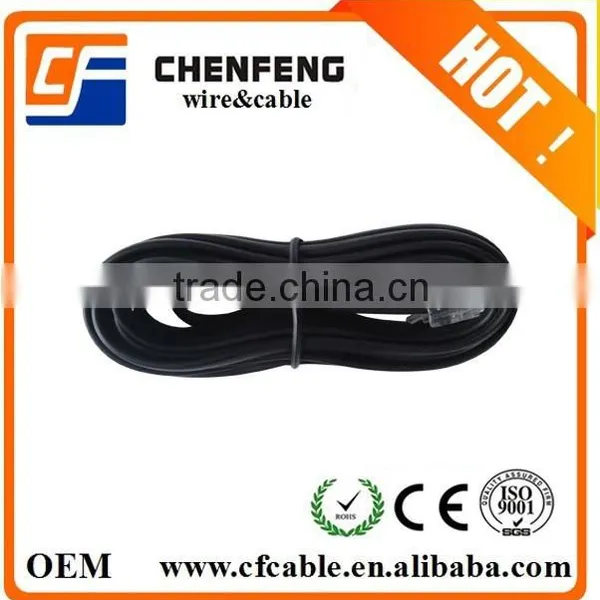

Telephone cable 4p4c 6p2c 6p4c with 4core cord

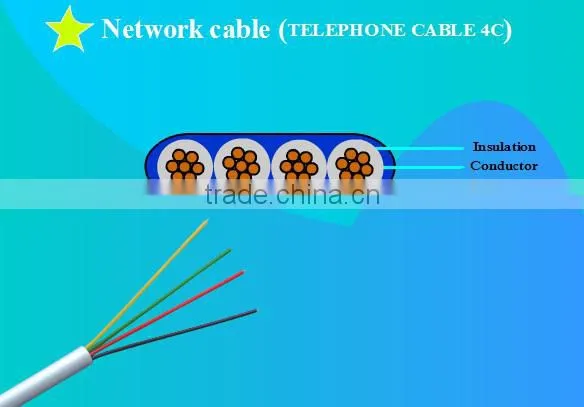

Specifications:
Category |
4 cores telephone cable |
|
Conductor |
Material |
BC/CCA/CCS |
O.D. |
0.40mm |
|
Insulation |
Material |
HDPE |
External O.D. |
0.95mm |
|
Shape |
Flat |
|
Jacket |
Material |
HDPE,PVC |
External O.D. |
2.4*4.8mm |
|
|
Color |
According to Requires |
packing |
As per clients' requests |
|
Applications:
1).Telephone Communication
2).Fax machine Connection
3).Door Bell Application
4).Alarm Machine
5).Other Voice and Signal Transmission Machine
Data Sheet:
|
Frequency (Mhz) |
Attenuation (dB) |
Impedance (ohm) |
Return Loss (dB) |
NEXT (dB/100m) |
PS. NEXT (dB/100m) |
1 |
2.6 |
100 |
12.0 |
41.3 |
41.3 |
4 |
5.6 |
100 |
12.0 |
32.3 |
32.3 |
8 |
8.5 |
100 |
12.0 |
27.8 |
27.8 |
10 |
9.7 |
100 |
12.0 |
26.3 |
26.3 |
16 |
13.1 |
100 |
12.0 |
23.3 |
23.3 |
Our Telephone Cables:
Established in 2002, our company is specialized in manufacturing network cable, telephone Cable, TV cable, audio cable, electrical wire and the like. We also offer OEM and ODM services.
Located in Huzhou City, Zhejiang Province which is between Shanghai and Hangzhou, we enjoy convenient transportation. We can load goods in Shanghai Port as well as Ningbo Port. Our factory covers 3,000 square meters totally, possessing more than 50 high skilled staff members, and 6 technical engineers who have been dedicated cable technics since our company was founded.
Our quality guarantee system has passed the evaluation of ISO9001 certification, and our all products are approved with CE certification and RoHS Inspection Report.
We are keen on building long-term solid relationships with all serious buyers, with sincerity and vigor. We welcome you to China to visit our factory and office.
Our Factory:
Our Exhitibion at Hong Kong:
Our Certificates:
1. Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 500m/roll.... Other lengths available according to client's request;
2. Inner packing: ---Wooden reel, Plastic reel, Paper reel
3. Outer packing: Carton, Pallet (Other packing available according to client's request. )
Q1: What is your main products?
A1: Our Main Products are different kinds of network cable,coaxial cable and telephone cable..
Q2: Are you a trading company or manufacture?
A2:CF cable is a professional manufacture,Thus,we can control your order from the first beginning to the end.
Q4:Which certificates you have?
A4: We have now ISO9001, CE,ROHS and fluke test.
Q5: What is the MOQ?
A5:Usually,the MOQ of our general network cable product is 10 KM,but every inquiry will
be considered individually.
Q6: Can you offer me a free sample?
Q6: Yes,we do,that is a start of business-i think. And you will only pay the cost of delivery,
which we will return it to you when you put the order.
