2016 RG6 Copper coaxial cable manufactury
Specifications:
Category |
RG6 |
|
Conductor |
Material |
Copper |
O.D. |
1.02mm |
|
Dielectric |
Material |
FPE,SFE |
External O.D. |
4.57mm±0.1mm |
|
Shield |
Al Foil |
|
Braid Coverage |
40%-95% BC/TC/AL |
|
Jacket |
Material |
HDPE,PVC |
External O.D. |
6.9mm±0.1mm |
|
Color |
According to Requires |
|
packing |
According to Requires |
|
Data Sheet:
Attenuation |
[@68o F. (20o C.)] |
|
Frequency (MHz) |
Maximum (dB/100 ft.) |
Maximum (dB/100 m) |
5 |
0.58 |
1.9 |
50 |
1.5 |
4.9 |
100 |
2 |
6.5 |
200 |
2.8 |
9.2 |
400 |
4.1 |
13.6 |
700 |
5.6 |
18.4 |
900 |
6.2 |
20.3 |
1000 |
6.5 |
21.4 |
1450 |
8 |
26.2 |
1800 |
8.5 |
27.9 |
2100 |
9.5 |
31.1 |
2250 |
10 |
34 |
3000 |
11.4 |
37.5 |

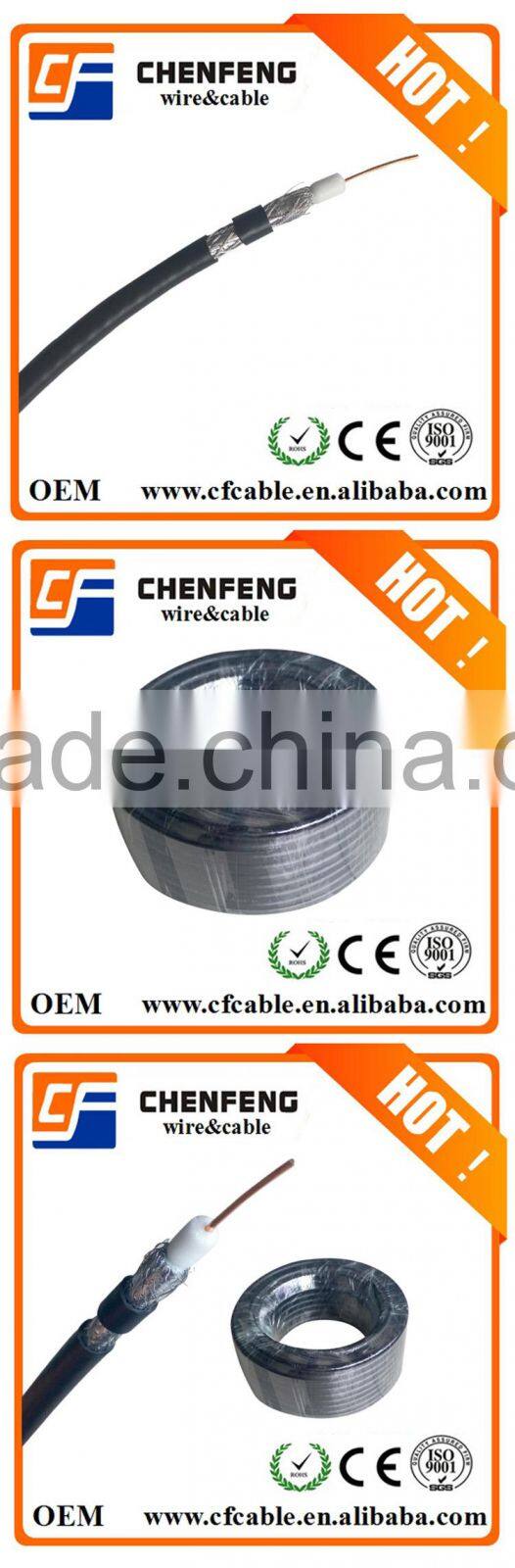

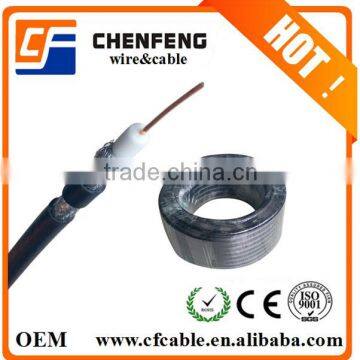

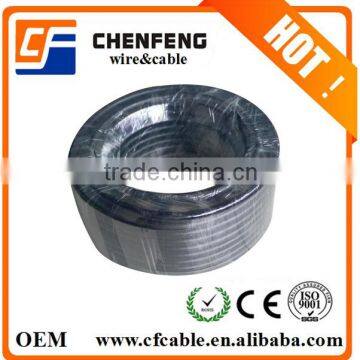

Our RG6 coaxial cable:
Our Certificates:
Q1: What is your main products?
A1: Our Main Products are different kinds of network cable,coaxial cable and telephone cable..
Q2: Are you a trading company or manufacture?
A2:CF cable is a professional manufacture,Thus,we can control your order from the first beginning to the end.
Q4:Which certificates you have?
A4: We have now ISO9001, CE,ROHS and fluke test.
Q5: What is the MOQ?
A5:Usually,the MOQ of our general network cable product is 10 KM,but every inquiry will
be considered individually.
Q6: Can you offer me a free sample?
Q6: Yes,we do,that is a start of business-i think. And you will only pay the cost of delivery,
which we will return it to you when you put the order.
Q7:Have RG6 coaxial cable 100% assembled well in stock?
Q6:No,all RG6 coaxial cable will be newly produced.
