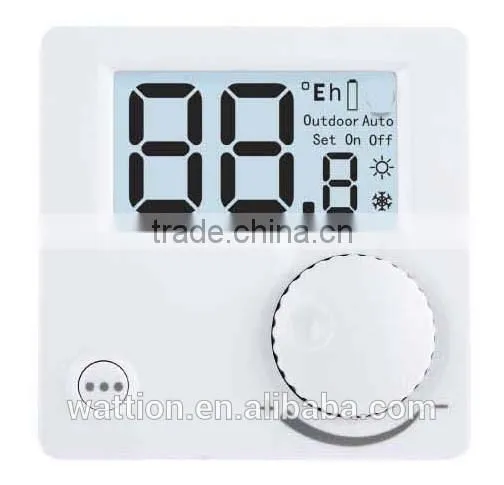

gas boiler thermostat

Feature:

1)    Heating control

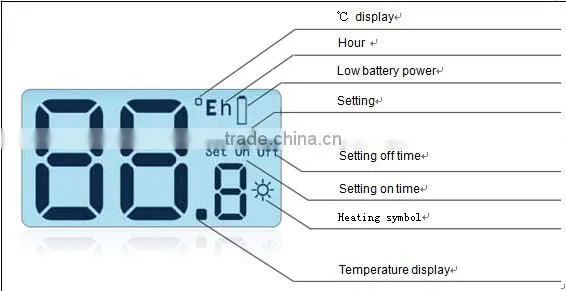

2)    Easy operation and intuitive diaplay

3)    Delay-time On/Off function

4)    The switch difference is adjustable

5)    Allowable to calibrate the temperature display

6) Antifreeze when turn off

Specification:

Power of transmitter 2X1.5V alkaline batteries

Contact capacity: 8(3.5)A/250V

Range of temperature display: 0~45℃

Range of temperature setting: 5~35℃

Display accuracy: 0.1 ℃

Probe sensor: NTC(100K) 1%

Protection level: IP20

Working environment temperature: 0~50℃

Dimension(mm): 86H*86W*12D

Installation: Wall mounted

Scope of Control Applications:

1. Control of wall-mounted boiler
2. Control of Thermal Actuator or Electromagnetic Valve
3. Control of water pump;
4. Ventilation control.
