Feature:
1) Heating Control
2) Simple Programming
3) Two Programs: Ex-work preset program and customer setting program
4) Switching Temperature Difference is adjustable
5) Allowable to calibrate the temperature display
6) 4 Running Modes: Auto mode, Customer Program Mode, Manual Mode, Antifreeze Mode
7) Control Application for Wall Mounted boiler, Thermal Actuator, Electromagnetic Valve and Water Pump.
Applicable Standards：
EN60730-1and its revisions
EN60730-2-9
Specification:
Power for thermostat: 2X1.5V AAA alkaline batteries.
Range of temperature adjustment: 5～35℃
Switching output: max. 8(3.5)A/230Vac
Dimension (mm): 86H*100W*20D
Title goes here.

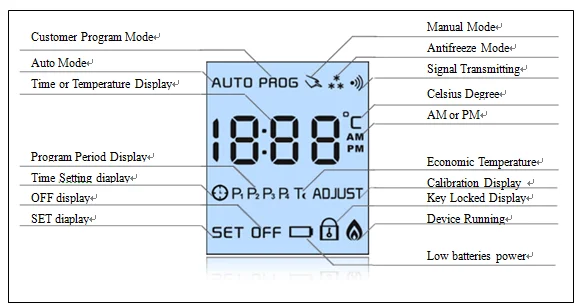

The symbols on LCD screen：
Title goes here.

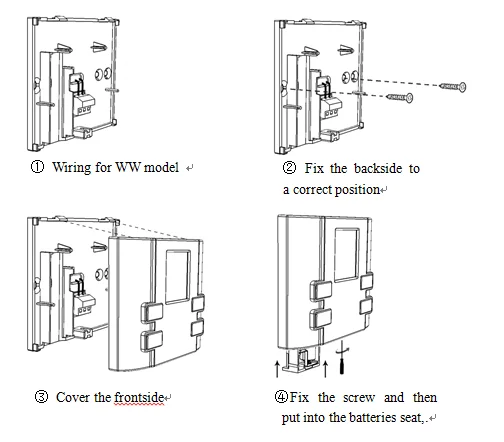

Installation:
Title goes here.

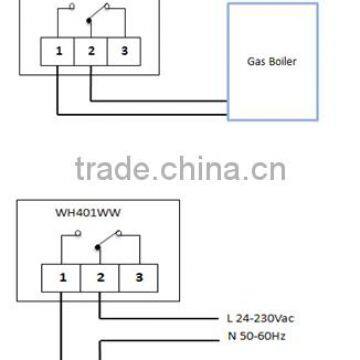

Wiring Diagram:
Title goes here.
1 pc in one colour box, and 54 pcs in one carton, The Carton dimension is 0.46X 0.33X 0.27 m.
Delivery time: 20-40 days afrer advanced payment.
