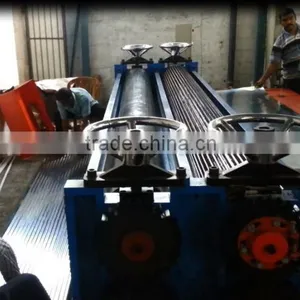

Small barrel corrugating machine
1 Technical data:
ITEMS |
TECHNICAL SPECIFICATIONS |
Main geared motor power |
15KW/AC400V/3ph/50Hz |
Weight of machine |
Approx 6.5 tons |
Machine installation dimension |
Approx L= 6.0 W = 3.5 H = 1.6m |
Material specifications |
0.11 MM TO 0.35 MM MATERIAL TO BE CORRUGATED : FULL HARD GALVANIZED SHEETS |
Max length of corrugated sheet |
14 feet |
2.Features :
# Method of feeding material : Manual feeding sheet by sheet. Guide for sheet
input :Welded structures with stoppers for setting width of sheets
# Corrugating roll : Barrel made of S45 steel. Length 5000mm.Teeth made of steel1055 grade
# Pitch adjust roll : Barrel made of S45 steel. Length 5000mm
# Up and down device for corrugating and Pitch adjust rolls. Screwx4 adjusted by manual handles
# Guide table for input sheets : Welded steel plate.
# Speed : 10-15 STROKES PER MINUTE
# Feeding sheets : 1-3 sheets/time for thickness under 0.25mm
