2014 New Design Wireless-N WiFi Repeater Extender WiFi Router WiFi Signal Repeater

Specifications

Wireless-N WiFi Repeater
Ralink RT5350 Chipset
4M Flash 32M Ram
Wan + Lan + USB
CE and FCC

Model: WD-R601U

2014 New Design Wireless-N WiFi Repeater Extender WiFi Router WiFi Signal  Repeater



Pictures:



Description:

    The  WD-R601U Travel Wireless WiFi Repeater is small enough to carry with you while traveling and sets up easily. Use it to easily share an Internet connection or connect to an existing wired network in conference rooms, hotel rooms, or anywhere a Wi-Fi network is needed. Support for WPA/WPA2-PSK encryption ensures that you will be able to use the best possible encryption regardless of your client devices. The compact and light weight A5 is the perfect companion for all your business and personal travels. This MiNi Wireless Router can provide the AP, WDS, Bridge Repeater Mode. It is very suitable for the iphone, ipad, android items.



Features:

  * 802.11n wireless standard, 150Mbps wireless speed

  * Share a 3G mobile connection, compatible with UMTS/HSPA/EVDO 3G USB modems

  * Plug and Play, no configuration, compact and portable, suit for Business trip or Home

  *Good compatible with smart phones, tablet computers, notebook/netbook and other equipment

  * Working modes: AP (access point) / Client (wireless client) / Repeater (radio relay) / Bridge (wireless bridge)/ Router    (wireless router)/ 3G Wifi Share

  * Provide a LAN&WAN wired interface, automatically switched to WAN port under wireless routing mode

  * Provides 1 USB 2.0 interface share 3G Modem



Specifications:

Hardware Features
WIRELESS STANDARDS	IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u
INTERFACE	1x 10/100Mbps LAN PORT(Auto MDI/MDIX) 1x 10/100Mbps WAN (Auto MDI/MDIX) 1x USB2.0 Port for share the 3G Modem
BUTTON	Reset Button WDS Button
POWER SUPPLY	100-240V 50/60Hz 0.2A(US type)
ANTENNA	Built-in omnidirectional antenna
DIMENTIONS( W x D x H )	13.0*8.5*6.4cm
Wireless Features
FREQUENCY	2.4-2.4835GHz
SIGNAL RATE	11n: Up to 150Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
WIRELESS TRANSMIT POWER	<20dBm(EIRP)
WORKING MODE	AP Router Repeater
WIRELESS FUNCTIONS	Enable/Disable Wireless Radio, SSID Switch, Channel Switch 1-13, Band Switch 20MHz/40MHz/Auto, Wireless Mode 11n only/11 bgn mixed/11 bg mixed/11g only/11b only
WIRELESS SECURITY	64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
Software Features
WAN TYPE	Dynamic IP/Static IP/PPPoE
DHCP	Server, Client, DHCP Client List, Address Reservation
PORT FORWARDING	Virtual Server,Port Triggering, UPnP, DMZ
QUALITY OF SERVICE	WMM, Bandwidth Control
DYNAMIC DNS	DynDns, Comexe, NO-IP
VPN PASS-THROUGH	PPTP, L2TP, IPSec (ESP Head)
ACCESS CONTROL	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
FIREWALL SECURITY	DoS, SPI Firewall      IP Address Filter/MAC Address Filter/Domain Filter  IP and MAC Address Binding
MANAGEMENT	Flow Control Access Control Local Management Remote Management Syetem Log
Others
PACKAGE CONTENTS	Wireless Rotuer Quick Installation Guide
SYSTEM REQUIREMENT	Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIXor Linux.
ENVIRONMENT	Operating Temperature: 0 C ~40  C (32 F~104F) Storage Temperature: -40C~70C(-40F~158F) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing



Interfaces:

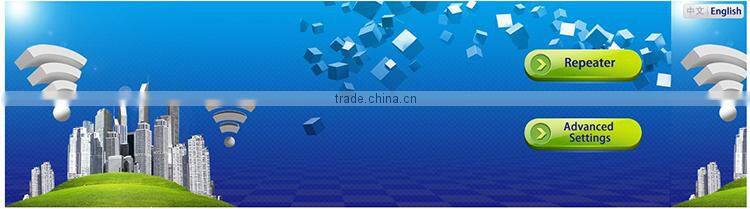

1. Main interface_WiFi Repeater

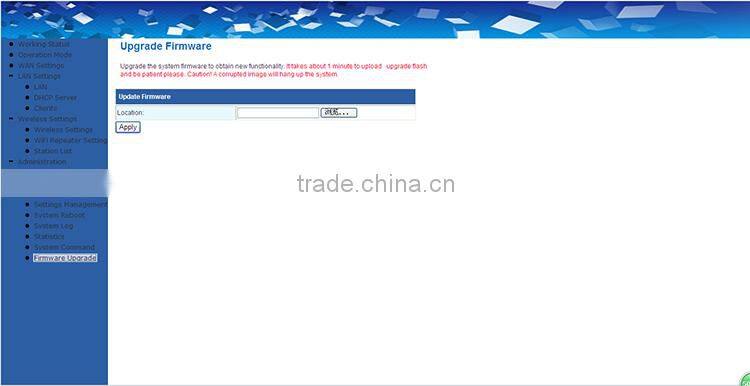

2. Firmware Upgrade_We have a 3G version Firmware For Option



Package contains:

1* Mini 150Mbps WiFi Repeater Router

1* English User Manual
