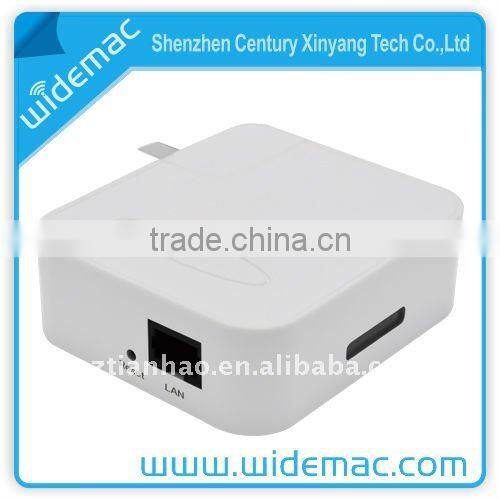

150Mbps Mini Wireless Lan Router(Ralink 5350 Chipset)

Hardware Features

WIRELESS STANDARDS

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3, IEEE 802.3u

INTERFACE

1x 10/100Mbps WAN/LAN PORT(Auto MDI/MDIX)

BUTTON

Reset Button

POWER SUPPLY

100-240V 50/60Hz 0.2A(US type)

ANTENNA

Built-in Omni-directional antenna

DIMENTIONS( W x D x H )

81 x 71 x 28 mm

Wireless Features

FREQUENCY

2.4-2.4835GHz

SIGNAL RATE

11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)                                       11n: Up to 150Mbps(dynamic)

WIRELESS TRANSMIT POWER

<20dBm(EIRP)

WORKING MODE

 AP, Router, Repeater, Bridge, Client.

WIRELESS FUNCTIONS

Enable/Disable Wireless Radio, SSID Switch, Channel Switch 1-13, Band Switch 20MHz/40MHz/Auto, Wireless Mode 11n only/11 bgn mixed/11 bg mixed/11g only/11b only

WIRELESS SECURITY

64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

Software Features

WAN TYPE

Dynamic IP/Static IP/PPPoE

DHCP

Server, Client, DHCP Client List,

Address Reservation

PORT FORWARDING

Virtual Server, Port Triggering, UPnP, DMZ

QUALITY OF SERVICE

WMM, Bandwidth Control

DYNAMIC DNS

DynDns, Comexe, NO-IP

VPN PASS-THROUGH

PPTP, L2TP, IPSec (ESP Head)

ACCESS CONTROL

Parental Control, Local Management Control, Host List, Access Schedule, Rule Management

FIREWALL SECURITY

DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding

MANAGEMENT

Flow Control
Access Control
Local Management
Remote Management
Syetem Log

Others

CERTIFICATION

FCC CE

PACKAGE CONTENTS

Wireless Rotuer
Quick Installation Guide

SYSTEM REQUIREMENT

Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIXor Linux.

ENVIRONMENT

Operating Temperature: 0 C ~40  C (32 F~104F)

Storage Temperature: -40C~70C(-40F~158F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
