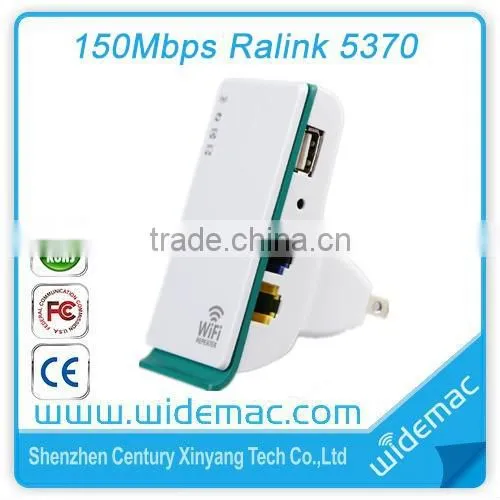

3G Portable WIFI Router /WiFi Signal Booster Router WiFi Repeater 150Mbps(WD-601U)

150Mbps 3G Wireless-N Wifi Repeater AP WLAN Network Router Range Extender 802.11N

Model: WD-R601U

Phone: +86 186 8052 7431 |Skype ID:  live:wifi2  |QQ:1771612431

Discription:

This WiFi Mini Repeater supports 802.11 N wireless transmission standards, and is backward compatible with IEEE802.11 b/g standards. It supports data rate up to 300 Mbps. It is mainly used for providing free WiFi service in large area such as factory, community, street... etc.

Main  Specification :

N Speed
Delivers up to150Mbpswireless speed, 4X faster than ordinary wireless G devices

Backward-Compatible

Small enough to put into your pocket and take on the road  to share the Internet

Better Wireless Range

Deliver better wireless performance and faster file transfers based on 802.11n technology

Multiple Operating Modes

SupportsAP,Repeater modes, Smart Mode to enable various wireless applications

Advanced Security

Secure your wireless network using advanced WPA/WPA2-PSK encryption

Easy Setup

Plug it into an electrical outlet, connect to your DSL or cable modem, an existing Ethernet network or a hotspot

Hardware Features
Standards IEEE 802.3/802.3u/802.3x
IEEE802.11b/g/n
Band 2.4GHz
Wireless Rate 150Mbps
Interface & Speed 1 x 10/100Mbps Auto-negotiation RJ45 WAN port (Auto MDI/MDIX)
Button Reset/WDS
Antenna Built-in PCBA
Power AC:100~240V;50/60Hz
3.3V 1.5A
Dimensions (LxWxH,mm) 71*28 *81

Basic Features Channel 11 channels
Channel Width 20Mhz, 40Mhz
Transmit Power 11N:14dBm 11G:14dBm 11B:18dBm
Working Modes Router
Wireless Security WEP, WPA-PSK, and WPA2-PSK
Software Features
Internet Connection Type PPPoE, dynamic IP, static IP
DHCP DHCP Server
Security MAC address/URL/port based filters
Bandwidth Control WMM
DDNS DNS

Interface:

Others
Operating Enviroment Operating Temperature 0°C ~ 40°C
 Storage Temperature -40oC ~ 70oC
 Operating Humidity 10% ~ 90% RH non-condensing
 Storage Humidity 5% ~ 90% RH non-condensing
Minimum System Requirement Computer with:
Internet Explorer 5.5 or Firefox 1.0 Higher
Wireless Network Adapter
Package Contents A5 150Mbps Travel Wireless Router (English Firmware)
English Quick Installation Guide (Send via email)
Certificates CE/FCC/RoHS

Contents:

1* 150Mbps Router
1* Quick Installation Guide

Pictures:

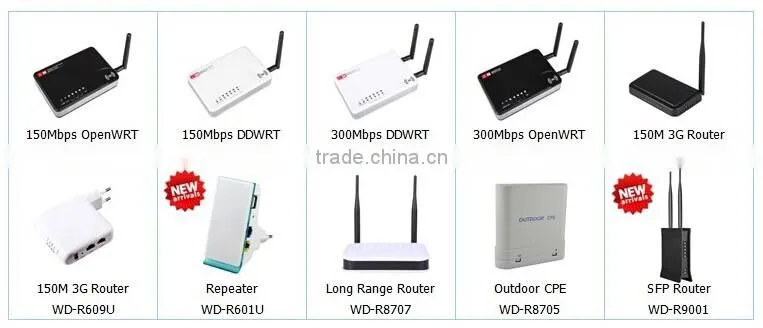

Recommendation:
