Help CenterCheap Wind Generator on Grid and Battery Charge Integrated Controller 5kw
Related Products
Technical Specifications | ||||||
Model |
V1 |
Airforce 1.5 |
Airforce 2.0 |
V1.8S |
V1.8 |

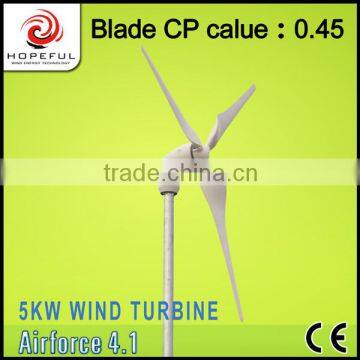

Airforce 4.1 |
Rated output power |
300W | 600W |
1KW |
1KW | 1.5KW |
5KW |
Max.output power |
450W | 750W |
1.35KW |
1.5KW | 1.8KW |
5.1kW |
Voltage |
12/24vdc | 12/24vdc |
24/48vdc |
48vdc | 48vdc |
48/110/240/380vdc |
Rated wind speed |
12m/s |
|||||
d speed |
20m/s | |||||
Survival wind speed |
60m/s |
|||||
Start-up wind speed |
1.5m/s | 2.5m/s |
2.5m/s |
1.5m/s | 1.5m/s |
1.5m/s |
Cut-in wind speed |
2m/s | 3m/s |
3m/s |
2m/s | 2m/s |
2m/s |
Rated rotational speed |
250 | 810 |
860 |
200 | 180 |
400rpm |
Max. rotational speed |
300 | 920 |
1150 |
220 | 200 |
450rpm |
No. of blades |
1 | 3 |
3 |
1 | 1 |
3 |
Rotor diameter |
0.9m | 1.5m |
2m |
1.5m | 1.5m |
4.1m |
Blade length |
1m | 0.68m |
0.95m |
1.8m | 1.8m |
2.02m |
Blade material |
FRP |
|||||
Generator |
3 phases PM generator |
|||||
Braking system |
Electromagnetic braking control system |
|||||
Type |
Full | up rotor |
up rotor |
Full | Full |
Downwind rotor |
Yaw control |
None | passive |
passive |
none | none |
passive |
Total weight |
30kg | 20kg |
30kg |
110kg | 110kg |
120kg |
Warranty |
whole system-2 years |
|||||
Controller |
Full-automatic control |
|||||
Tower |
4m | 6m |
8m |
10m | 10m |
12m |

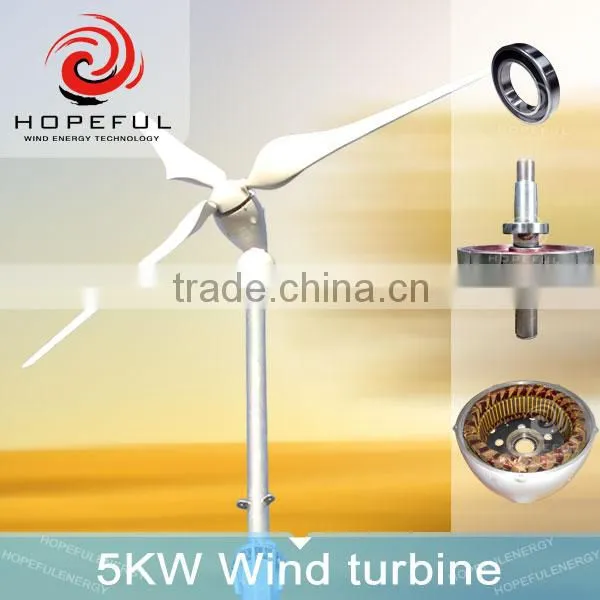

Product advantages
»Dual,automatic emergency braking system
»Sealed Sweden SKF bearing
» Waterproofing
» Unique Anti-Vibration design
» Effcient Aero-dynamic design
» High strength, corrosion resisting aluminium alloy
» Unique neodymium iron boron permanent magetic material
» Low noise level
Main characteristic
» Adjustable blade angle and blade design to achieve maximized effciency
» Low start-up wind speed only 1.5m/s
» Large range of wind speed usability (2m/s-20m/s)
» Cp value about 0.43
» All-over automatic system
Quantity guarantee
» Two-year limited guarante
» Highest quality manufacturing standards (ISO9001)
» Wide range of temperature tolerance(-50 °C -65 °C )
» High salt fog,dust and sand resistance
» Strong wind resistance and high survival wind speed
» Dural materials and components
Easy transportation and installation
» Light and compact size
» Intuitive online installation guide
» Wide installation and maintenance network worldwide
» Perfect after-sales service system
Certificate of conformity:
Project cases:
