Axis Wind Generator Kit

FOB Price

US$ 380 - 6,500 / Unit

1 Unit(Min. Order)

Port zhuhai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Hopeful
Model Number	Airforce		Type	Other, Wind Power Generator, Generator

Product Description

Technical Specifications

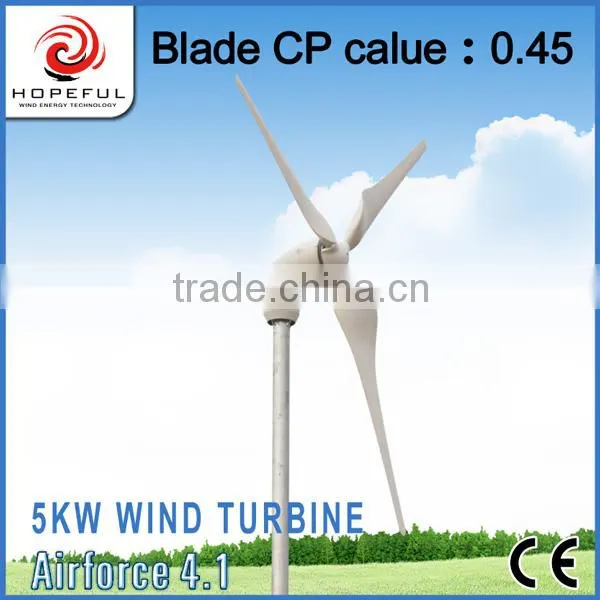

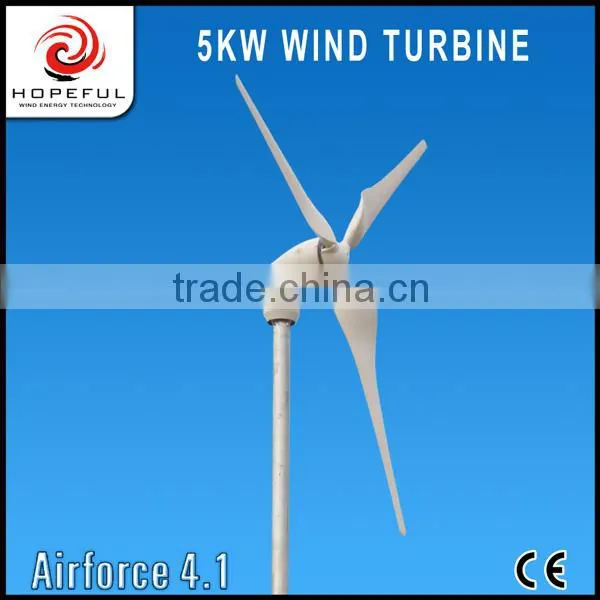

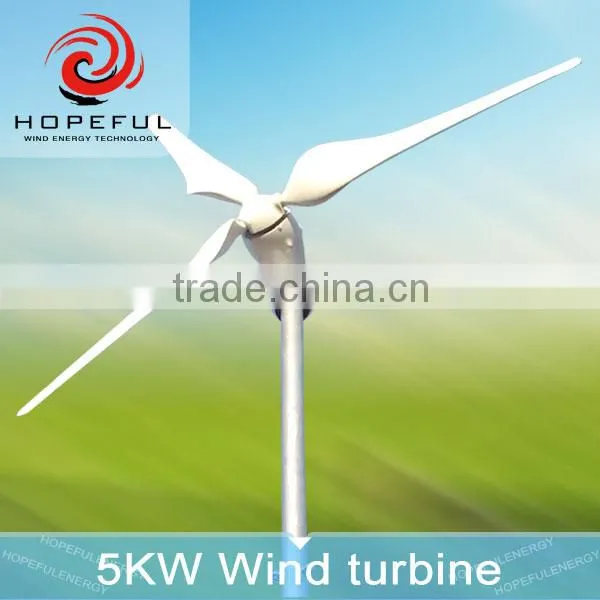

Model	V1	Airforce 1.5	Airforce 2.0	V1.8S	V1.8	Airforce 4.1
Rated output power	300W	600W	1KW	1KW	1.5KW	5KW
Max.output power	450W	750W	1.35KW	1.5KW	1.8KW	5.1kW
Voltage	12/24vdc	12/24vdc	24/48vdc	48vdc	48vdc	48/110/240/380vdc
Rated wind speed	12m/s
d speed	20m/s
Survival wind speed	60m/s
Start-up wind speed	1.5m/s	2.5m/s	2.5m/s	1.5m/s	1.5m/s	1.5m/s
Cut-in wind speed	2m/s	3m/s	3m/s	2m/s	2m/s	2m/s
Rated rotational speed	250	810	860	200	180	400rpm
Max. rotational speed	300	920	1150	220	200	450rpm
No. of blades	1	3	3	1	1	3
Rotor diameter	0.9m	1.5m	2m	1.5m	1.5m	4.1m
Blade length	1m	0.68m	0.95m	1.8m	1.8m	2.02m
Blade material	FRP
Generator	3 phases PM generator
Braking system	Electromagnetic braking control system
Type	Full	up rotor	up rotor	Full	Full	Downwind rotor
Yaw control	None	passive	passive	none	none	passive
Total weight	30kg	20kg	30kg	110kg	110kg	120kg
Warranty	whole system-2 years
Controller	Full-automatic control
Tower	4m	6m	8m	10m	10m	12m

Product advantages

»Dual,automatic emergency braking system

»Sealed Sweden SKF bearing

» Waterproofing

» Unique Anti-Vibration design

» Effcient Aero-dynamic design

» High strength, corrosion resisting aluminium alloy

» Unique neodymium iron boron permanent magetic material

» Low noise level

Main characteristic

» Adjustable blade angle and blade design to achieve maximized effciency

» Low start-up wind speed only 1.5m/s

» Large range of wind speed usability (2m/s-20m/s)

» Cp value about 0.43

» All-over automatic system

Quantity guarantee

» Two-year limited guarante

» Highest quality manufacturing standards (ISO9001)

» Wide range of temperature tolerance(-50 °C -65 °C )

» High salt fog,dust and sand resistance

» Strong wind resistance and high survival wind speed

» Dural materials and components

Easy transportation and installation

» Light and compact size

» Intuitive online installation guide

» Wide installation and maintenance network worldwide

» Perfect after-sales service system

Certificate of conformity:

Project cases:
