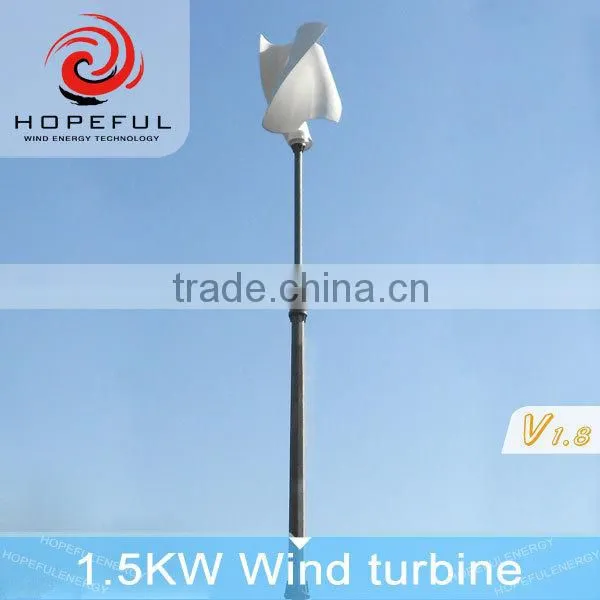

Help Center1.5kw Vertical Axis Permanent Magnet Wind Turbine System
Related Products
-
300w Vertical Aixs Wind Turbine High Efficiency for Street Light UseUS$ 385 - 395MOQ: 1 Set -
1.5kw Vertical Axiswind Turbine Government Environmental Project UseUS$ 8,888 - 10,000MOQ: 1 Piece
-
300w Vertical Axis Permanent Magnet Wind Turbine GeneratorUS$ 385 - 390MOQ: 1 Set
-
1.5kw Vertical Axis Wind Generator Permanent Magnet Wind TurbineUS$ 3,884 - 5,000MOQ: 1 Piece
-
Maglev Vertical Axis Wind Turbine GeneratorUS$ 3,345 - 5,753MOQ: 1 Unit

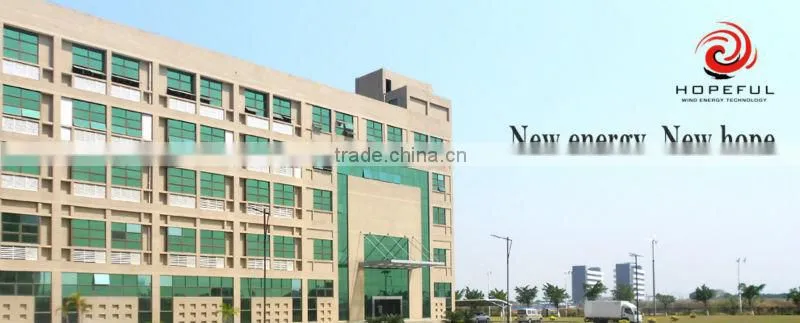

Hopeful Wind Energy Technology Co., Ltd. of China specialized in designing and manufacturing small wind turbine,founded in 2003.We focus on manufacturing advanced small wind turbines and related equipments with superior materials. All of the products have passed ISO9001 and Certificate of conformity. We offer VAWT(100w--1000w), HAWT(100w to 300kw) and custom design wind & solar hybrid system.

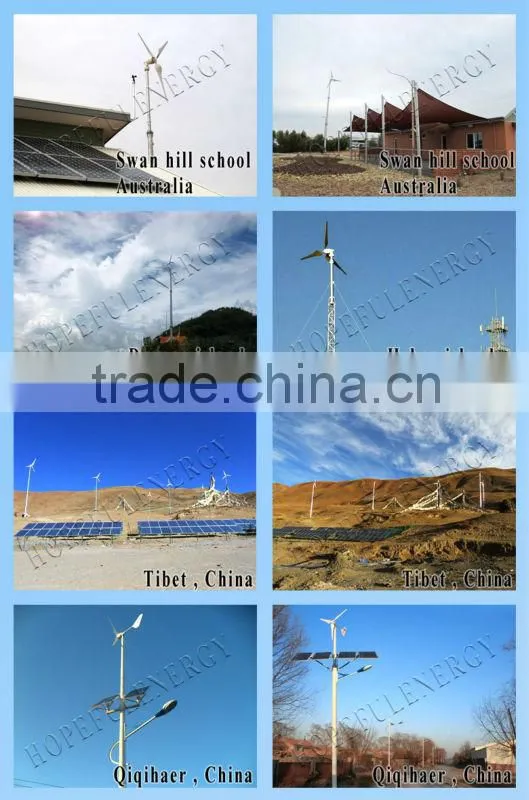

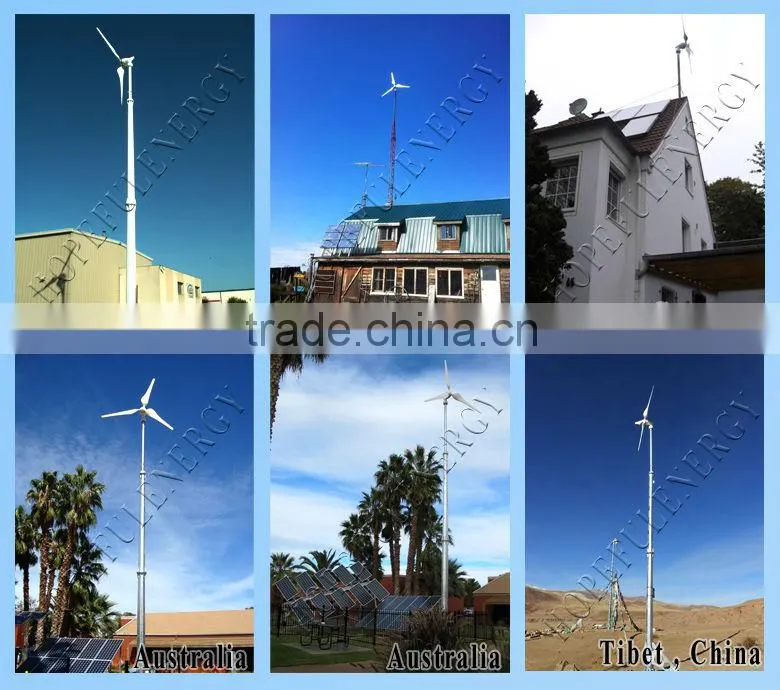

By now our products have been installed in Europe, America, Mid East and all around the world.
You are welcomed to visit our website to get more information.
Product advantages:

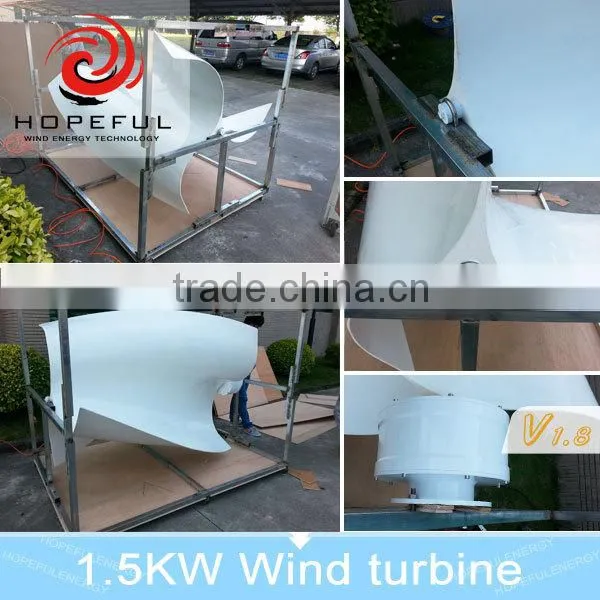

1.Disk generator, without iron core, low starting torque

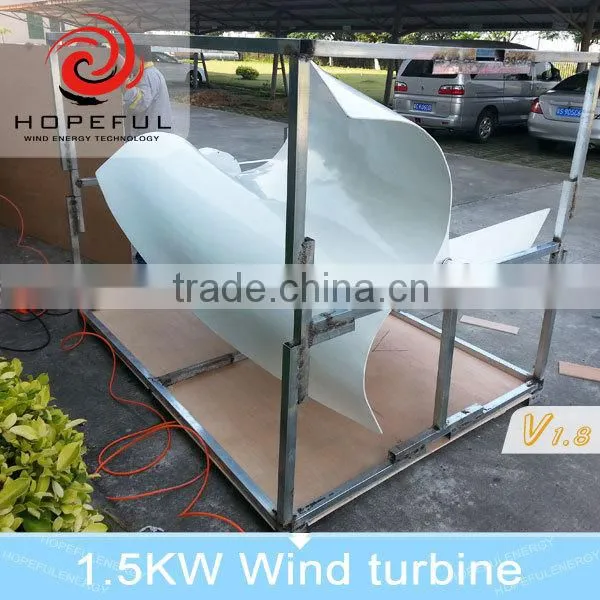

2.S type design ,attractive design
3.High strength, corrosion resisting aluminum alloy
4.Low noise
5.High-performance neodymium iron boron permanent magnetic material
6.High moisture , salt fog, dust and sand resistance
Product performance:
1.Low star-up wind speed ONLY 1.5 m/s
2.No restriction to the wind direction
3.Wide range of wind speed usability (3.5m/s-25m/s)
4.Cp value up to 0.4
5.All-over automatic control system
Quality guarantee:
1.Two-year limited guarantee

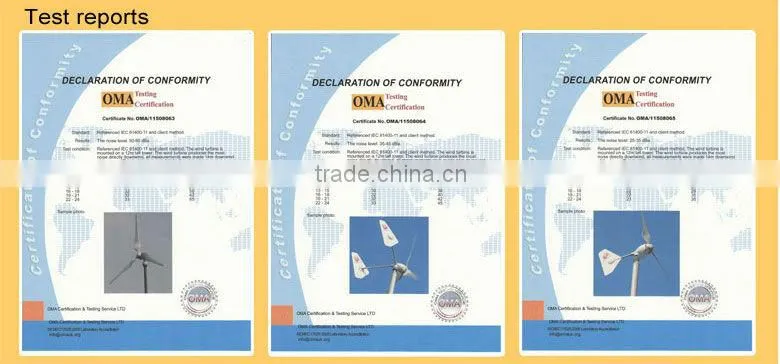

2.ISO9001 quality management system
3.Operation temperature: -30℃-65℃

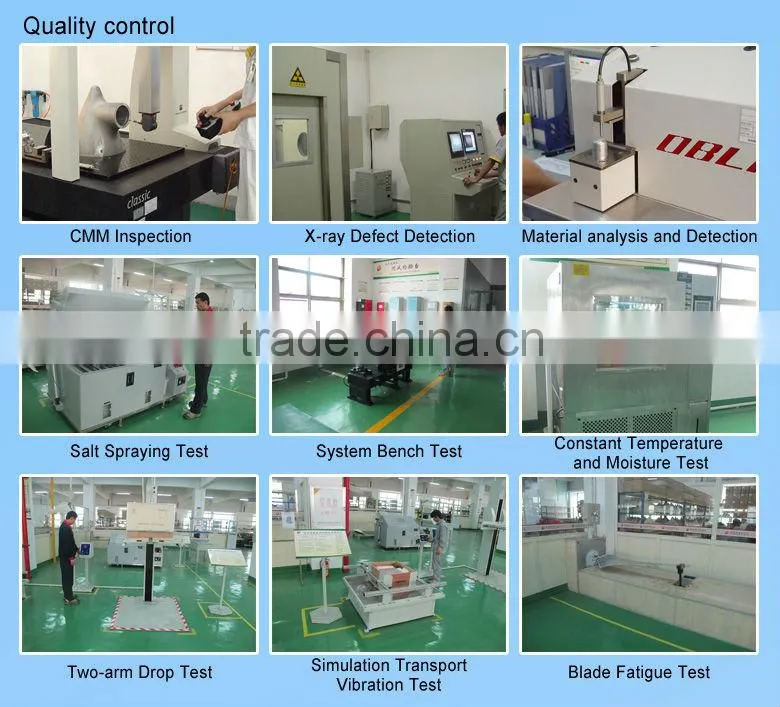

4.High standard test of corrosion and sand resistance
Easy transportation and installation:
1.Light and compact size
2.Intuitive online installation guides
3.Wide installation and maintenance network worldwide
4.Perfect after-sales service system

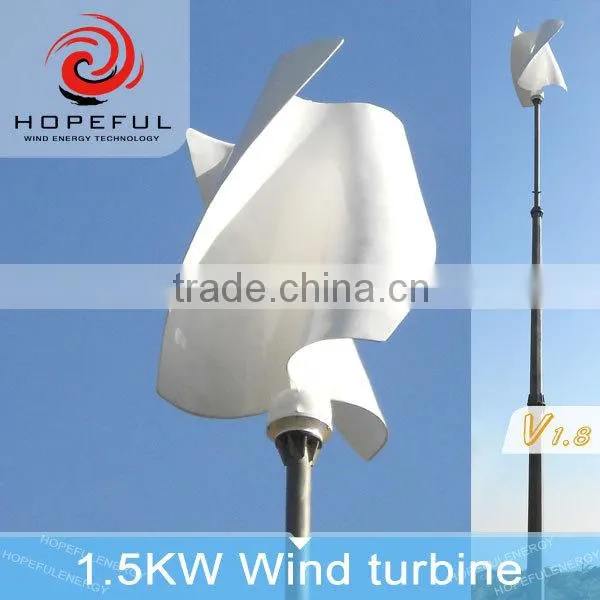

Technical Specifications:
Model |
V1.8 |
Rated output power |
1.5kw |
Max. output power |
1.8 kw |
Rated Voltage |
180Vac |
Rated wind speed |
11 m/s |
Survival wind speed |
65 m/s |
Start-up wind speed |
1.5m/s |
Cut-in wind speed |
2 m/s |
Rated rotational speed |
180 rpm |
Max. rotational speed |
200 rpm |
No. of blades |
1 |
Rotor diameter |
1.5 m |
Blade length |
1.8 m |
Blade material |
FRP |
Generator |
Disk generator |
Total weight |
110 kg |
Warranty |
Whole system-2 years |
Tower |
10m (optional) |
Our Product Line
200w ---300kw wind turbine ,On-grid or Off-grid wind & solar & Diesel & Government power hybrid system
Use for Housing use ,public lighting system ,communication base station ,sewage disposal station,toll station
and Controller and indicating system ( traffic signal ,road condition signal ,security surveillance and forest fire
prevention ) and other project .
Any interests and questions, please send us inquiry or call us.
Website:
Skype:sales06_hopeful QQ: 568386513
