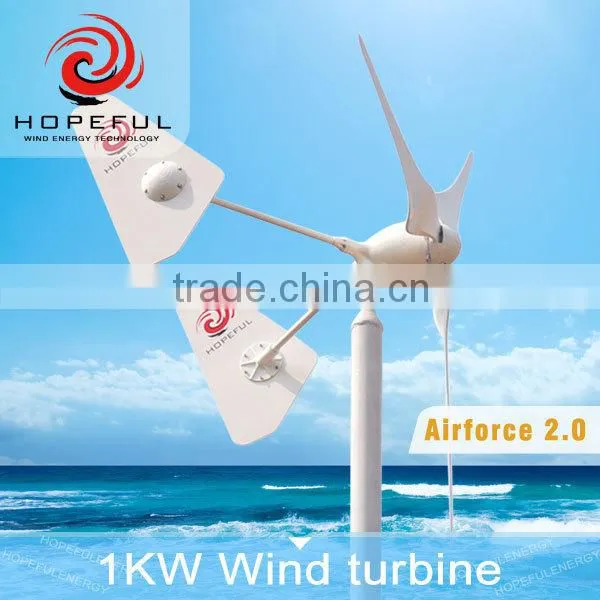

Electrical green power wind turbines 1kw 48v maglev wind generator turbine windmill for selling
Product advantages
•Equipped with famous brand sealed bearing
• Waterproofing
• Efficient Aero-dynamic design
• Unique twin tails, better wind orientation
• High strength, corrosion resisting aluminium alloy
• Unique neodymium iron boron permanent magnetic material
• Low noise level
Main characteristics
•Low start-up wind speed ONLY 3M/S
• Wide range of wind speed usability(3.5m/s—25m/s)
•Cp value up to 0.43
•All-over automatic system
Quality guarantee
•2-year whole system quality guarantee
•Highest quality manufacturing standards(ISO9001)
•Wide range of temperature tolerance(-20°C—65°C)
•High salt fog, dust and sand resistance
•Strong wind resistance and high survival wind speed
•Durable materials and components
Easy transportation and installation
•Light and compact size
•Intuitive online installation guides
•Wide installation and maintenance networkworldwide
•Perfect after-sales service system
Rated output power |
1 kw |
Rotor diameter |
2.0 m |
Max. output power |
1.35 kw |
Blade length |
0.95 m |
Voltage |
48Vdc |
Blade material |
Nylon & glass fiber |
Rated wind speed |
12 m/s |
Generator |
3 phases PM generator |
Max. wind speed |
25 m/s |
Braking system |
Electromagnetic braking control system |
Survival wind speed |
60 m/s |
Type |
Upwind rotor |
Start-up wind speed |
3 m/s |
Yaw control |
passive |
Cut-in wind speed |
3.5 m/s |
Total weight |
30 kg |
Rated rotational speed |
860 rpm |
Warranty |
Whole system-2 years |
Max. rotational speed |
1150 rpm |
Controller |
Full-automatic control |
No. of blades |
3 |
Tower |
8 m (optional) |
