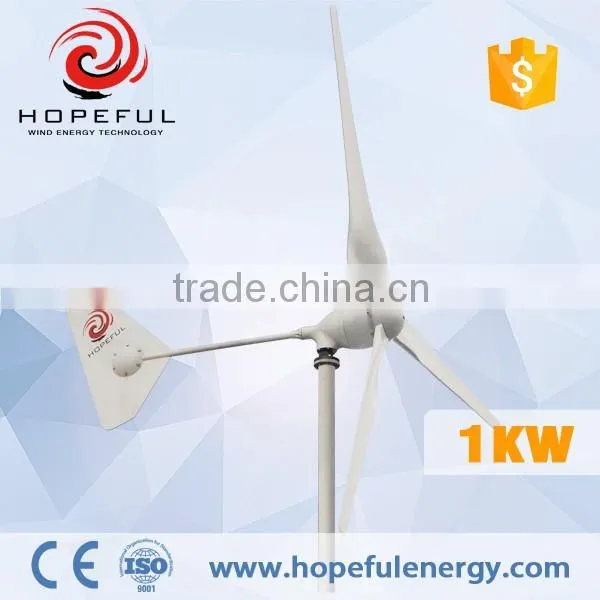

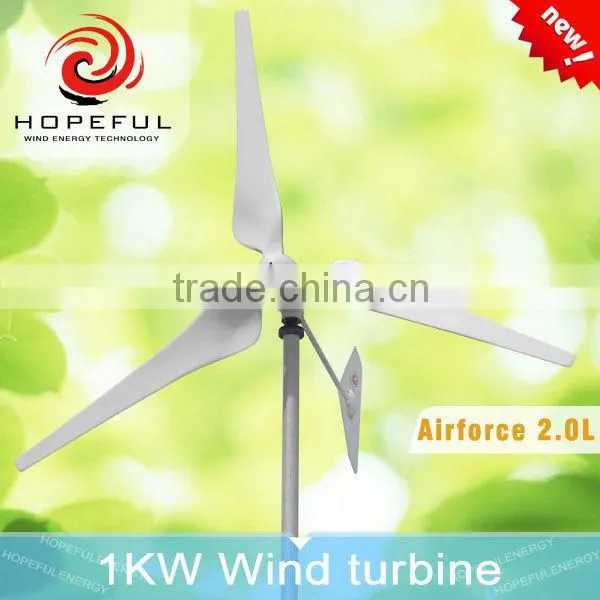

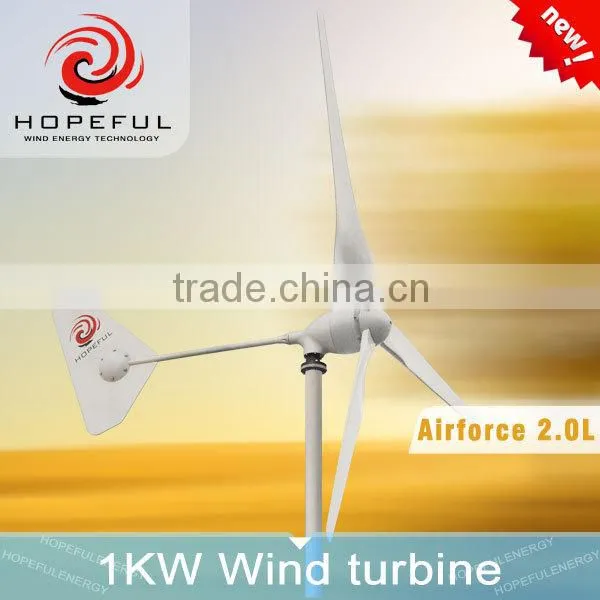

Help Center1kw Horizontal Axis Wind Turbine Alternator With Single Tail
Related Products
Hopeful Wind Energy Technology Co., Ltd. of China specialized in designing and manufacturing small wind turbine,which is founded in 2003.We focus on manufacturing advanced small wind turbines and related equipments with superior materials.
We have 1KW vertical axis wind turbine,1KW,5KW,10KW,,20KW wind turbine and so on.
All of the products have passed ISO9001 and Certificate of conformity.By now our products have been exported to Europe, America and other countries.
You are welcomed to visit our website to get more information about our products.
Product advantages:
Equipped with famous brand sealed bearing
Waterproofing
Efficient Aero-dynamic design
Unique twin tails, better wind orientation
High strength, corrosion resisting aluminium alloy
Unique neodymium iron boron permanent magnetic material
Low noise level
Main characteristics:
Low start-up wind speed ONLY 3M/S
Wide range of wind speed usability(3.5m/s—25m/s)
Cp value up to 0.43
All-over automatic system
Quality guarantee:
2-year whole system quality guarantee
Highest quality manufacturing standards(ISO9001)
Wide range of temperature tolerance(-20°C—65°C)
High salt fog, dust and sand resistance
Strong wind resistance and high survival wind speed
Durable materials and components
Easy transportation and installation:
Light and compact size
Intuitive online installation guides
Wide installation and maintenance networkworldwide
Perfect after-sales service system
Technical Specifications | |
Model |
Airforce 2.0 |
Rated output power |
1 kW |
Max. output power |
1.35 kW |
Rated Voltage |
24 Vdc |
Rated wind speed |
12 m/s |
Max. wind speed |
25 m/s |
Survial wind speed |
60 m/s |
Start-up wind speed |
3 m/s |
Cut-in wind speed |
3.5 m/s |
Rated rotational speed |
860 rpm |
Max. rotational speed |
1150 rpm |
No. of blades |
3 |
Rotor diameter |
2.0 m |
Blade length |
0.95 m |
Blade material |
Nylon & Glass fiber |
Generator |
3 phases PM generator |
Braking system |
Electromagnetic braking control system |
Type |
Upwind rotor |
Yaw control |
Passive |
Total weight |
30 kg |
Warranty |
Whole system-2 years |
Controller |
Full-automatic control |
Tower |
8m(optional) |
Our Product Line
200w ---300kw wind turbine ,On-grid or Off-grid wind & solar & Diesel & Government power hybrid system
Use for Housing use ,public lighting system ,communication base station ,sewage disposal station,toll station and Controller and indicating system ( traffic signal ,road condition signal ,security surveillance and forest fire prevention ) and other project .
OEM service
Website: www.hopefulenergy.com
Skype:sales05_hopeful QQ: 568386513 Wechat: 568386513
Office number :+86 756 3819 866 to Steve
