Specifications

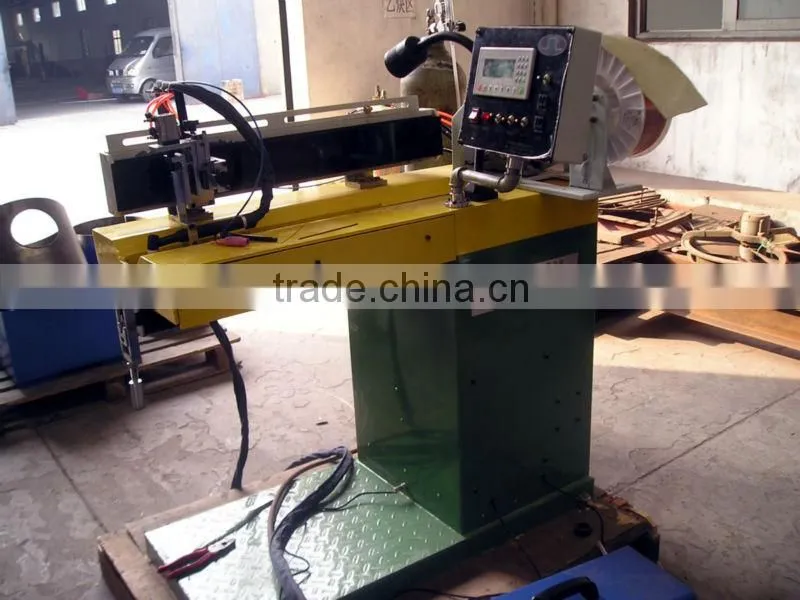

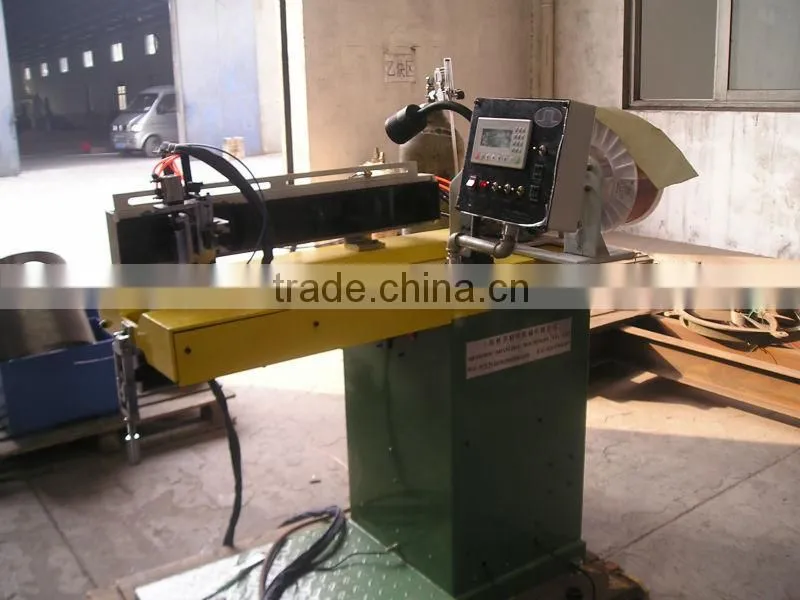

Automatic Butt Roll Seam Welding Machine Tank Welder1.TIG MIG Plasma available
2.Single welding and double sides forming
1. Description:

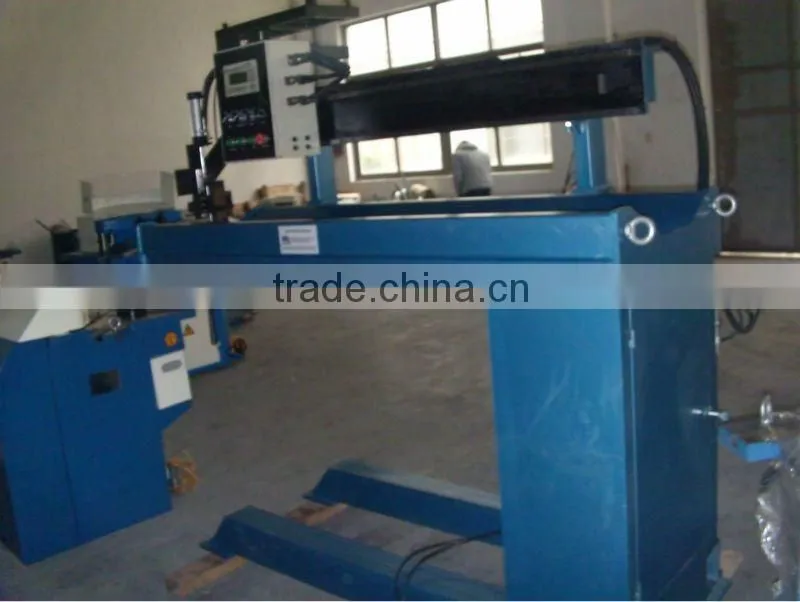

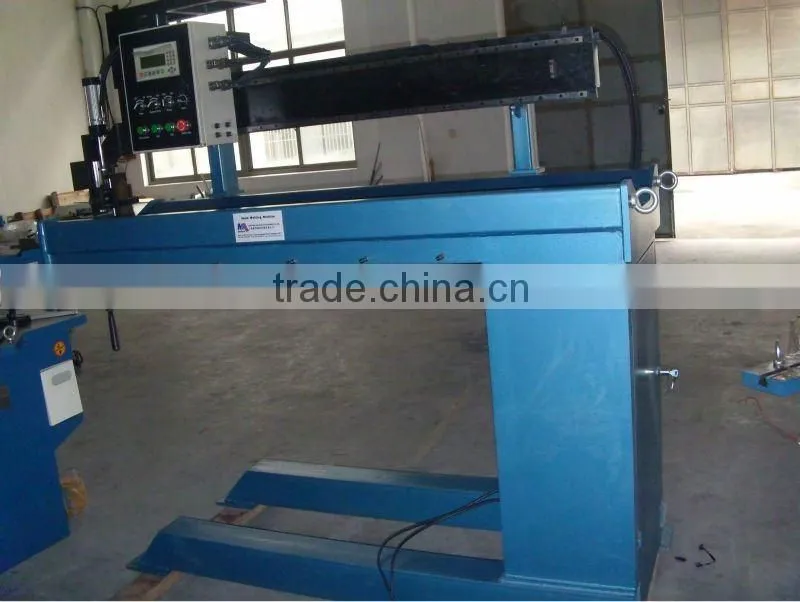

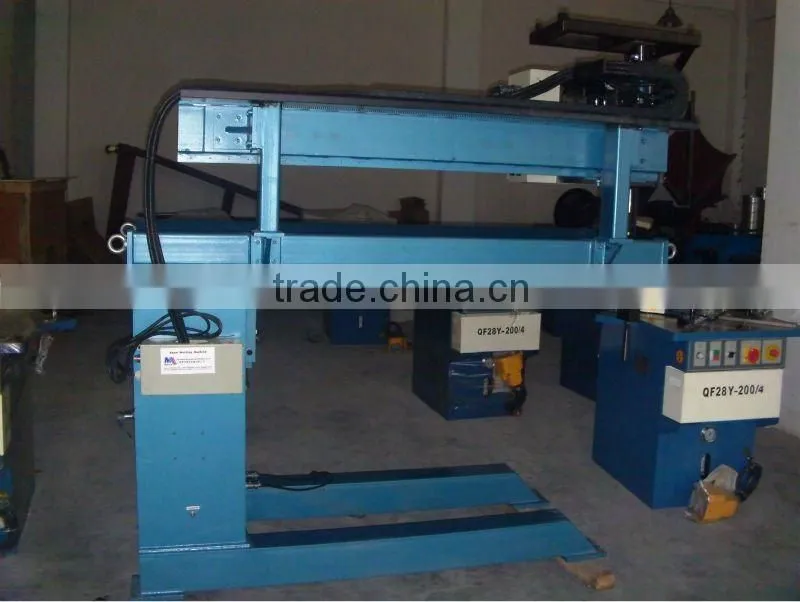

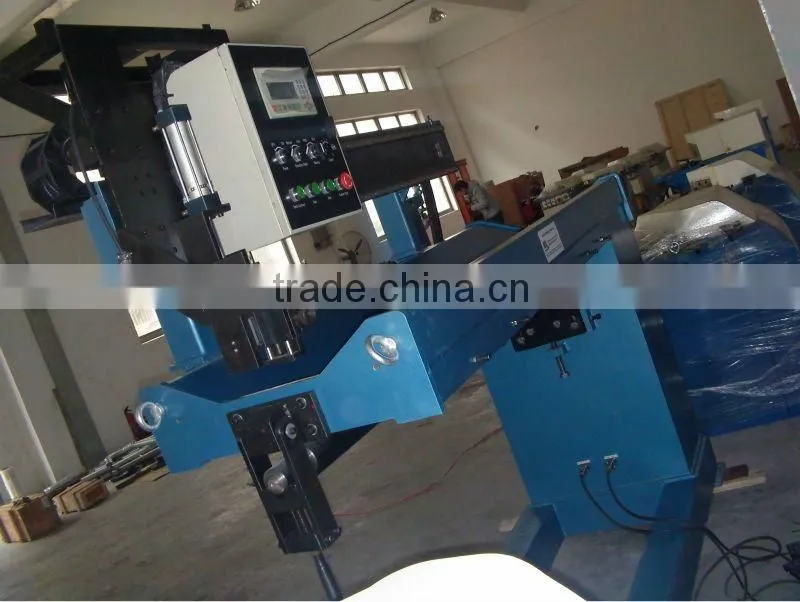

FZN500 is an automatic longitudinal welding machine, which may be used to weld material of carbon steel, low alloy steel, stainless steel, aluminum and alloy etc.. The machine can use argon arc welding, gas protect welding, plasma weld and submerged arc welding system. It is very good to used in welding of pressure vessel, automobile accessory, electric home appliances and food machinery etc.
Welding power system could be supplied by the buyer from local supplier.
2. Feature:
Automatic weld controlled by means of PLC
The welding gun moves smoothly driven on a linear guideway
Speed of welding heed is adjustable based on material and thickness to weld.
Keyboard-type press plate with high-strength airbag, which will provide equalizing pressure on the working piece and keep it stable during welding.
Pneumatic align unit for welding edge aligning
Special design on press plate and spindle for heat dissipation
3. Specifications
Thickness scope 0.2-6 mm
Effective length 80-500 mm
Diameter (mm) 30-110 mm
TIG welding
Recommended welding power unit: WSM-315A
Welding Speed: 150~1500 mm/min
Facilities required:(supplied by buyer):
For welding machine 220V 50Hz single-phase 10 A Power supply, compressed air 7.5 kg/CM2
For welding power 380V 50Hz 3-phase Power supply, Bottled argon gas.
FAQ
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?

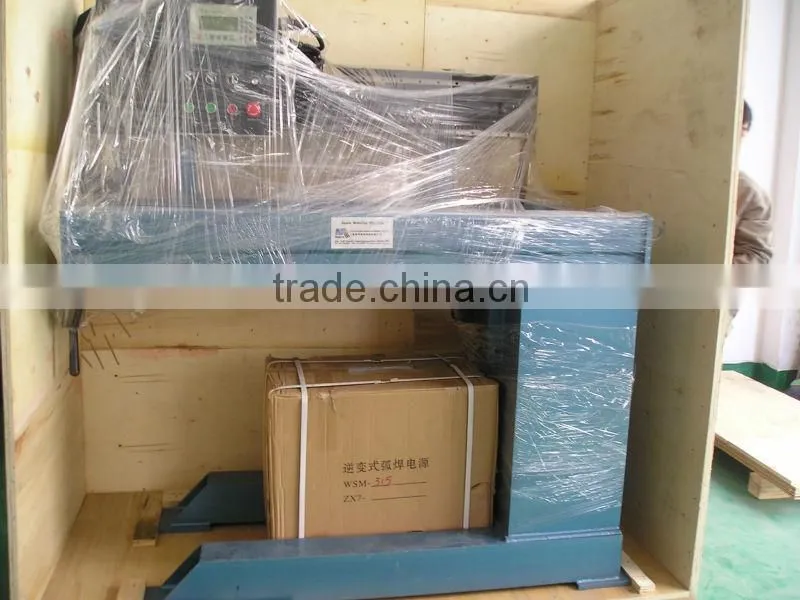

A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
