Specifications

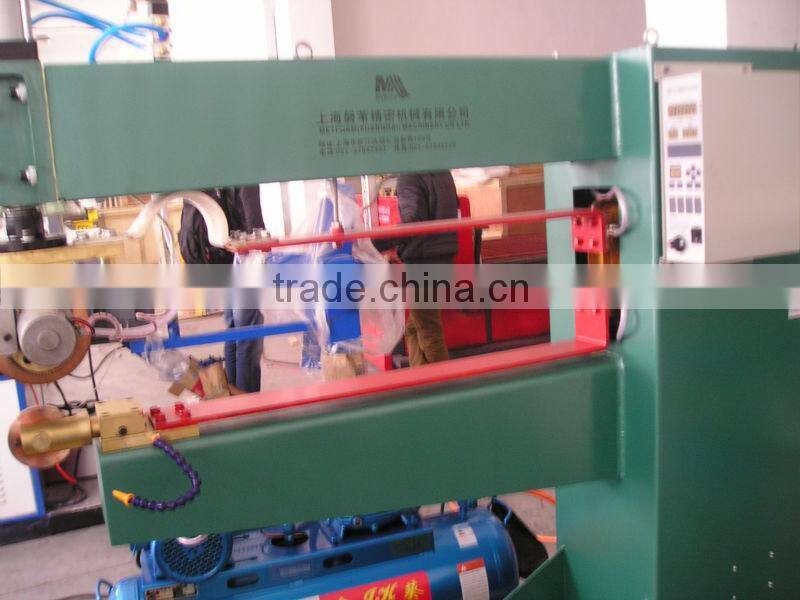

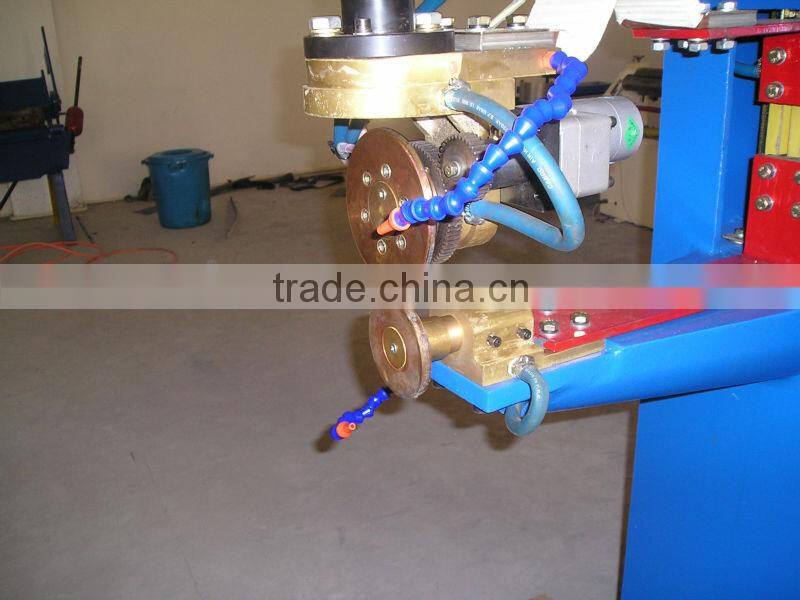

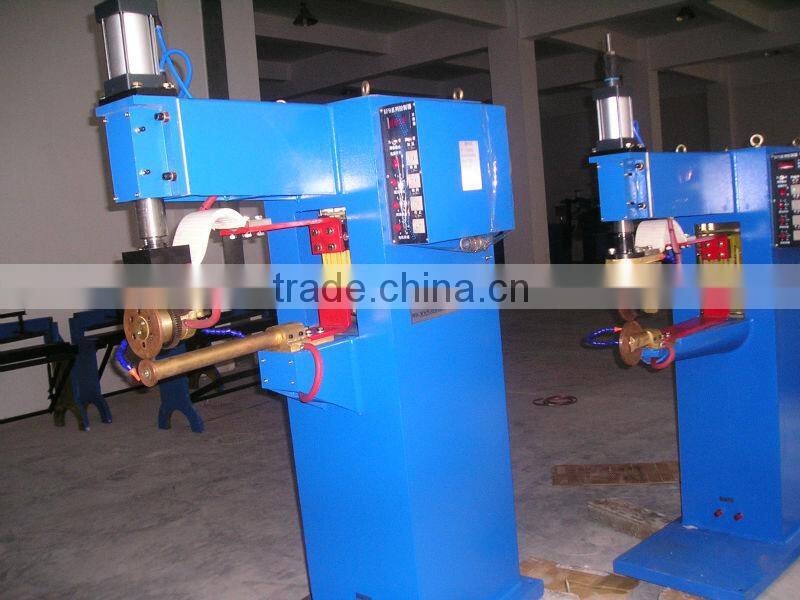

FN Series Transverse Seam Welding machine1.Usage welding can tube air duct
2.Wall thickness:0.3~2mm
FN Series Transverse Seam Welding machine
procedure is costly and time consuming.
Metform machinery longitudinal seam welders provide a
solution to these problems. They optimize the welding
process, reduce welding costs and improve the quality
of the weld. They are designed for the straight line welding
of all weldable materials in thicknesses varying from 0.1 mm to 10 mm.
Thicker materials can be accommodated using
Metform 's unique mandrel adjustment capability.
Function
Adopt key pressure structure. Equal stable clamping and cooling effect.
Crossbeam and welding cart supply precise welding. Used for high quality
and low deformation longitudinal beam welding. In most cases, butt joint
design welding seam.
Rated input capacity 100KVA
Rated input voltage 1-380V/50HZ
Rated load cycle 50%
Max.input capacity 75KVA
Max.short circuit current 11000A
ure of electrode 600kgf
The flow of cooling water 6L/min
Arm length 350mm(can be customized)
max. Thickness of metal sheet: 1.2+1.2mm
Model NO. |
FN-35 |
FN-50 |
FN-75 |
FN-100 |
FN-150 |
Rated primary voltage |
380V |
380V |
380V |
380V |
380V |
Rated capacity |
35KVA |
50KVA |
75KVA |
100KVA |
150KVA |
Rated primary current |
95A |
135A |
200A |
265A |
400A |
Secondary no load voltage |
5.3V |
6.0V |
6.3V |
7.0V |
7.5V |
Adjust method |
electrodeless adjust |
||||
Duty cycle |
50% |
50% |
50% |
50% |
50% |
Max. welding thickness(mm) |
0.5+0.5 |
0.8+0.8 |
1.0+1.0 |
1.2+1.2 |
1.5+1.5 |
Max. force electrodes |
3000N |
3000N |
4700N |
6100N |
10000N |
Throat depth |
Negotiation |
||||
The distance of the electrodes |
Negotiation |
||||
Welding speed |
2m/min |
2m/min |
1.5 m/min |
1.5 m/min |
1.5 m/min |
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
Spiral duct forming machine is 8455229090
Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
