Specifications
High precision carbon steel stainless steel bowl seam welding machine1.lower price and higher quality
2.FOB Shanghai

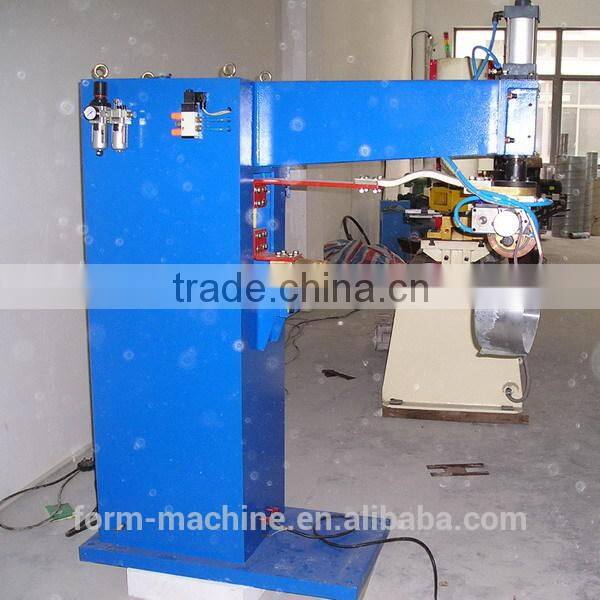

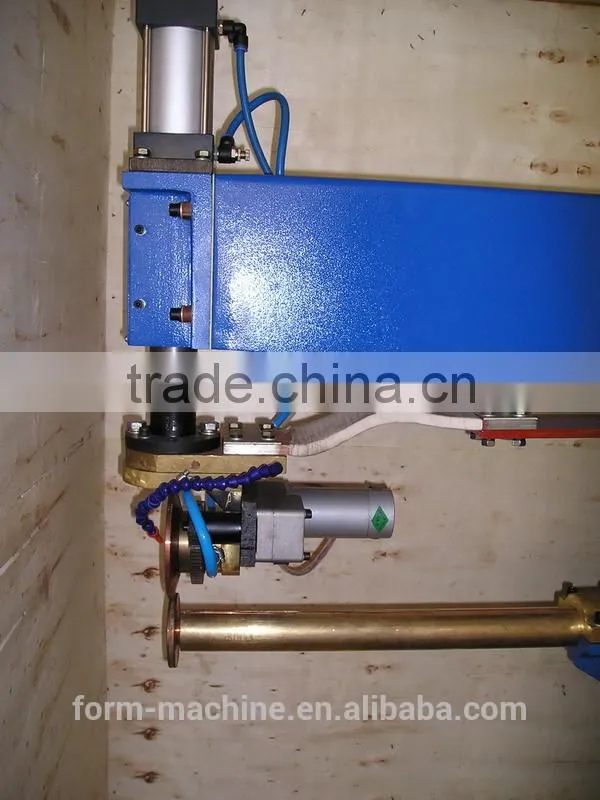

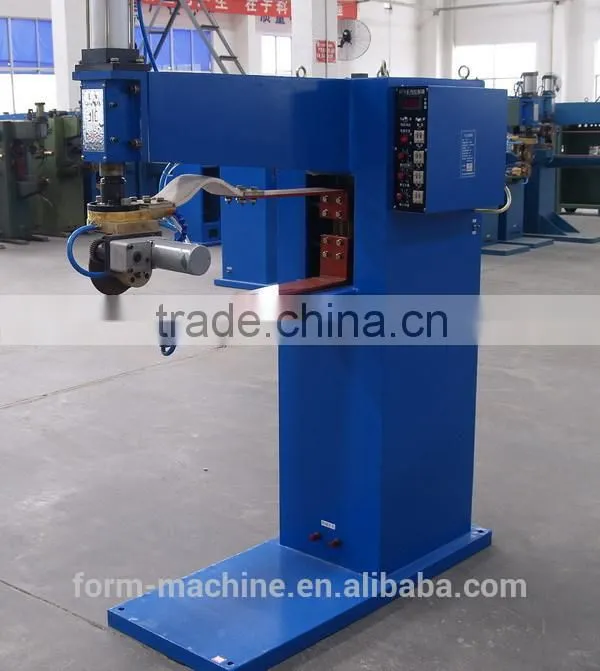

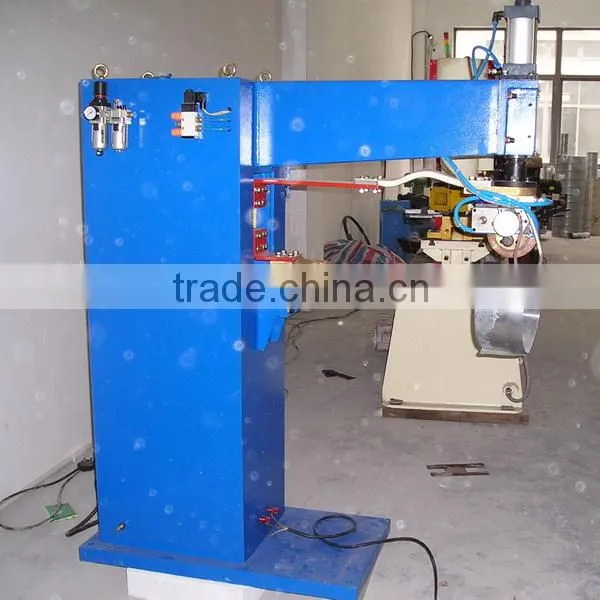

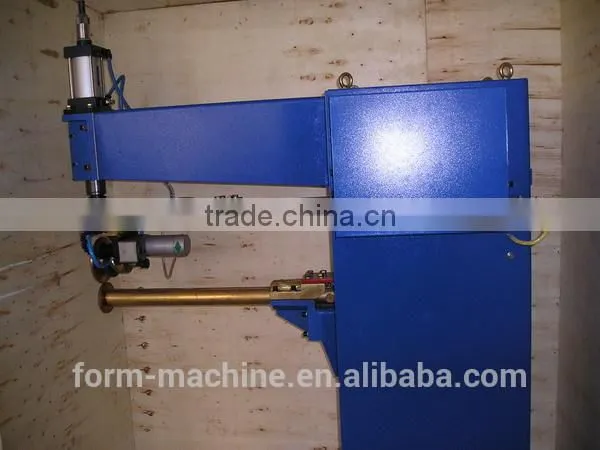

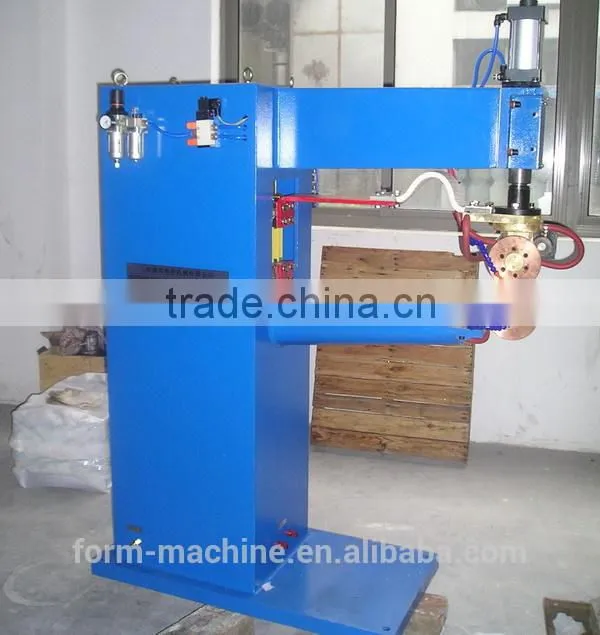

High precision carbon steel stainless steel bowl seam welding machine
seam-welding machine adopts three-phase inverter driving, welding speed is uniform, convenient adjustment, stable.Longitudinal sewing machine have painted the welding and welding two forms
seam-welding machine is widely applied in hardware, electrical appliances, automobiles, tank and other manufacturing industries, the most suitable for welding low carbon steel, stainless steel bowl, barrel, and sealed containers of thin-walled box.
Model NO. |
FN-35 |
FN-50 |
FN-75 |
FN-100 |
FN-150 |
Rated primary voltage |
380V |
380V |
380V |
380V |
380V |
Rated capacity |
35KVA |
50KVA |
75KVA |
100KVA |
150KVA |
Rated primary current |
95A |
135A |
200A |
265A |
400A |
Secondary no load voltage |
5.3V |
6.0V |
6.3V |
7.0V |
7.5V |
Adjust method |
electrodeless adjust |
||||
Duty cycle |
50% |
50% |
50% |
50% |
50% |
Max. welding thickness(mm) |
0.5+0.5 |
0.8+0.8 |
1.0+1.0 |
1.2+1.2 |
1.5+1.5 |
Max. force electrodes |
3000N |
3000N |
4700N |
6100N |
10000N |
Throat depth |
Negotiation |
||||
The distance of the electrodes |
Negotiation |
||||
Welding speed |
2m/min |
2m/min |
1.5 m/min |
1.5 m/min |
1.5 m/min |
Q:How to get a accurate quotation from us?
A:provide us the detail of the material such as metal thickness and width
Q:what’s the shipping cost from China to your country?
A:We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.
Q: How to check imported charges or tax ?
A:Call your l them machine HS code.
seam welding machine is 85152900
Q:Payment terms,MOQ,warranty,FOB...
A:payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery
minimum order quantity:1 set,FOB Shanghai.
delivery time :20days after receipt of formal order and 30% deposit.
warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.
Q: what’s the package?
A:fumigation-free plywood case or without package
Q:How to operate this machine ?
A:video link of our factory .......or we send you the movie directly
Q:what about commissioning service ?
A:we can offer commissioning service,the buyer need to afford plane tickets
Q:Do you offer teaching&training ?
A:Training at supplier’s plant
Q: what’s policy for guarantee and broken parts?
A:Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
Metform ( Shanghai) machinery Co., Ltd., located in Songjiang Shanghai, was established in 2004. Metform specializes in design and manufacture of special machine for metal sheet/strip manufacture and forming. We are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/ 4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too. The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
