Specifications
46inch control panel1.high resoution TOUCH PANEL 4096*4096
2.support any opaque objects on control panel.

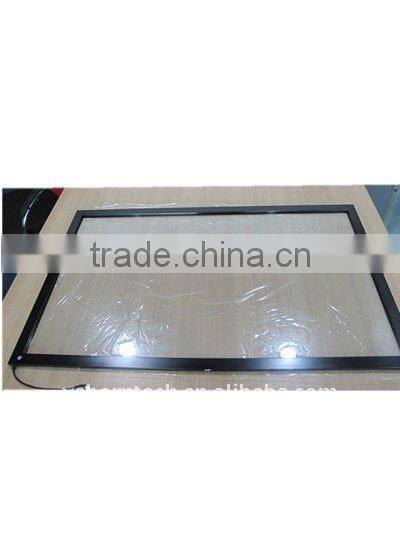

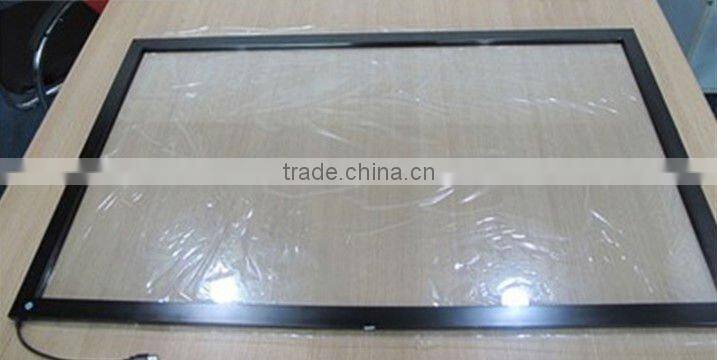

46inch touch control panel
Fit in with: Panel display device
Displayable Resolution: 3274096*4096
Touch accuracy: ±1.5mm .over 90% of the touch sensitive area
Response Speed: £16ms
Input Method: Finger, gloved hand, or any other pointer
Touch durability: Unlimited
Sampling rate: 60ppi/sec
Touch Activation Force: No pressure required
Minimum Touch Object: 2mm
Surface Durability: Surface durability is that of glass, Mohs'hardness rating of 7
Light Transmission: 92%, up to 100% (no glass)
Temperature: Operating: 0°C ~ 55°C; Storage: -25°C ~ 85°C
Relative Humidity: Operating:10% to 90% RH(non-condensing); Storage:10% to 90% RH(non-condensing);
Life Time:At least 7-years
Power Supply: USB Interface,300mA, operating current<500mA
Agency Approvals: CE, FCC Class B
Interface: USB2.0(full-speed)
Operation System: Windows 7/Windows XP/Win 2000/Linux/MAC OSX
