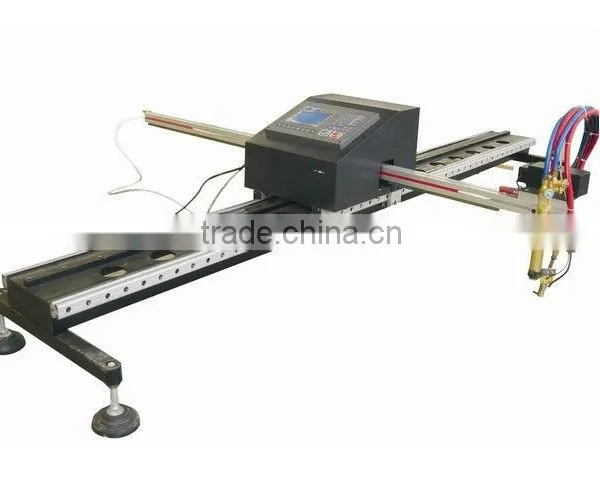

Protable CNC cutting machine1500*3100mm plasma cutter

CNC plasma cutting machine

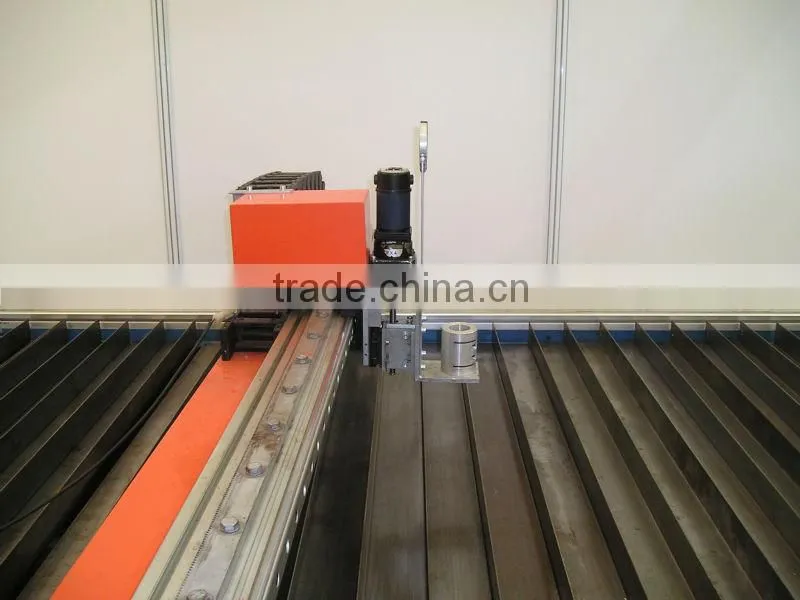

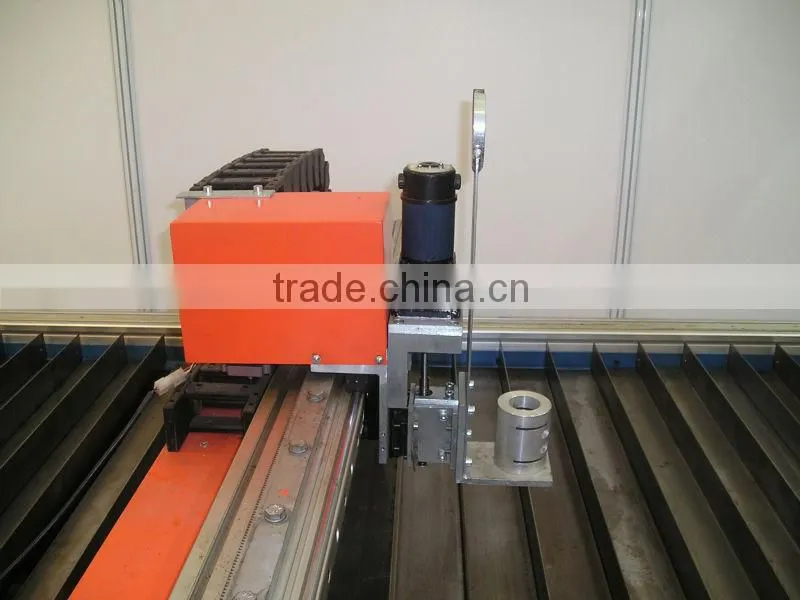

 CNC Table Plasma Cutting Machine FM-TD3100

1)        Machine stand

Firm and Stable stand, 80×80×6mm steel welding structure.

Precious linear round guide rail and linear guide rail, the linear tolerance of two guides on X axis is less than ±0.05mm;

    X and Y axis vertical tolerance is less than ±0.05mm;

    Max. working  speed: 12.8 m/min both x- and Y-axis

    Max. moving speed without working:26.4m/min both x- and Y-axis

2)        Control System

The control system uses an industrial computer and control software in English. The industrial computer uses ISO standard CNC language, meanwhile show cutting shape, tail cutting movement dynamically, and simulating the cutting movement. Also can be programmed by manual and have L/O supervise function. It can connect with Internet to realize data exchange as well as use disk or USB to copy file into machine system.

3)        Driving System

High precision digital servo system.

4)        Auto Height Adjustment System (for option)

5)        Plasma power system

6)        Professional software for sheet cutting

7)        Cutting Area:1500x3100mm

8)        Cutting thickness:0.5-6.0mm

9)        Cutting speed:1-26.4 m/min (depending on material thickness)

10)    Max. sheet weight: 450 kg

11)    Machine Weight: 1015 kg

12)    Overall Dimension (L.W.H): 4160x1920x1280mm

13)    Power: 20-60 AMP adjustable (all the power can be put into use 100%)

14)    Cutting Unit Transformer380/3/50 - 30 A

15)    Touch Screen Transformer220/1/50 - 15 A

16)    Air: 320 cf/hour  (0.15 cm/min)

Pressure90 PSI, dry air without oil

FAQs:

•How to get a accurate quotation from us?

provide us the detail of the material such as metal thickness and width

• what’s the shipping cost from China to your country?

We can send machine to your port or door address by sea or airplane. Please kindly tell us your nearest port or address with postcode.We have reliable shipping agent to insure the safe,convenient and timely delivery.

• How to check imported charges or tax ?

Call your l them machine HS code.

Spiral duct forming machine is 8455229090

Press brake and rolling machines are 84622990. shearing machine is 84623990.rolling machine is 8455229090,seam welding machine is 85152900

• Payment terms,MOQ,warranty,FOB...

payment terms 30% down payment with order by T/T,the balance of 70% to be paid on delivery

minimum order quantity:1 set,FOB Shanghai.

delivery time :20days after receipt of formal order and 30% deposit.

warranty:12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc .You can contact us any time,if urgently,please call us.

• what’s the package?

 fumigation-free plywood case or without package

• How to operate this machine ?

 video link of our factory .......or we send you the movie directly

• what about commissioning service ?

 we can offer commissioning service,the buyer need to afford plane tickets

• Do you offer teaching&training ?

Training at supplier’s plant

• what’s policy for guarantee and broken parts?

Warranty period of equipment lasts a year, during which the broken parts and spares caused by quality can be offered free.
