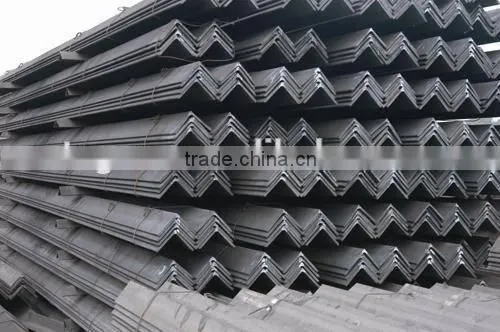

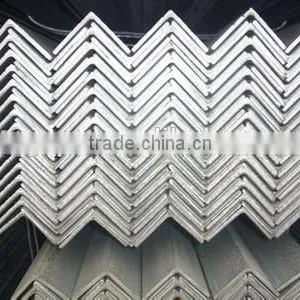

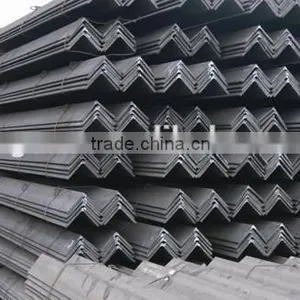

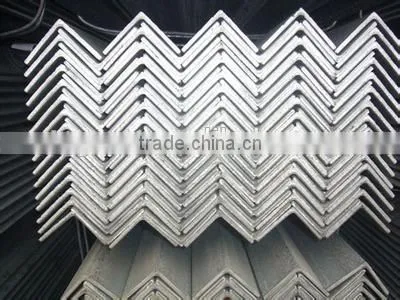

Hot Rolled Equal Angle Steel Bar

Hot Rolled Equal Angle Steel Bar thumbnail-1
Hot Rolled Equal Angle Steel Bar thumbnail-2
Hot Rolled Equal Angle Steel Bar photo-1
Hot Rolled Equal Angle Steel Bar photo-2
US$ 500 - 550 MOQ: 100 Tons
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Dimensions:
20mm to 250mm
Grade:
Q195-Q420 Series
Contact Supplier Request Quote Chat Now
Tangshan Gangrong Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard AISI, ASTM, BS, DIN, GB, JIS
Dimensions 20mm to 250mm
Grade Q195-Q420 Series
Place of Origin China
Type Equal
Application Bracing for general structures, Stiffeners in structural use

Specifications

Grade: JIS G3192, DIN 1028, EN 10056, GB 9787-1988
Material: GB Q235B,Q345B
Size:20mm to 250mm

Packaging & Shipping



Packaging Details:  standard seaworthy packing or as customer request

Delivery Detail:   20-30 days after receiving deposit by TT or L/C







Product Description





 hot rolled equal angle steel bar







                                                                    EQUAL STEEL ANGLE
Application: Trusses,Transmission towers,Telecommunication towers,Bracing for general structures,Stiffeners in structural use
Size: 20mm to 250mm
Dimensional Specifications: JIS G3192, DIN 1028,     EN 10056, GB 9787-1988
Material Specifications: JIS G3192, SS400, SS540                                                              EN 10025,S235JR,S355JR ASTM A36                                                GB Q235B,Q345B or Equivalent
EQUAL ANGLE Dimensions   Dimensional Specifications
a t Mass:kg/m
(mm) (mm) EN10056  JIS G3192 GB 707-88
A20×20×2.5 20 2.5 × × 0.754
A20×20×3 20 3 0.882 × 0.889
A25×25×2.5 25 2.5 × × 0.95
A25×25×2.7 25 2.7 × × 1.02
A25×25×3 25 3 1.12 1.12 1.124
A25×25×4 25 4 1.45 × 1.459
A30×30×2.3 30 2.3 × × 1.074
A30×30×2.5 30 2.5 × × 1.16
A30×30×2.7 30 2.7 × × 1.246
A30×30×3 30 3 × 1.36 1.373
A30×30×4 30 4 × × 1.786
A30×30×5 30 5 × × 2.184
A30×30×6 30 6 × × 2.564
A36×36×3 36 3 × × 1.656
A36×36×4 36 4 × × 2.163
A36×36×5 36 5 × × 2.654
A38×38×2.3 38 2.3 × × 1.371
A38×38×2.5 38 2.5 × × 1.482
A38×38×2.7 38 2.7 × × 1.593
A38×38×3 38 3 × × 1.758
A38×38×3.7 38 3.7 × × 2.137
A38×38×3.8 38 3.8 × × 2.19
A38×38×4 38 4 × × 2.297
A38×38×5 38 5 × × 2.82
A38×38×6 38 6 × × 3.326
A40×40×3 40 3 × 1.83 1.852
A40×40×4 40 4 2.42 × 2.422
A40×40×5 40 5 2.97 2.95 2.976
A45×45×4 45 4 2.74 2.74 2.736
A45×45×5 45 5 3.38 3.38 3.369
A45×45×6 45 6 4 × ×
A50×50×4 50 4 3.06 3.06 3.059
A50×50×5 50 5 3.77 3.77 3.77
A50×50×6 50 6 4.47 4.43 4.465
A60×60×4 60 4 3.7 3.68 3.643
A60×60×5 60 5 4.57 4.55 4.514
A60×60×6 60 6 5.42 × ×
A60×60×8 60 8 7.09 × ×
A63×63×5 63 5 × × 4.822
A63×63×6 63 6 × × 5.721
A65×65×4 65 4 4.02 × ×
A65×65×5 65 5 4.97 5 4.907
A65×65×6 65 6 5.91 5.91 5.841
A65×65×8 65 8 7.73 7.66 7.662
A70×70×6 70 6 6.38 6.38 6.406
A70×70×7 70 7 7.38 × 7.398
A70×70×8 70 8 8.36 × 8.373
A70×70×9 70 9 9.34 × ×
A75×75×6 75 6 6.85 6.85 6.905
A75×75×7 75 7 7.94 × 7.976
A75×75×8 75 8 8.99 × 9.03
A75×75×9 75 9 10.1 9.96 ×
A80×80×5 80 5 6.17 × ×
A80×80×6 80 6 7.34 7.32 7.376
A80×80×7 80 7 8.49 × 8.525
A80×80×8 80 8 9.36 × 9.658
A80×80×10 80 10 11.9 × ×
A90×90×7 90 7 9.61 9.59 9.656
A90×90×8 90 8 10.9 × 10.946
A90×90×9 90 9 12.2 × ×
A90×90×10 90 10 13.5 13.3 13.478
A100×100×6 100 6 9.26 × 9.366
A100×100×7 100 7 10.7 10.7 10.83
A100×100×8 100 8 12.2 × 12.276
A100×100×9 100 9 13.6 × ×
A100×100×10 100 10 15 14.9 15.12
A100×100×12 100 12 17.8 × 17.898
A110×110×8 110 8 13.43 × ×
A110×110×9 110 9 15.02 × ×
A110×110×10 110 10 16.6 × ×
A120×120×6 120 6 11.1 × ×
A120×120×7 120 7 12.9 × ×
A120×120×8 120 8 14.7 14.7 14.57
A120×120×9 120 9 16.5 × ×
A120×120×10 120 10 18.2 × 18.055
A120×120×11 120 11 19.9 × ×
A120×120×12 120 12 21.6 × ×
A120×120×15 120 15 26.6 × ×
A125×125×8 125 8 × × 15.504
A125×125×10 125 10 × × 19.133
A125×125×12 125 12 × × 22.696
A125×125×14 125 14 × × 26.193
A130×130×9 130 9 17.9 × ×
A130×130×10 130 10 19.8 × 19.625
A130×130×11 130 11 21.7 × ×
A130×130×12 130 12 23.6 23.4 ×
A130×130×13 130 13 25.4 × ×
A130×130×15 130 15 × 28.8 ×
A140×140×10 140 10 × × 21.488
A140×140×12 140 12 × × 25.522
A140×140×14 140 14 × × 29.49
A150×150×10 150 10 23 × 22.765
A150×150×11 150 11 25.15 × ×
A150×150×12 150 12 27.32 27.3 27.13
A150×150×13 150 13 29.49 × ×
A150×150×14 150 14 31.64 × ×
A150×150×15 150 15 33.76 33.6 ×
A150×150×16 150 16 35.87 × ×
A150×150×18 150 18 40.04 × ×
A150×150×19 150 19 42.1 41.9 ×
A150×150×20 150 20 44.15 × ×
A160×160×10 160 10 × × 24.729
A160×160×12 160 12 × × 29.391
A160×160×14 160 14 × × 33.987
A160×160×16 160 16 × × 38.518
A175×175×12 175 12 × 31.8 ×
A175×175×15 175 15 × 39.4 ×
A180×180×12 180 12 × × 33.159
A180×180×14 180 14 × × 38.383
A180×180×16 180 16 43.5 × 40.542
A180×180×18 180 18 48.6 × 48.634
A200×200×14 200 14 × × 42.894
A200×200×15 200 15 × 45.3 ×
A200×200×16 200 16 48.5 × 48.894
A200×200×20 200 20 59.5 59.7 60.056
A200×200×24 200 24 71.7 × 71.168
A200×200×25 200 25 × 73.6 ×
A250×250×25 250 25 × 93.7 ×
