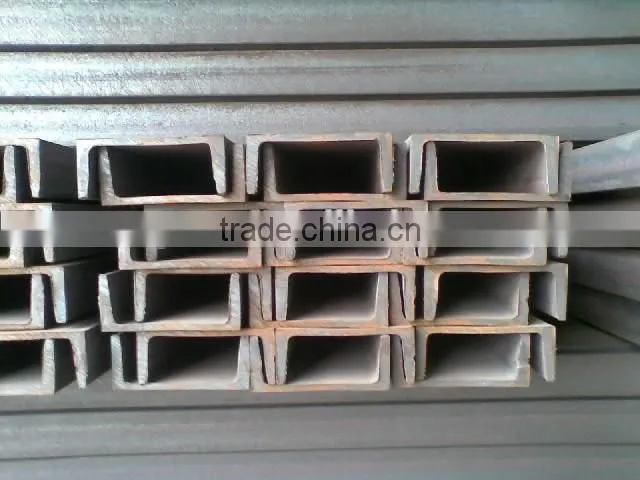

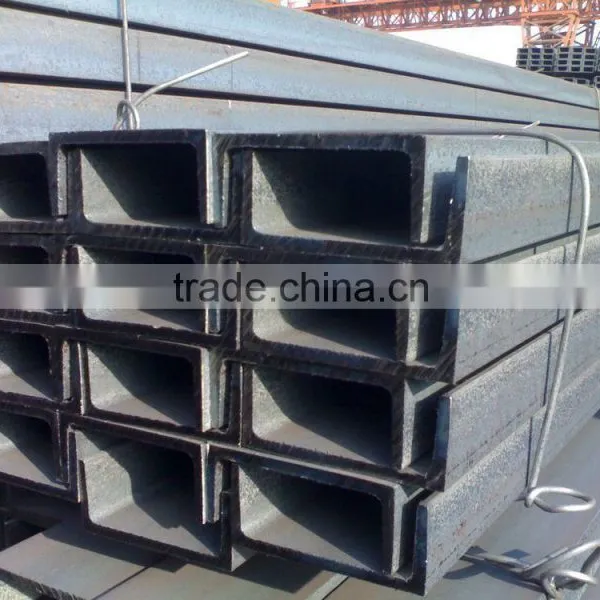

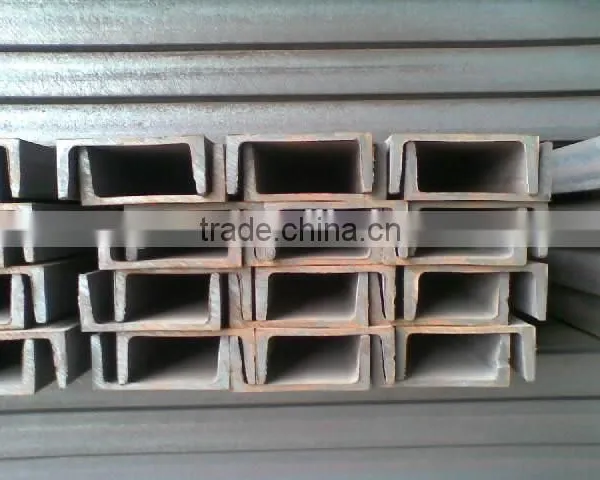

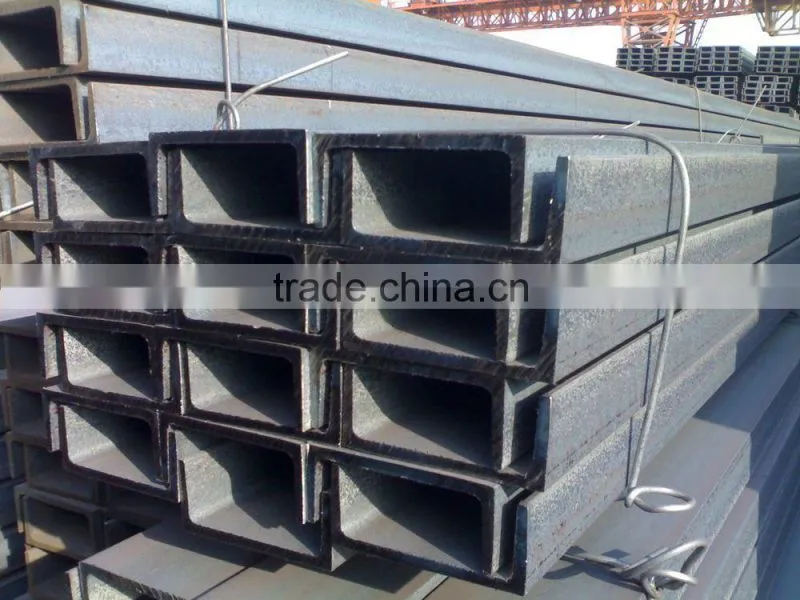

Hot Rolled Channel Steel Bar
US$ 500 - 650
MOQ: 100 Tons
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, BS, DIN, GB, JIS
Dimensions:
EN 10025, JIS G3192,DIN 1026, GB 707-88
Grade:
JIS G3192, SS400 / EN 10025,S235JR / ASTM A36
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Rolled Carbon Steel H BeamUS$ 500 - 650MOQ: 100 Tons -
Carbon Angle Steel Bar Sizes From 50-200mm in TangshanUS$ 600 - 700MOQ: 100 Tons
-
Sectional Steel ms Channal BarUS$ 530 - 600MOQ: 100 Tons
-
Unequal Angle Steel/iron Bar From TangshanUS$ 500 - 1,000MOQ: 100 Tons
-
Iron I Beam From TangshanUS$ 500 - 750MOQ: 100 Tons
Standard
AISI, ASTM, BS, DIN, GB, JIS
Dimensions
EN 10025, JIS G3192,DIN 1026, GB 707-88
Grade
JIS G3192, SS400 / EN 10025,S235JR / ASTM A36
Place of Origin
Hebei, China
Shape
U Channel
Application
Multi-story frame structures
Perforated Or Not
Not Perforated
Specifications
Grade:EN 10025, JIS G3192,DIN 1026, GB 707-88Material:Q235B,Q345B
Size:50mm to 300mm
Product Description
| UPN / JIS U CHANNEL / GB U CHANNEL | |||||
| Application: | Warehouses, Car parks, Workshops, Grandstands & Sport stadiums, Multi-story frame structures | ||||
| Size: | 50mm to 300mm | ||||
| Dimensional Specifications: | EN 10025,JIS G3192,DIN 1026,GB 707-88 | ||||
| Material Specifications: | JIS G3192, SS400 / EN 10025,S235JR / ASTM A36 / GB Q235B,Q345B or Equivalent | ||||
| Section | Standard Sectional Dimension | Mass kg/m | |||
| h | b | s | t | ||
| (mm) | (mm) | (mm) | (mm) | ||
| EN Standard Channels (UPN) | |||||
| 80×45 | 80 | 45 | 6 | 8 | 8.64 |
| 100×50 | 100 | 50 | 6 | 8.5 | 10.6 |
| 120×55 | 120 | 55 | 7 | 9 | 13.4 |
| 140×60 | 140 | 60 | 7 | 10 | 16 |
| 160×65 | 160 | 65 | 7.5 | 10.5 | 18.8 |
| 180×70 | 180 | 70 | 8 | 11 | 22 |
| JIS Standard Channels | |||||
| 50×25 | 50 | 25 | 3 | 6 | 2.37 |
| 75×40 | 75 | 40 | 3.8 | 7 | 5.3 |
| 75×40 | 75 | 40 | 4 | 7 | 5.6 |
| 75×40 | 75 | 40 | 4.5 | 7 | 5.85 |
| 75×40 | 75 | 40 | 5 | 7 | 6.92 |
| 100×50 | 100 | 50 | 3.8 | 6 | 7.3 |
| 100×50 | 100 | 50 | 4.2 | 6 | 8.03 |
| 100×50 | 100 | 50 | 4.5 | 7.5 | 8.97 |
| 100×50 | 100 | 50 | 5 | 7.5 | 9.36 |
| 125×65 | 125 | 65 | 5.2 | 6.8 | 11.66 |
| 125×65 | 125 | 65 | 5.3 | 6.8 | 12.17 |
| 125×65 | 125 | 65 | 5.5 | 8 | 12.91 |
| 125×65 | 125 | 65 | 6 | 8 | 13.4 |
| 150×75 | 150 | 75 | 5.5 | 7.3 | 14.66 |
| 150×75 | 150 | 75 | 5.7 | 10 | 16.71 |
| 150×75 | 150 | 75 | 6 | 10 | 17.9 |
| 150×75 | 150 | 75 | 6.5 | 10 | 18.6 |
| 200×80 | 200 | 80 | 7.5 | 11 | 24.6 |
| GB Standard Channels | |||||
| 50×37 | 50 | 37 | 4.5 | 7 | 5.438 |
| 63×40 | 63 | 40 | 4.8 | 7.5 | 6.634 |
| 80×43 | 80 | 43 | 5 | 8 | 8.045 |
| 100×48 | 100 | 48 | 5.3 | 8.5 | 10.007 |
| 120×53 | 120 | 53 | 5.5 | 9 | 12.059 |
| 140×58 | 140 | 58 | 6 | 9.5 | 14.535 |
| 140×60 | 140 | 60 | 8 | 9.5 | 16.733 |
| 160×63 | 160 | 63 | 6.5 | 10 | 17.24 |
| 160×65 | 160 | 65 | 8.5 | 10 | 19.752 |
| 180×68 | 180 | 68 | 7 | 10.5 | 20.174 |
| 180×70 | 180 | 70 | 9 | 10.5 | 23 |
| 200×73 | 200 | 73 | 7 | 11 | 22.637 |
| 200×75 | 200 | 75 | 9 | 11 | 25.777 |
| 220×77 | 220 | 77 | 7 | 11.5 | 24.999 |
| 220×79 | 220 | 79 | 9 | 11.5 | 28.453 |
| 250×78 | 250 | 78 | 7 | 12 | 27.41 |
| 250×80 | 250 | 80 | 9 | 12 | 31.335 |
| 250×82 | 250 | 82 | 11 | 12 | 35.26 |
| 280×82 | 280 | 82 | 7.5 | 12.5 | 31.427 |
| 280×84 | 280 | 84 | 9.5 | 12.5 | 35.823 |
| 280×86 | 280 | 86 | 11.5 | 12.5 | 40.219 |
| 300×85 | 300 | 85 | 7.5 | 13.5 | 34.463 |
| 300×87 | 300 | 87 | 9.5 | 13.5 | 39.173 |
| 300×89 | 300 | 89 | 11.5 | 13.5 | 43.883 |
Packaging & Shipping
Packaging Details: standard seaworthy packing or as customer request
Delivery Detail: 20-30 days after receiving deposit by TT or L/C
Our Services
1.Reply your inquiry within 24 hours
2.Timely production and delivery
3.With 100% inspection prior to shipment
4.Offer a full range of standard items to meet most industrial applications
5.Highly competitive prices with good quality
6.Guarantees product quality and take responsibility for the defects caused by delivery
