Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery

Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery thumbnail-1
Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery thumbnail-2
Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery thumbnail-3
Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery thumbnail-4
Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery thumbnail-5
Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery thumbnail-6
Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery photo-1

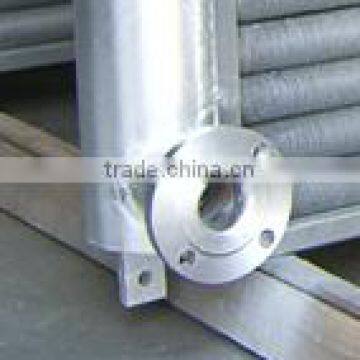

Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery photo-2

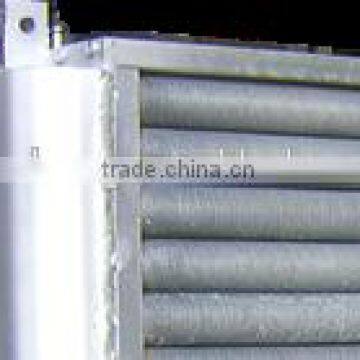

Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery photo-3
Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery photo-4

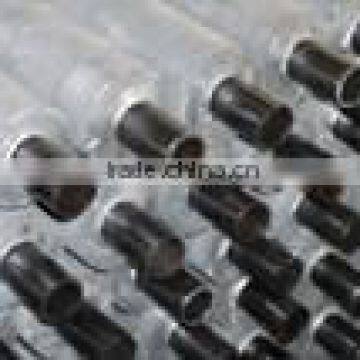

Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery photo-5
Aluminum Extruded Fin Tube Heat Exchanger for Heat Recovery photo-6
US$ 650 - 3,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Quanbang
Contact Supplier Request Quote Chat Now
Wuxi Quanbang Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Quanbang
Model Number YCCL
Structure Tube Heat Exchanger
Liquid Flow Rate customized
Maximum Working Pressure customized
Weight customized
Dimension(L*W*H) customized
Certification Other, TUV
Warranty 1 year
After-sales Service Provided No overseas service provided
 Aluminum extruded fin tube heat exchanger for heat recovery
This kind of heat exchangers are to reuse waste gas, waste water etc.  for energy saving . Mainly applied in Chemical Industry, Cereals and Oil Industry, Feed Processing Industry and so on.
Product Description

Type: Compact Heat Exchanger

Heat transfer source: waste gas, waste water

Pressure-bearing: high

Heat transfer Function: medium level

Material feature: carbon steel with extruded aluminum fin, outer frame spray painted.

Array: staggered arrangement

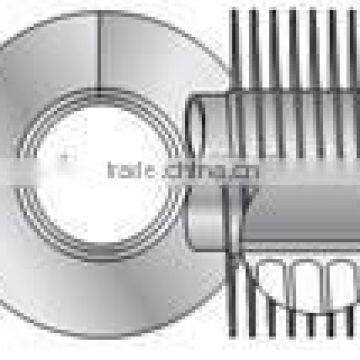

Fin Shape:



Aluminum extruded fin tube heat exchanger for heat recoveryAluminum extruded fin tube heat exchanger for heat recovery





  Performance Parameter

Model

Air Flow(m3/h)

Windward

Tubes

Effective

Height
(mm)

Heat Exchange

Area
(m2)

Header Tube

Diameter
(mm)

Heat Load(kw)

L×W×H
(mm)




YCCL-14×6×0.5

5000

14

575

47

φ57×3.5

69

900×600×679



YCCL-15×6×0.8

8000

15

823

72

φ76×4

111

1000×600×923



YCCL-17×6×0.9

10000

17

926

92

φ76×4

138

1100×600×1026



YCCL-20×6×1.1

15000

20

1157

135

φ89×4.5

208

1300×600×1257



YCCL-22×6×1.2

18000

22

1282

164

φ89×4.5

249

1400×600×1382



YCCL-24×6×1.3

20000

24

1323

185

φ89×4.5

277

1500×600×1423



YCCL-27×6×1.4

25000

27

1447

227

φ114×6

346

1700×600×1547



YCCL-29×6×1.5

28000

29

1525

257

φ114×6

388

1800×600×1625



YCCL-29×6×1.6

30000

29

1634

276

φ114×6

415

1800×600×1734





Packaging & Shipping

 Packaging according to custmer's requirement



Shipping Port: Shanghai



Aluminum extruded fin tube heat exchanger for heat recovery
