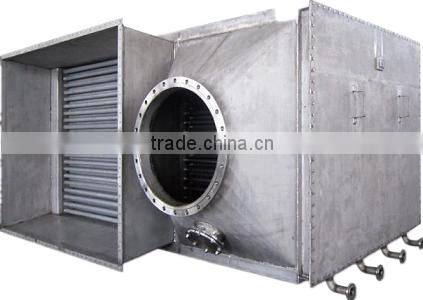

Help CenterAir to Air Efficient Stainless Steel Heat Exchanger
Related Products
-
DN16 Heat Pipe Heat Exchanger of Waste Heat RecoveryUS$ 2,500 - 5,500MOQ: 1 Unit -
Industrial Heat Recovery Exchanger, Waste Heat Recovery UnitUS$ 50,000 - 100,000MOQ: 1 Unit
-
Heat Pipes Fined Tube Air Preheater Heat Exchanger, Air to Air Heat ExchangerUS$ 50,000 - 100,000MOQ: 1 Unit
-
Fined Tube Heat Pipe Heat ExchangerUS$ 50,000 - 100,000MOQ: 1 Unit
-
Stainless Steel Finned Tube Heat Pipe Heat ExchangerUS$ 12,000 - 18,000MOQ: 1 Unit
Type: air to air heat pipe heat exchanger
Function: recover the residual heat of exhaust gas
Operation temperature: 70℃~200℃
Distinguishing feature:
1. high efficiency of heat recovery
2. startup under the small temperature difference and good isothermal condition
3. hard to bring the acid dew point corrosion
4. protecting the fresh air from pollution of waste gas
Material feature: stainless steel base tube with stainless steel fins by high-frequency welding
Array: staggered arrangement

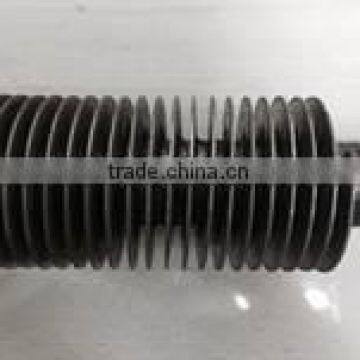

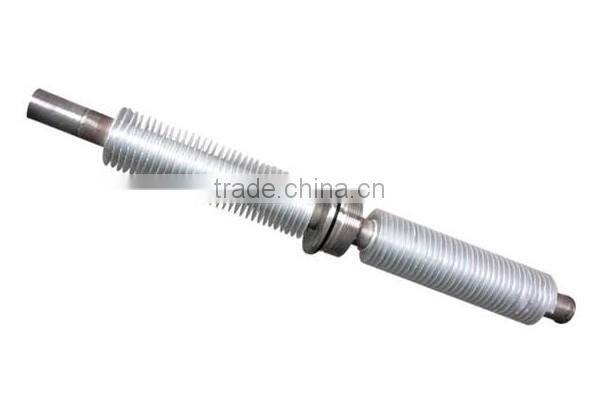

Heat pipe and fin shape
Performance Parameter
Model |
Air Flow(m3/h) |
Windward Tubes |
Effective Length |
Heat Exchange Area |
Total Heat Load |
L×W×H |
|
RSSS-13×25×0.9 |
7500 |
13 |
992 |
399 |
182 |
1212×2075×860 |
|
RSSS-14×25×1 |
10000 |
14 |
1029 |
533 |
242 |
1249×2075×1060 |
|
RSSS-14×25×1.1 |
11000 |
14 |
1132 |
586 |
267 |
1352×2075×1060 |
|
RSSS-14×25×1.2 |
12000 |
14 |
1235 |
639 |
291 |
1455×2075×1060 |
|
RSSS-15×25×1.2 |
15000 |
15 |
1263 |
799 |
363 |
1483×2075×1260 |
|
RSSS-16×25×1.3 |
18000 |
16 |
1389 |
959 |
436 |
1609×2075×1360 |
|
RSSS-18×25×1.4 |
20000 |
18 |
1425 |
1065 |
485 |
1645×2075×1460 |
|
RSSS-18×25×1.5 |
22000 |
18 |
1567 |
1172 |
533 |
1787×2075×1460 |
|
RSSS-19×25×1.6 |
25000 |
19 |
1653 |
1331 |
606 |
1873×2075×1560 |
|
RSSS-20×25×1.8 |
30000 |
20 |
1852 |
1598 |
727 |
2072×2075×1660 |
Packaging according to custmer's requirement
Shipping Port: Shanghai

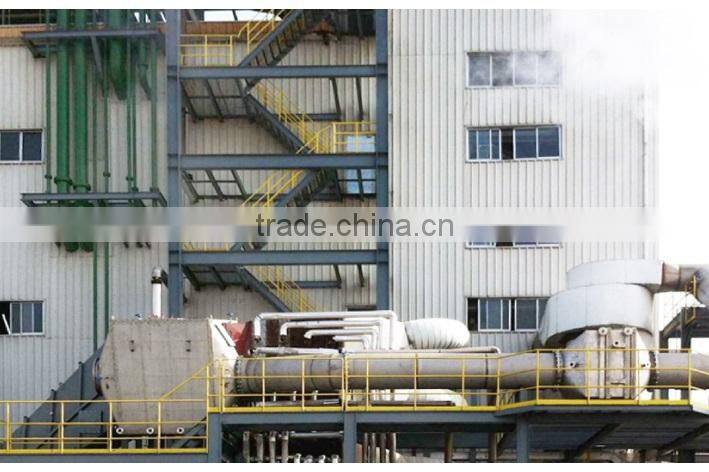

Waste heat recoverer is mainly used in Cereal & Oil Industry, Paper Coating Industry, Chemical Industry, Food and Beverage Industry, Feed-processing Industry etc.
