High Performance Air Air Heat Exchanger Unit

High Performance Air Air Heat Exchanger Unit thumbnail-1
High Performance Air Air Heat Exchanger Unit thumbnail-2
High Performance Air Air Heat Exchanger Unit thumbnail-3
High Performance Air Air Heat Exchanger Unit thumbnail-4
High Performance Air Air Heat Exchanger Unit thumbnail-5
High Performance Air Air Heat Exchanger Unit photo-1
High Performance Air Air Heat Exchanger Unit photo-2
High Performance Air Air Heat Exchanger Unit photo-3
High Performance Air Air Heat Exchanger Unit photo-4
High Performance Air Air Heat Exchanger Unit photo-5
US$ 12,000 - 18,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Quanbang
Contact Supplier Request Quote Chat Now
Wuxi Quanbang Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Quanbang
Model Number RSSL
Structure Tube Heat Exchanger
Liquid Flow Rate customized
Maximum Working Pressure customized
Weight customized
Dimension(L*W*H) customized
Certification Other, TUV
Warranty 1 year
After-sales Service Provided No overseas service provided
High performance air air heat exchanger unit
This kind of heat exchangers are to reuse waste gas etc. to the required temperature. Mainly applied in Chemical Industry, Cereals and Oil Industry, Feed Processing Industry and so on.
Product Description

Type: Air to Air Heat Pipe Heat Exchanger

Function: reuse and recover the residual heat of exhaust gas

Operation temperature:  70℃~200℃

Distinguishing Feature:

* high efficiency of heat recovery

* startup under the small temperature difference and good isothermal condition

* hard to bring the acid dew point corrosion

* protecting the fresh air from pollution of waste gas

Material Feature:

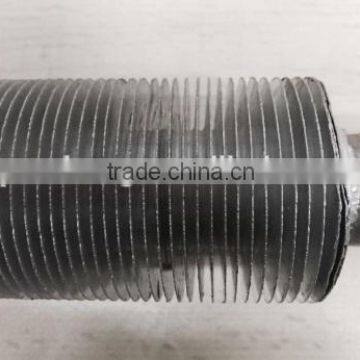

stainless steel base tube with extruded aluminum fins

Array: staggered arrangement

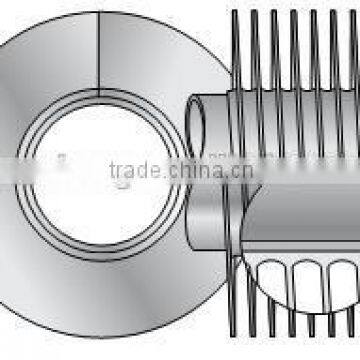

Fin Shape:







  Performance Parameter

Model

Air Flow(m3/h)

Windward Tubes

Effective Height
(mm)

Heat Exchange Area
(m2)

Heat Load
(kw)

L×W×H
(mm)




RSSL-13×25×0.9

7500

13

992

399

182

1212×2075×860



  RSSL-14×25×1

10000

14

1029

533

242

1249×2075×1060



RSSL-14×25×1.1

11000

14

1132

586

267

1352×2075×1060



RSSL-14×25×1.2

12000

14

1235

639

291

1455×2075×1060



RSSL-15×25×1.2

15000

15

1263

799

363

1483×2075×1260



RSSL-16×25×1.3

18000

16

1389

959

436

1609×2075×1360



RSSL-18×25×1.4

20000

18

1425

1065

485

1645×2075×1460



RSSL-18×25×1.5

22000

18

1567

1172

533

1787×2075×1460



RSSL-19×25×1.6

25000

19

1653

1331

606

1873×2075×1560



RSSL-20×25×1.8

30000

20

1852

1598

727

2072×2075×1660









Packaging & Shipping

 Packaging according to custmer's requirement



Shipping Port: Shanghai



High performance air air heat exchanger unit







Application Field

 Applied in Drying Installations, Food Processing and Chemical Industry etc.



High performance air air heat exchanger unit





ISO Certificate

 High performance air air heat exchanger unit
