China Industrial Exhaust Heat Exchanger Supplier

China Industrial Exhaust Heat Exchanger Supplier thumbnail-1
China Industrial Exhaust Heat Exchanger Supplier thumbnail-2
China Industrial Exhaust Heat Exchanger Supplier thumbnail-3
China Industrial Exhaust Heat Exchanger Supplier thumbnail-4
China Industrial Exhaust Heat Exchanger Supplier thumbnail-5
China Industrial Exhaust Heat Exchanger Supplier thumbnail-6
China Industrial Exhaust Heat Exchanger Supplier photo-1
China Industrial Exhaust Heat Exchanger Supplier photo-2
China Industrial Exhaust Heat Exchanger Supplier photo-3
China Industrial Exhaust Heat Exchanger Supplier photo-4
China Industrial Exhaust Heat Exchanger Supplier photo-5
China Industrial Exhaust Heat Exchanger Supplier photo-6
US$ 12,000 - 18,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Quanbang
Contact Supplier Request Quote Chat Now
Wuxi Quanbang Energy Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Quanbang
Model Number RSSS
Structure Tube Heat Exchanger
Liquid Flow Rate customized
Maximum Working Pressure customized
Weight customized
Dimension(L*W*H) customized
Certification Other, TUV
Warranty 1 year
After-sales Service Provided No overseas service provided
  China industrial exhaust heat exchanger supplier
This kind of heat pipe heat exchangers are to reuse waste gas etc.  for energy saving . Mainly applied in Chemical Industry, Cereals and Oil Industry, Feed Processing Industry and so on.
Product Description

Type: Air to Air Heat Pipe Heat Exchanger



Function: recover the residual heat of exhaust gas



Distinguishing Feature:



  1. high efficiency of heat recovery

  2. startup under the small temperature difference and good isothermal condition

  3. hard to bring the acid dew point corrosion

  4. protecting the fresh air from pollution of waste gas



Material Feature:

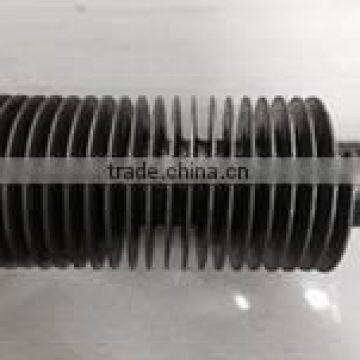

stainless steel base tube with stainless steel fins by high-frequency welding



Array: staggered arrangement



Fin Shape:





Performance Parameter



Model

Air Flow(m3/h)

Windward Tubes

Effective Height
(mm)

Heat Exchange Area
(m2)

Heat Load
(kw)

L×W×H
(mm)




RSSS-13×25×0.9

7500

13

992

399

182

1212×2075×860



RSSS-14×25×1

10000

14

1029

533

242

1249×2075×1060



RSSS-14×25×1.1

11000

14

1132

586

267

1352×2075×1060



RSSS-14×25×1.2

12000

14

1235

639

291

1455×2075×1060



RSSS-15×25×1.2

15000

15

1263

799

363

1483×2075×1260



RSSS-16×25×1.3

18000

16

1389

959

436

1609×2075×1360



RSSS-18×25×1.4

20000

18

1425

1065

485

1645×2075×1460



RSSS-18×25×1.5

22000

18

1567

1172

533

1787×2075×1460



RSSS-19×25×1.6

25000

19

1653

1331

606

1873×2075×1560



RSSS-20×25×1.8

30000

20

1852

1598

727

2072×2075×1660





Packaging & Shipping

Payment Terms: 30% T/T payment in advance, 70% T/T payment before delivery
Packing Condition: Standard export packing (wooden packing) or customized packaging



China industrial exhaust heat exchanger supplier

Application Field

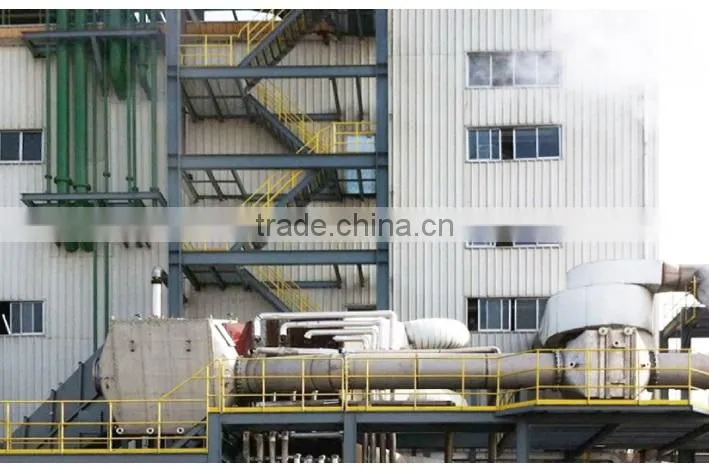

 Applied in Drying Installations, Food Processing and Chemical Industry etc.



China industrial exhaust heat exchanger supplier

ISO Certificate

 China industrial exhaust heat exchanger supplier
