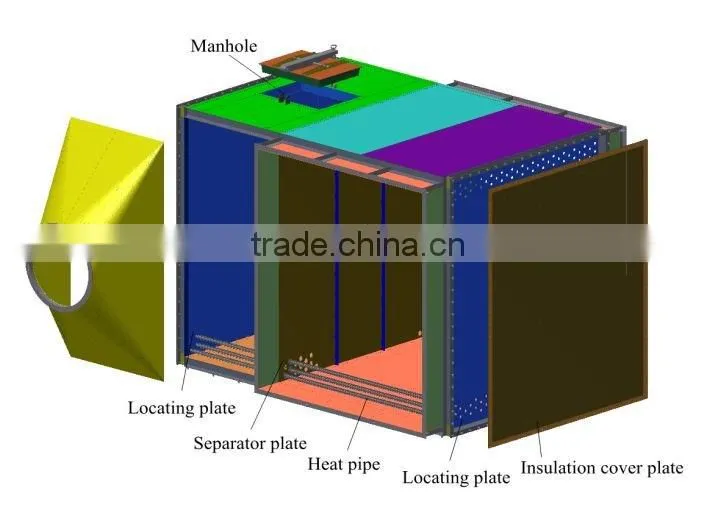

Heat recovery exchanger with high heat exchanger effectiveness
Heat transfer equipment are to recovers heat from waste heat source, such as waste water and waste gas in the factory. Mainly applied in chemical industry, cereals and oils industry, feed processing industry and so on.
Type: air to air heat pipe heat exchanger
Function: recover the residual heat of exhaust gas
Operation temperature: 70℃~200℃
Distinguishing feature:
1. high efficiency of heat recovery
2. startup under the small temperature difference and good isothermal condition
3. hard to bring the acid dew point corrosion
4. protecting the fresh air from pollution of waste gas
Material feature: stainless steel base tube with stainless steel fins by high-frequency welding
Array: staggered arrangement
Heat pipe
Fin shape
Performance Parameter
Model |
Air Flow(m3/h) |
Windward Tubes |
Effective Length |
Heat Exchange Area |
Total Heat Load |
L×W×H |
|
RSSS-13×25×0.9 |
7500 |
13 |
992 |
399 |
182 |
1212×2075×860 |
|
RSSS-14×25×1 |
10000 |
14 |
1029 |
533 |
242 |
1249×2075×1060 |
|
RSSS-14×25×1.1 |
11000 |
14 |
1132 |
586 |
267 |
1352×2075×1060 |
|
RSSS-14×25×1.2 |
12000 |
14 |
1235 |
639 |
291 |
1455×2075×1060 |
|
RSSS-15×25×1.2 |
15000 |
15 |
1263 |
799 |
363 |
1483×2075×1260 |
|
RSSS-16×25×1.3 |
18000 |
16 |
1389 |
959 |
436 |
1609×2075×1360 |
|
RSSS-18×25×1.4 |
20000 |
18 |
1425 |
1065 |
485 |
1645×2075×1460 |
|
RSSS-18×25×1.5 |
22000 |
18 |
1567 |
1172 |
533 |
1787×2075×1460 |
|
RSSS-19×25×1.6 |
25000 |
19 |
1653 |
1331 |
606 |
1873×2075×1560 |
|
RSSS-20×25×1.8 |
30000 |
20 |
1852 |
1598 |
727 |
2072×2075×1660 |
Heat recovery of exhaust gas
