Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | Quanbang | Model Number | ZCTT | |
| Structure | Tube Heat Exchanger | Liquid Flow Rate | Customized Made | |
| Maximum Working Pressure | Customised0 | |||
| Weight | customized | Dimension(L*W*H) | customized | |
| Certification | Other, TUV | |||
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
customized packaging
Product Description
Copper finned tube surface condenser

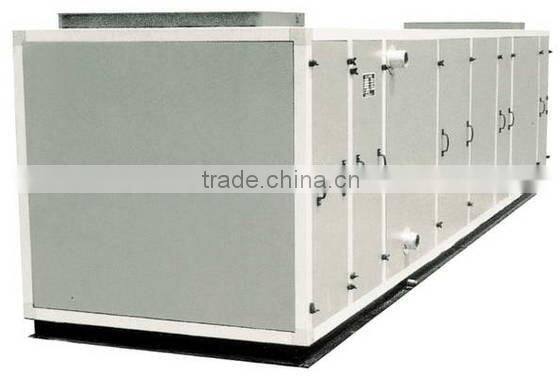

This kind of condenser is to cool air with chilled water and condense water in the air to achieve dehumidification. Mainly applied in HVAC industry, such as air handler and constant temperature and humidity system which requires cleaning, as well as high-grade business buildings and hotel.
Structure: Finned Tube Heat Exchanger
Type:Compact High Conduction Heat Exchanger
Function: cooling and condensing the air for dehumidification
Media: Cold Water
Pressure-bearing: medium level
Heat Transfer Feature: excellent, high heat transfer coefficient

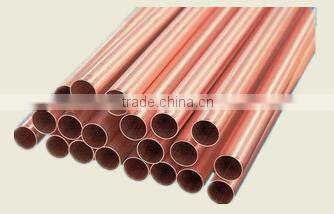

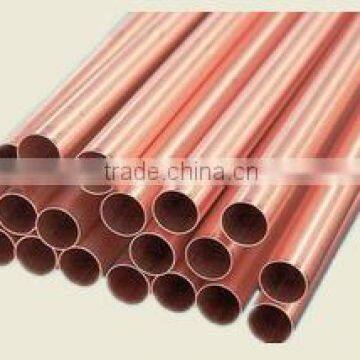

Material Feature: expanded copper tube with copper fins
Fin & Tube:
Performance Parameter
Model | Air Flow(m3/h) | Windward Tubes | Effective Height | Heat Exchange Area (m2) | Header Tube Diameter | Total Heat Load | Water Flow(m3/h) | L×W×H (mm) |
(kw) | ||||||||
ZCTT-4 | 208 | 4 | 152 | 4 | φ48×3.5 | 0.72 | 0.12 | 252×228×260 |
ZCTT-6 | 468 | 6 | 228 | 8 | φ48×3.5 | 1.62 | 0.28 | 328×304×260 |
ZCTT-8 | 832 | 8 | 304 | 15 | φ48×3.5 | 2.88 | 0.50 | 404×380×260 |
ZCTT-10 | 1300 | 10 | 380 | 23 | φ48×3.5 | 4.50 | 0.77 | 480×456×260 |
ZCTT-12 | 1871 | 12 | 456 | 33 | φ48×3.5 | 6.48 | 1.11 | 556×532×260 |
ZCTT-14 | 2547 | 14 | 532 | 45 | φ61×4 | 8.82 | 1.52 | 632×608×260 |
ZCTT-16 | 3327 | 16 | 608 | 58 | φ61×4 | 11.52 | 1.98 | 708×684×260 |
ZCTT-18 | 4211 | 18 | 684 | 74 | φ76×4 | 14.58 | 2.51 | 784×760×260 |
ZCTT-20 | 5198 | 20 | 760 | 91 | φ76×4 | 18.00 | 3.09 | 860×836×260 |
ZCTT-22 | 6290 | 22 | 836 | 110 | φ76×4 | 21.77 | 3.74 | 936×912×260 |
ZCTT-24 | 7486 | 24 | 912 | 131 | φ76×4 | 25.91 | 4.46 | 1012×988×260 |
ZCTT-26 | 8785 | 26 | 988 | 154 | φ76×4 | 30.41 | 5.23 | 1088×1064×260 |
ZCTT-28 | 10189 | 28 | 1064 | 179 | φ76×4 | 35.27 | 6.07 | 1164×1140×260 |
ZCTT-30 | 11696 | 30 | 1140 | 205 | φ89×4.5 | 40.49 | 6.96 | 1240×1216×280 |
ZCTT-32 | 13308 | 32 | 1216 | 234 | φ89×4.5 | 46.07 | 7.92 | 1316×1292×280 |
ZCTT-34 | 15023 | 34 | 1292 | 264 | φ89×4.5 | 52.01 | 8.94 | 1392×1368×280 |
ZCTT-36 | 16843 | 36 | 1368 | 296 | φ89×4.5 | 58.30 | 10.03 | 1468×1444×280 |
ZCTT-38 | 18766 | 38 | 1444 | 330 | φ108×4.5 | 64.96 | 11.17 | 1544×1520×280 |
ZCTT-40 | 20794 | 40 | 1520 | 365 | φ108×4.5 | 71.98 | 12.38 | 1620×1596×280 |
ZCTT-42 | 22925 | 42 | 1596 | 403 | φ108×4.5 | 79.36 | 13.65 | 1696×1672×280 |
ZCTT-44 | 25160 | 44 | 1672 | 442 | φ108×4.5 | 87.10 | 14.98 | 1772×1748×280 |
ZCTT-46 | 27500 | 46 | 1748 | 483 | φ108×4.5 | 95.19 | 16.37 | 1848×1824×280 |
Copper finned tube surface condenser is mainly applied in HVAC industry
Company Profile
Wuxi Quanbang Energy Technology CO.,LTD is a technology enterprise dedicated in heat exchanges industry which has many years professional experience of design and manufacture. Our products are wildly applied in cereals and oil processing, chemical production and boiler etc. We have risen steadily as one of the pioneers and leaders in this industry in china.
