Condition New
Place of Origin Jiangsu, China
Brand Name Quanbang
Model Number YCCL
Structure Tube Heat Exchanger
Liquid Flow Rate customized
Maximum Working Pressure 0.6Mpa
Weight customized
Dimension(L*W*H) customized
Certification Other, TUV
Warranty 1 year
After-sales Service Provided No overseas service provided

  Aluminum tube fin radiator manufacturers china



Radiator is a heat-transfer equipment using working media to heat the ambient air to the required temperature.

Product Description

Type: Compact Heat Exchanger of Radiator



Heating source: low/medium pressure steam (0.3-2.5MPa); conduction oil; hot water



Pressure-bearing: high



Heat transfer Function: medium level

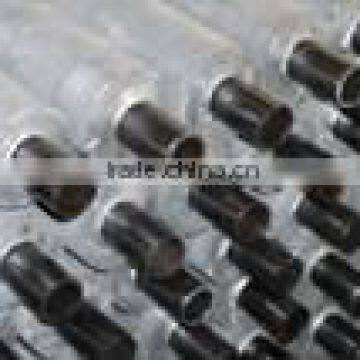

Material feature: carbon steel tube with extruded aluminum fin, outer frame spray painted.



Array: staggered arrangement

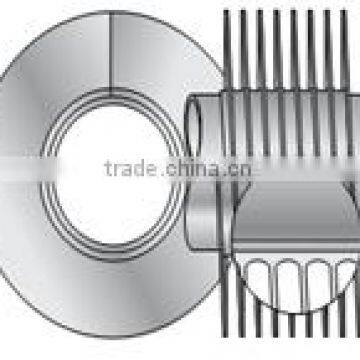

Fin Shape:

 Aluminum tube fin radiator manufacturers china





     Performance Parameter

Model

Air Flow(m3/h)

Windward Tubes

Effective Height(mm)

Heat Exchange Area
(m2)

Header Tube Diameter
(mm)

Total Heat Load (kw)

Length×Width×Height
(mm)

Steam

Conduction Oil

Hot Water

YCCL-14×6×0.5

5000

14

575

47

φ57×3.5

156

104

69

900×600×679

YCCL-15×6×0.8

8000

15

823

72

φ76×4

249

166

111

1000×600×923

YCCL-17×6×0.9

10000

17

926

92

φ76×4

312

208

138

1100×600×1026

YCCL-20×6×1.1

15000

20

1157

135

φ89×4.5

467

312

208

1300×600×1257

YCCL-22×6×1.2

18000

22

1282

164

φ89×4.5

561

374

249

1400×600×1382

YCCL-24×6×1.3

20000

24

1323

185

φ89×4.5

623

415

277

1500×600×1423

YCCL-27×6×1.4

25000

27

1447

227

φ114×6

779

519

346

1700×600×1547

YCCL-29×6×1.5

28000

29

1525

257

φ114×6

872

582

388

1800×600×1625

YCCL-29×6×1.6

30000

29

1634

276

φ114×6

935

623

415

1800×600×1734





Packaging & Shipping

Packaging according to custmer's requirement



Shipping Port: Shanghai





Aluminum tube fin radiator manufacturers china

Application Field

 Applied in Pharmacy, Chemical. Electronic Industies etc.



 Aluminum tube fin radiator manufacturers china


ISO Certificate

 Aluminum tube fin radiator manufacturers china
