Stainless steel tube fins heat exchanger manufacturer
This kind of heat exchangers are to use steam, conduction oil and hot water to heat air to the required temperature. Mainly applied in chemical industry, cereals and oils industry, feed processing industry and so on.
Type: air to air heat pipe heat exchanger
Function: recover the residual heat of exhaust gas
Operation temperature: 70℃~200℃
Distinguishing feature:
1. high efficiency of heat recovery
2. startup under the small temperature difference and good isothermal condition
3. hard to bring the acid dew point corrosion
4. protecting the fresh air from pollution of waste gas

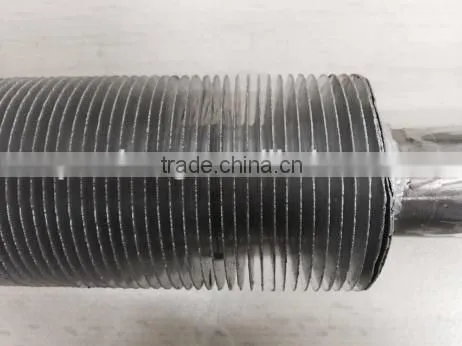

Material feature: stainless steel base tube with extruded aluminum fins
Array: staggered arrangement
Heat pipe:
Fin shape:
Performance Parameter
Model |
Air Flow(m3/h) |
Windward Tubes |
Effective Height |
Heat Exchange Area |
Heat Load |
L×W×H |
|
RSSL-13×25×0.9 |
7500 |
13 |
992 |
399 |
182 |
1212×2075×860 |
|
RSSL-14×25×1 |
10000 |
14 |
1029 |
533 |
242 |
1249×2075×1060 |
|
RSSL-14×25×1.1 |
11000 |
14 |
1132 |
586 |
267 |
1352×2075×1060 |
|
RSSL-14×25×1.2 |
12000 |
14 |
1235 |
639 |
291 |
1455×2075×1060 |
|
RSSL-15×25×1.2 |
15000 |
15 |
1263 |
799 |
363 |
1483×2075×1260 |
|
RSSL-16×25×1.3 |
18000 |
16 |
1389 |
959 |
436 |
1609×2075×1360 |
|
RSSL-18×25×1.4 |
20000 |
18 |
1425 |
1065 |
485 |
1645×2075×1460 |
|
RSSL-18×25×1.5 |
22000 |
18 |
1567 |
1172 |
533 |
1787×2075×1460 |
|
RSSL-19×25×1.6 |
25000 |
19 |
1653 |
1331 |
606 |
1873×2075×1560 |
|
RSSL-20×25×1.8 |
30000 |
20 |
1852 |
1598 |
727 |
2072×2075×1660 |
Mainly applied in chemical industry, cereals and oils industry, feed processing industry and so on.
