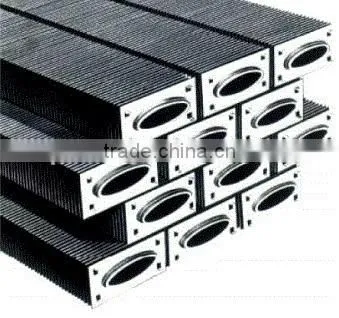

Carbon steel fin and tube heat exchanger design
This kind of heat exchangers are to use steam, conduction oil and hot water etc. to heat air to the required temperature. Mainly applied in chemical industry, cereals and oils industry, feed processing industry and so on.
Type: High Conductive Compact Heat Exchanger
Heating Source: low/medium Pressure steam (0.3-2.5MPa); conduction oil
Pressure-bearing: High
Heat transfer Function: good heat transfer; a large surface area in a small volume; low wind resistance
Tube Material: carbon steel

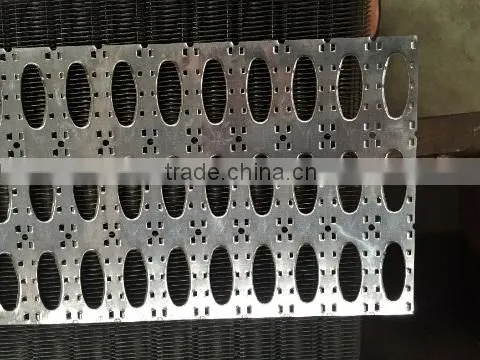

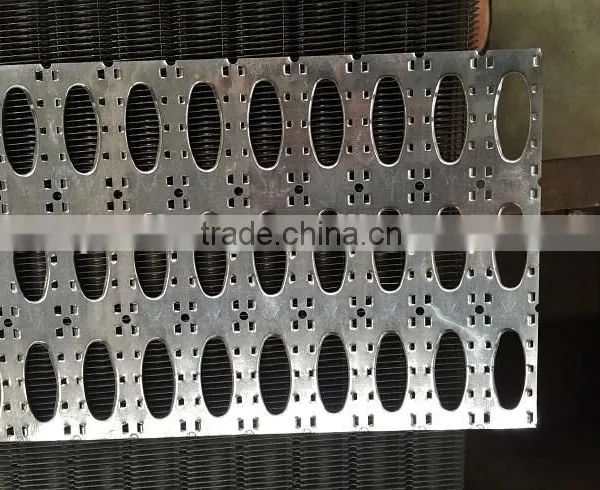

Fin Materal: galvanized carbon steel
Performance Parameter
Model |
Air Flow(m3/h) |
Windward Tubes |
Effective Height |
Heat Exchange Area |
Header Tube Diameter |
Total Heat Load(kw) |
L×W×H |
|
Steam |
Conduction oil |
|||||||
TcSCC-25×4×0.5 |
6000 |
25 |
520 |
47 |
φ61×4 |
208 |
125 |
740*300*930 |
TcSCC-25×4×1 |
12000 |
25 |
1040 |
94 |
φ61×4 |
415 |
249 |
740*300*1450 |
TcSCC-50×4×0.8 |
18000 |
50 |
770 |
139 |
φ76×4 |
623 |
374 |
1390*300*1180 |
TcSCC-50×4×1 |
24000 |
50 |
1025 |
185 |
φ76×4 |
831 |
498 |
1390*300*1435 |
TcSCC-50×4×1.3 |
30000 |
50 |
1282 |
231 |
φ76×4 |
1039 |
623 |
1390*300*1692 |
TcSCC-65×4×1.2 |
36000 |
65 |
1184 |
277 |
φ76×4 |
1246 |
748 |
1780*300*1594 |
TcSCC-65×4×1.4 |
42000 |
65 |
1380 |
323 |
φ89×4.5 |
1454 |
872 |
1780*300*1790 |
TcSCC-65×4×1.6 |
50000 |
65 |
1643 |
384 |
φ89×4.5 |
1731 |
1039 |
1780*300*2052 |
TcSCC-65×4×1.8 |
60000 |
65 |
1793 |
420 |
φ89×4.5 |
2077 |
1246 |
1780×300×2203 |
TcSCC-75×4×1.8 |
70000 |
75 |
1813 |
490 |
φ114×6 |
2423 |
1454 |
2040*300*2223 |
TcSCC-75×4×2.1 |
80000 |
75 |
2072 |
559 |
φ114×6 |
2769 |
1662 |
2040*300*2482 |
TcSCC-82×4×2.1 |
90000 |
82 |
2132 |
629 |
φ114×6 |
3116 |
1869 |
2222*300*2542 |

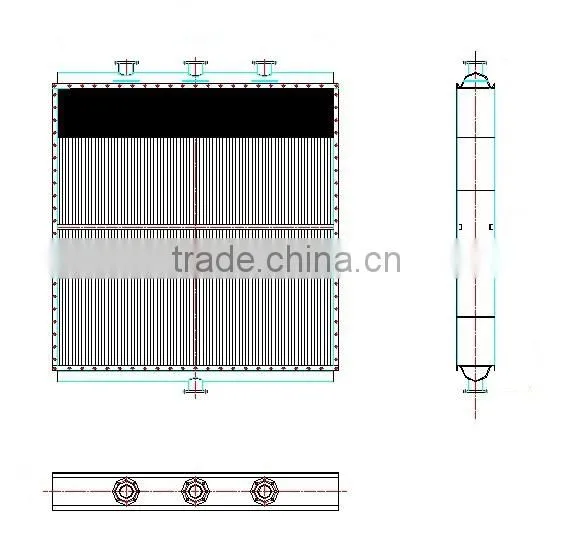

Drawing
1. High temperature air heating in drying industry such as for feedstuff, cereals and oil, chemical material and so on
2. Special requirements in build-in system (small space, high wind speed and low windage)
3. If the wind temperature is higher than 200 oC, use conduction oil as heating source (in chemical, textile industry)
