Copper Fin Tube Air Heater Heat Exchanger

Copper Fin Tube Air Heater Heat Exchanger thumbnail-1
Copper Fin Tube Air Heater Heat Exchanger thumbnail-2
Copper Fin Tube Air Heater Heat Exchanger thumbnail-3
Copper Fin Tube Air Heater Heat Exchanger thumbnail-4
Copper Fin Tube Air Heater Heat Exchanger thumbnail-5

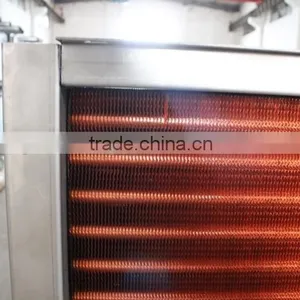

Copper Fin Tube Air Heater Heat Exchanger thumbnail-6
Copper Fin Tube Air Heater Heat Exchanger photo-1

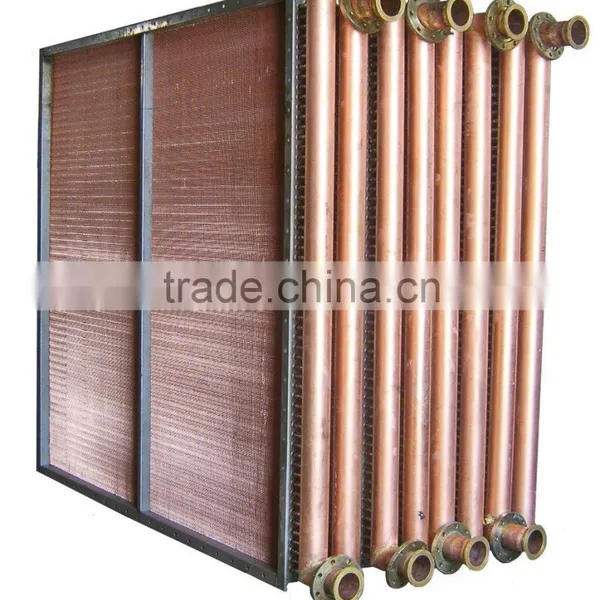

Copper Fin Tube Air Heater Heat Exchanger photo-2
Copper Fin Tube Air Heater Heat Exchanger photo-3

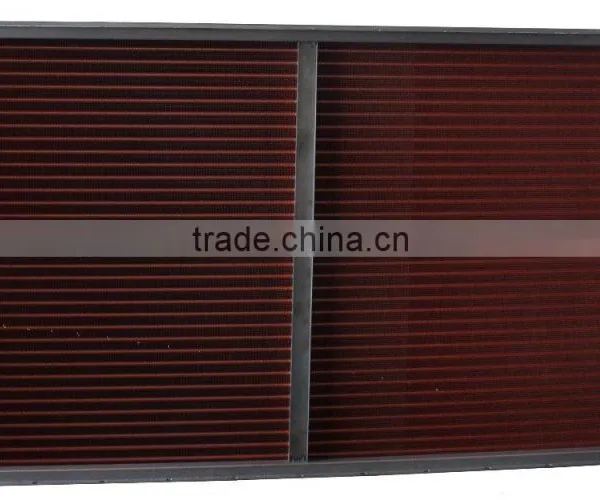

Copper Fin Tube Air Heater Heat Exchanger photo-4
Copper Fin Tube Air Heater Heat Exchanger photo-5

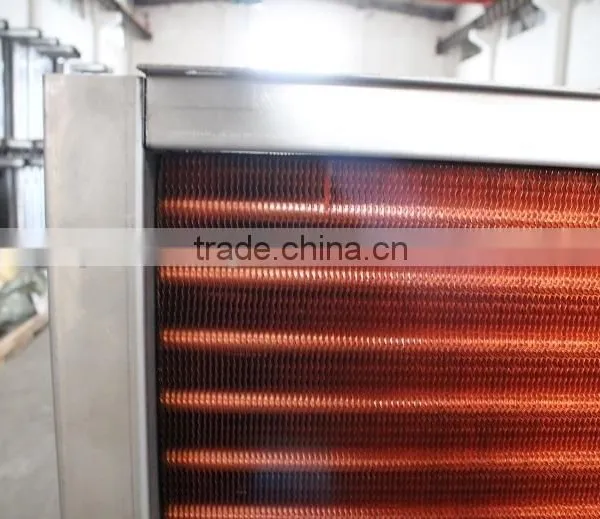

Copper Fin Tube Air Heater Heat Exchanger photo-6
US$ 200 - 5,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Quanbang
Contact Supplier Request Quote Chat Now
Wuxi Quanbang Energy Technology Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Quanbang
Model Number ZCTT
Structure Tube Heat Exchanger
Liquid Flow Rate customized
Maximum Working Pressure customized
Weight customized
Dimension(L*W*H) customized
Certification Other, TUV
Warranty 1 year
After-sales Service Provided No overseas service provided
 Copper fin tube air heater heat exchanger
This kind of heat exchangers are to use steam, conduction oil and hot water etc. to heat air to the required temperature. Mainly applied in Chemical Industry, Cereals and Oil Industry, Feed Processing Industry and so on.
Product Description



Type: High Conductive Compact Heat Exchanger



Heat Source: hot water



Pressure-bearing: media level



Heat transfer Function: excellent, high heat transfer coefficient



Material Feature: copper tube with copper fins



 Fin and Tube:




Performance Parameter

Model

Air Flow(m3/h)

Windward Tubes

Effective Height
(mm)

Heat Exchange Area     (m2)

Header Tube Diameter
(mm)

Total Heat Load

Water Flow(m3/h)

L×W×H

(mm)

   (kw)

ZCTT-4

208

4

152

4

φ48×3.5

0.72

0.12

252×228×260

ZCTT-6

468

6

228

8

φ48×3.5

1.62

0.28

328×304×260

ZCTT-8

832

8

304

15

φ48×3.5

2.88

0.50

404×380×260

ZCTT-10

1300

10

380

23

φ48×3.5

4.50

0.77

480×456×260

ZCTT-12

1871

12

456

33

φ48×3.5

6.48

1.11

556×532×260

ZCTT-14

2547

14

532

45

φ61×4

8.82

1.52

632×608×260

ZCTT-16

3327

16

608

58

φ61×4

11.52

1.98

708×684×260

ZCTT-18

4211

18

684

74

φ76×4

14.58

2.51

784×760×260

ZCTT-20

5198

20

760

91

φ76×4

18.00

3.09

860×836×260

ZCTT-22

6290

22

836

110

φ76×4

21.77

3.74

936×912×260

ZCTT-24

7486

24

912

131

φ76×4

25.91

4.46

1012×988×260

ZCTT-26

8785

26

988

154

φ76×4

30.41

5.23

1088×1064×260

ZCTT-28

10189

28

1064

179

φ76×4

35.27

6.07

1164×1140×260

ZCTT-30

11696

30

1140

205

φ89×4.5

40.49

6.96

1240×1216×280

ZCTT-32

13308

32

1216

234

φ89×4.5

46.07

7.92

1316×1292×280

ZCTT-34

15023

34

1292

264

φ89×4.5

52.01

8.94

1392×1368×280

ZCTT-36

16843

36

1368

296

φ89×4.5

58.30

10.03

1468×1444×280

ZCTT-38

18766

38

1444

330

φ108×4.5

64.96

11.17

1544×1520×280

ZCTT-40

20794

40

1520

365

φ108×4.5

71.98

12.38

1620×1596×280

ZCTT-42

22925

42

1596

403

φ108×4.5

79.36

13.65

1696×1672×280

ZCTT-44

25160

44

1672

442

φ108×4.5

87.10

14.98

1772×1748×280

ZCTT-46

27500

46

1748

483

φ108×4.5

95.19

16.37

1848×1824×280
