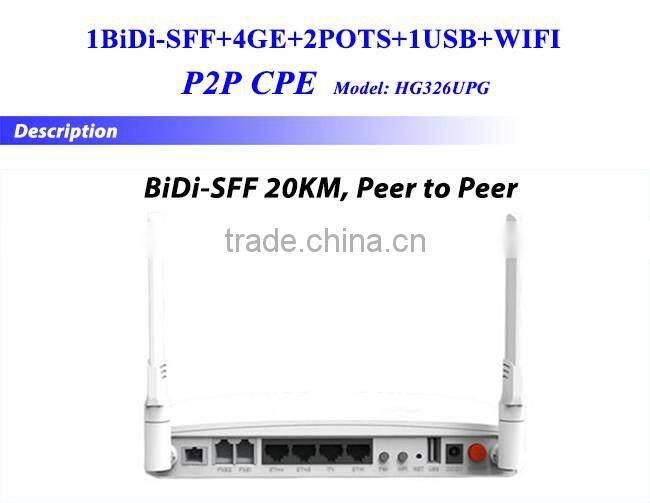

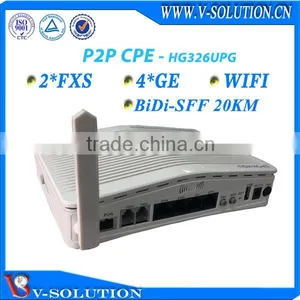

Help CenterNetwork Solution Fiber to Home 4GE+2POTS+WiFi+USB Port P2P Peer to Peer CPE With VoIP
Related Products
-
FTTH Solution 1BiDi-SFF 20KM 4GE+2POTS+WiFi+USB Port Wireless P2P Peer to Peer CPENegotiableMOQ: 1 Piece -
FTTH P2P CPE GIGABIT GATEWAY With 4GE+2POTS+WiFi+CATV for Triple Play ServiceNegotiableMOQ: 1 Piece
-
1000FX+4GE+2POTS+CATV Triple Play P2P CPENegotiableMOQ: 1 Unit
-
4FE+CATV GEPON ONU CATV Receiver Fiber Optical Node Compatible With ZTE/Huawei OLTNegotiableMOQ: 1 Piece
-
High Quality Ftth Epon Onu With 1 GE Port V-SolutionNegotiableMOQ: 1 Piece
Parameter Name |
Hardware Parameter |
P2P | |
Chipset |
BCM68380 Series |
Optical Type |
BiDi-SFF 20KM SC/PC SC single-mode/single-fiber, symmetric 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm |
Optical Power |
Tx Power -9 to -2 dBm Rx Sensitivity -22 dBm |
Interface Type |
4*10/100Mbps or 4*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector 2 POTS, RJ11 connector |
Wireless |
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antennas |
Indicators |
12, For POWER,LINK,WAN,WiFi,Phone,Lan,Pair,USB |
Parameter Name |
Software Parameter |
P2P | |
LAN |
Support Port rate limiting Support Loop detection |
VLAN |
Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode Support VLAN QinQ mode |
Multicast |
Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping |
QoS |
Support 4 queues Support SP and WRR Support 802.1P Support DSCP |
L3 |
Support IPv4,IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server |
DHCP |
Support DHCP Server |
VOIP |
Support SIP protocol Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax/Modem, bypass fax, and T38 fax Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing Support Line testing according to GR-909 |
Wireless |
Support 802.11b/g/n and Mixed mode Support 4 SSID Support No-auth,WEP,WPA-PSK and WPA2-PSK function with AES,TKIP encryption |
Performance |
Data loss: <1*10E-12 Call loss: <0.01% |
Security |
Support Firewall Support Mac filter Support ACL Support URL filter |
Management |
Support WEB Support TR069 Support TELNET Support CLI |
For more information, please feel free to contact me.
SkypeID: sophia.vss | WhatsApp ID: 008613802447798
