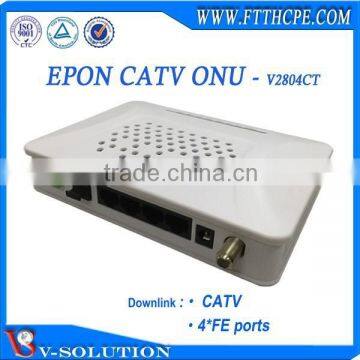

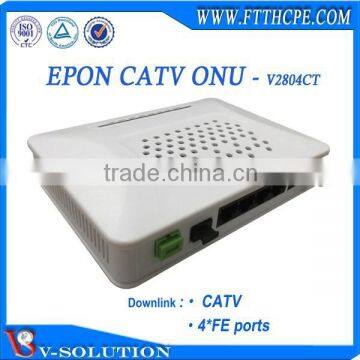

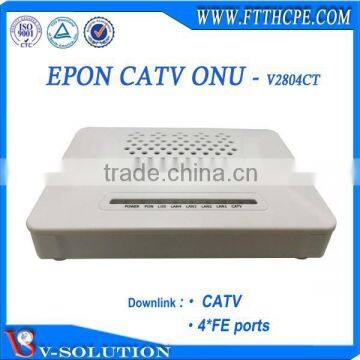

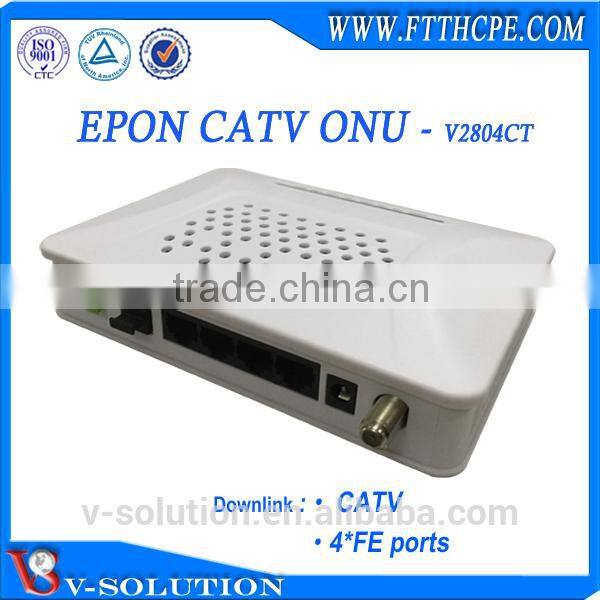

4FE+CATV GEPON ONU CATV Receiver Fiber Optical Node compatible with ZTE/Huawei OLT
- 1000 Piece / Pieces per Month
- Guangzhou
- Credit Card
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Guangdong, China | Brand Name: | V-Solution | Model Number: | V2804CT |
Product Description
Introduction
EPON SFU terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. They were developed by V-SOLUTION independently. These boxes are based on the mature Gigabit EPON technology, which have high ratio of performance to price.They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.
Technical Parameters
Parameter Name | Hardware Parameter |
EPON | |
Chipset | Cortina 8022 Series |
Optical type | PON : SC/PC single-mode/single-fiber, symmetric 1.25Gbps CATV: SC/APC |
Wavelength | Tx 1310nm, Rx 1490nm,CATV Rx 1550nm |
Sensitivity | <-27dBm(PX20+) PON |
Overload | >-3dBm(PX20+) PON |
CATV | -15~+2dBm |
Interface Type | 4*10/100Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector |
RF | SCTE F |
Indicators | 8, For POWER,PON ,LOS,Lan,CATV |
Parameter Name | Software Parameter |
EPON | |
Basic | Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth |
Alarm | Support Dying Gasp Support PortLoopDetect Support Eth Port Los |
LAN | Support Port rate limiting Support Loop detection Support Flow control Support Storm control Support Mac limiting(max mac limit 64) |
VLAN | Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 16 vlans) Support VLAN 1:1 translation mode(max 16 vlans) |
Multicast | Support IGMPv1/v2 Support IGMP Snooping Max Multicast vlan 8 Max Multicast Group 256 |
QoS | Support 4 queues Support SP and WRR Support 802.1P Classification: D-MAC/S-MAC/D-IP/S-IP/L4-S-Port/L4-D-Port/Vlan/Cos/Ether Type/DSCP |
CATV | RF Video Output Bandwidth (MHz):45~1000 RF Output Level(dBuv):85 AGC Dynamic Range(dBm):-6~+2 |
Management | Support CTC OAM 2.0 and 2.1 Support WEB Support TELNET Support CLI |
Throughput | Upstream = 400Mbps Downstream= 400Mbps |
Packet lost | 14Hours /Lost 0 |

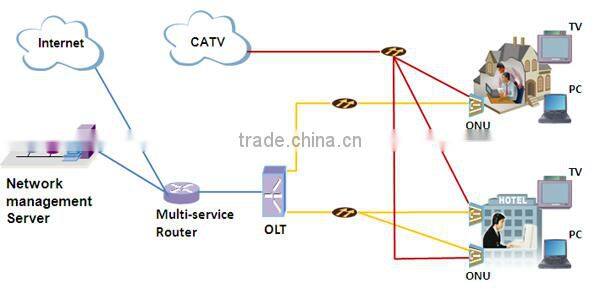

Application Chart
1. Shipping: We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS.
2. Packaging: standard carton which suitable for air/ sea transportation.
1. Quick Reply: Your inquiry related to our products or price will be replied within 24 hours.
2. OEM&ODM: We can help you to design and put your good idea into products.
3. Warranty: 365 days
V-SOLUTION Telecommunication Technology Co., Ltd. is a professional manufacturer in China Guangzhou. Our company has established business relations with over 50 countries worldwide and more than 100 companies . We devote to product GEPON ONU, GEPON OLT, GPON ONU, VoIP Gateway, Fiber CPE, Wifi Module, and so on.
Factory
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Sorry that V-Solution is not available to new customer.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test, at least 100pcs/models after sample order.
5. OEM/ODM Service is available?
Yes, V-Solution have strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW Guangzhou
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other
brands.
Any other questions, pls feel free to contact me!!! My Skype ID: ali-vsolution
