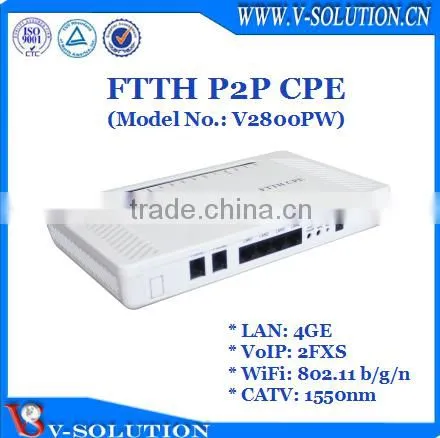

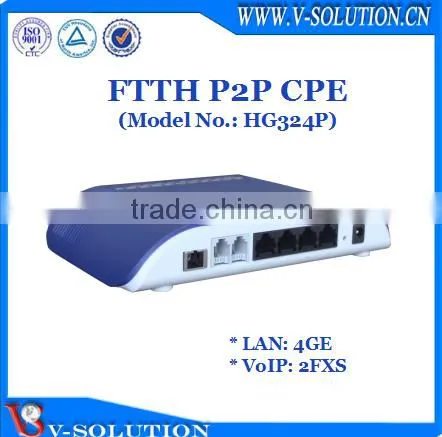

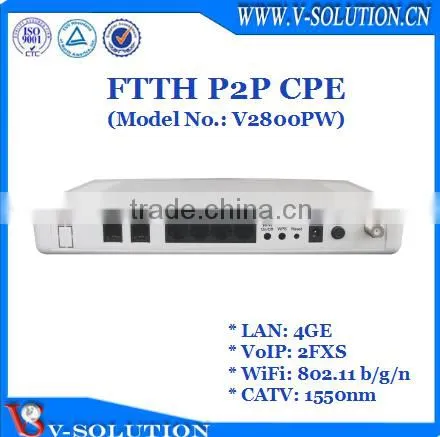

FTTH P2P CPE GIGABIT GATEWAY
For Triple Play Service
Product Overview
Technical Parameter
Parameter Name |
Hardware Parameter |
|
P2P |
Chipset |
BCM68380 Series |
Optical Type |
SC/APC SC single-mode/single-fiber, symmetric 1.25Gbps |
Wavelength |
Tx 1310nm, Rx 1490nm CATV 1550nm |
Optical Power |
Tx Power -9 to -2 dBm Rx Sensitivity -22 dBm CATV -8 to +2 dBm |
Interface Type |
4*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector 2 POTS, RJ11 connector 1 SCTE F connector |
Wireless |
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 internal antennas |
Indicators |
12, For POWER,system,LINK,WiFi,Phone,LAN,Pair,CATV |
Parameter Name |
Software Parameter |
|
P2P |
LAN |
Support Port rate limiting Support Loop detection |
VLAN |
Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode Support VLAN QinQ mode |
Multicast |
Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping |
QoS |
Support 4 queues Support SP and WRR Support 802.1P Support DSCP |
L3 |
Support IPv4,IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server |
DHCP |
Support DHCP Server |
VOIP |
Support SIP protocol Support Voice coding: ITU-T G.711/G.723/G.726/G.729, auto-negotiate with call agent Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax/Modem, bypass fax, and T38 fax Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing Support Line testing according to GR-909 |
Wireless |
Support 802.11b/g/n and Mixed mode Support 4 SSID Support No-auth,WEP,WPA-PSK and WPA2-PSK function with AES,TKIP encryption |
CATV |
RF Video Output Bandwidth (MHz):45~875 RF Output Level(dBuv):80 AGC Dynamic Range(dBm):-6~+2 |
Performance |
Data loss: <1*10E-12 Call loss: <0.01% |
Security |
Support Firewall Support Mac filter Support ACL Support URL filter |
Management |
Support WEB Support TR069 Support TELNET Support CLI |
