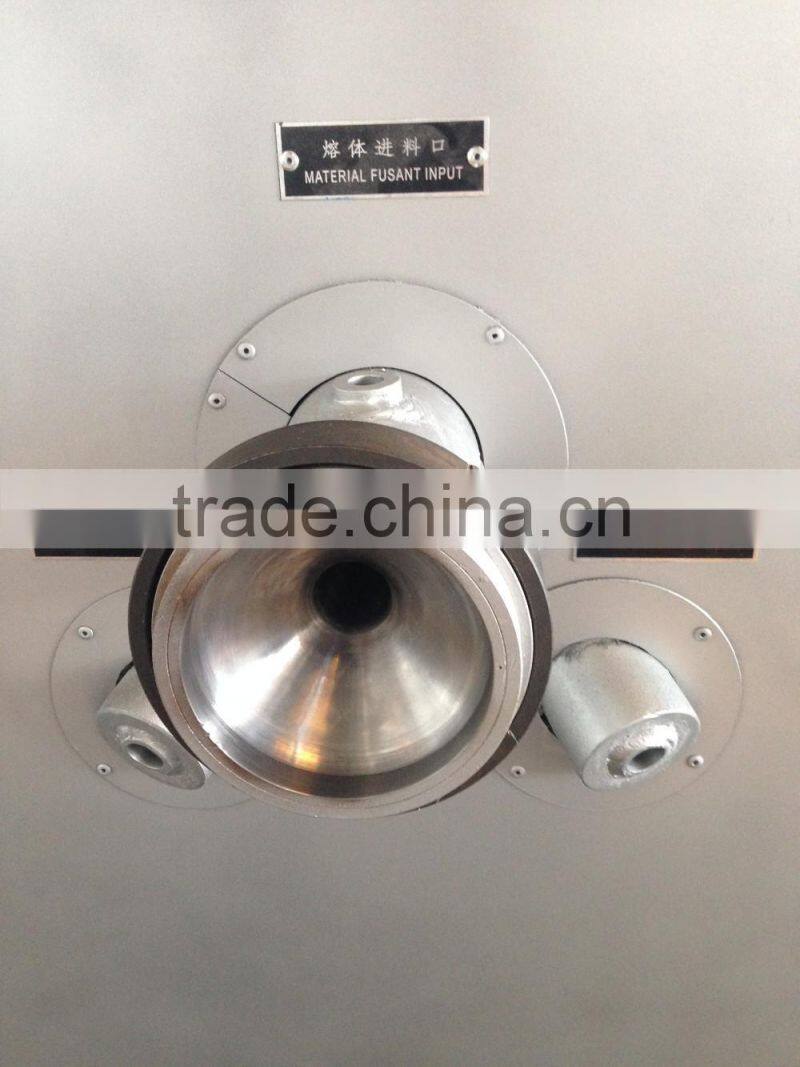

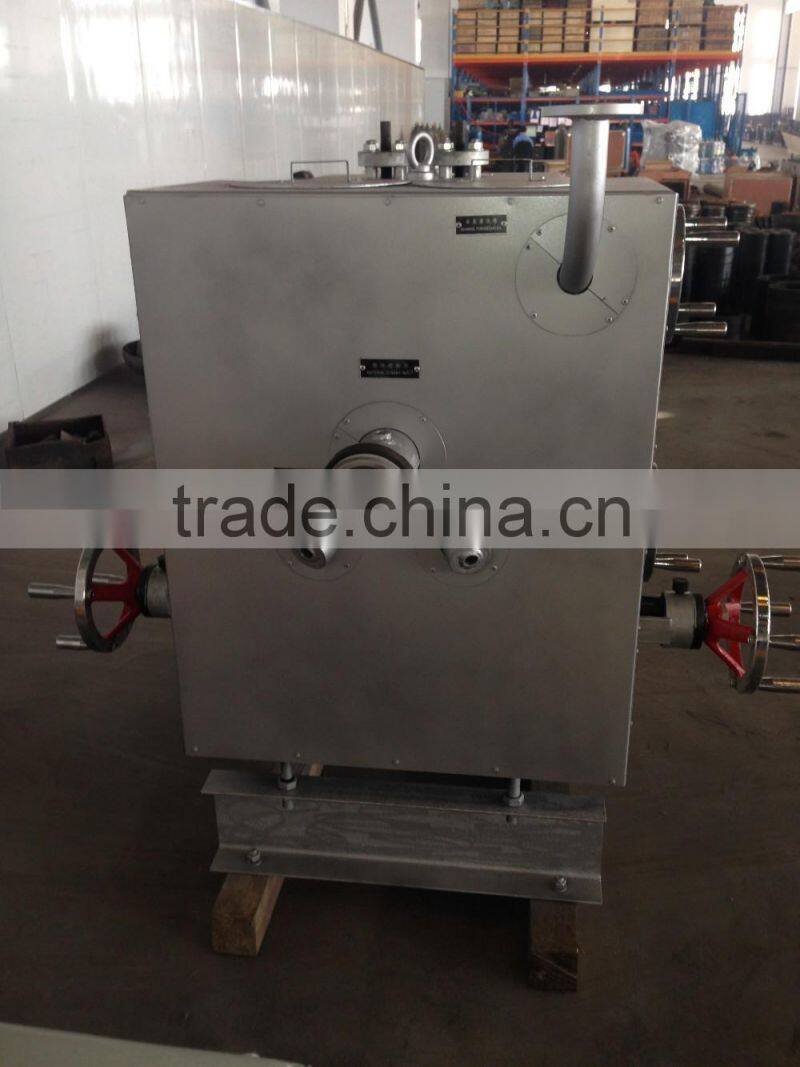

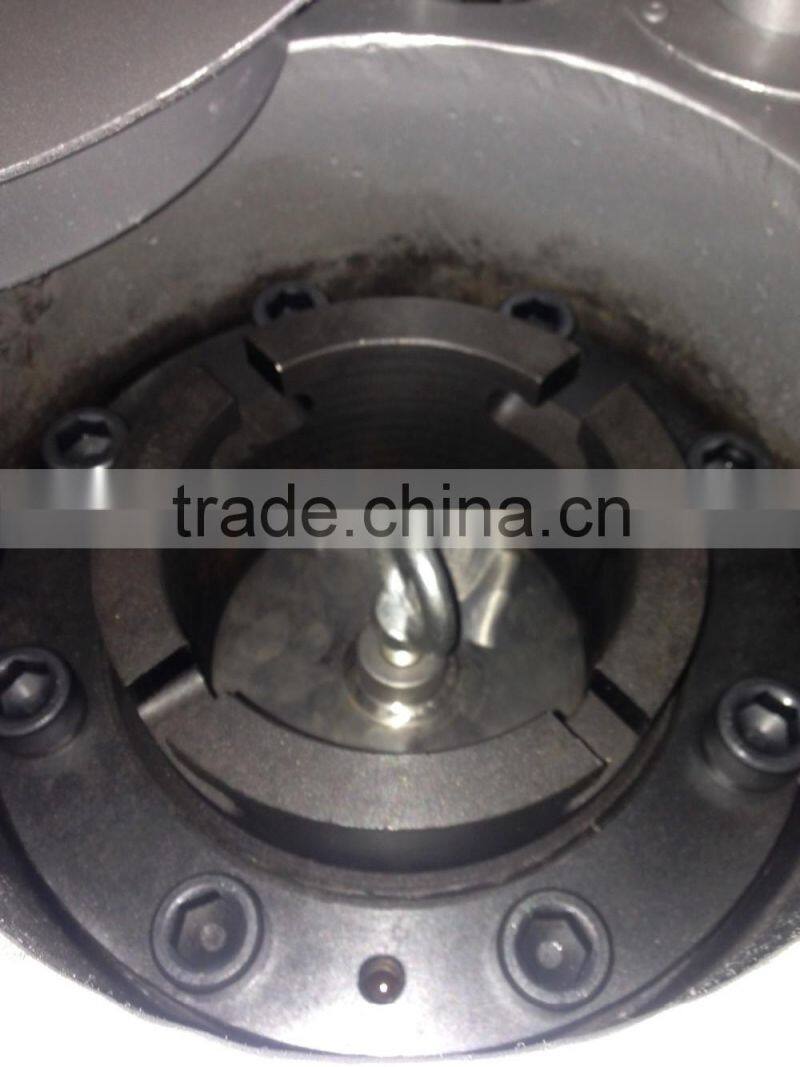

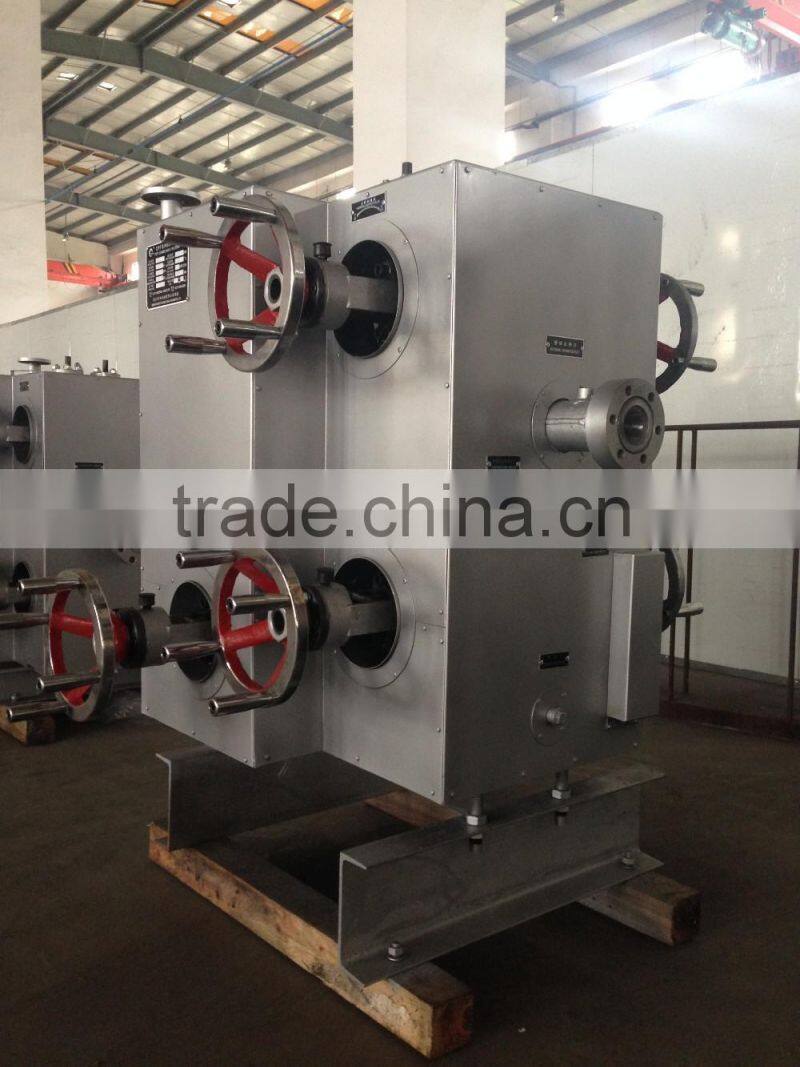

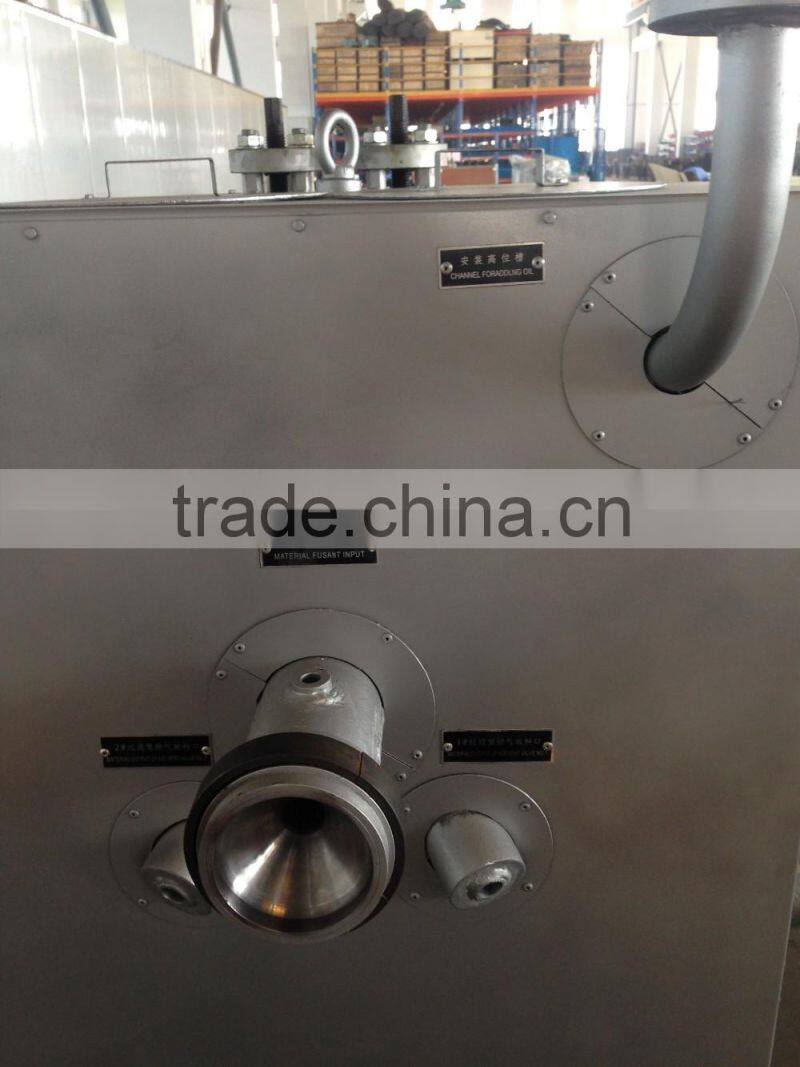

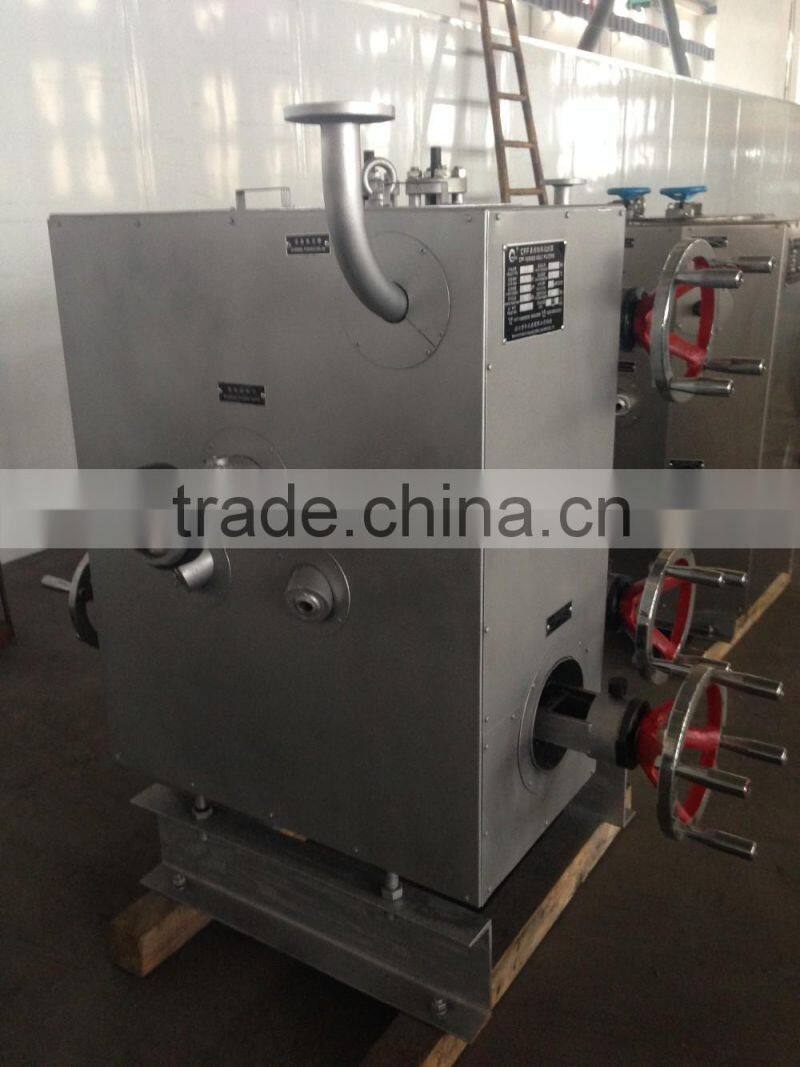

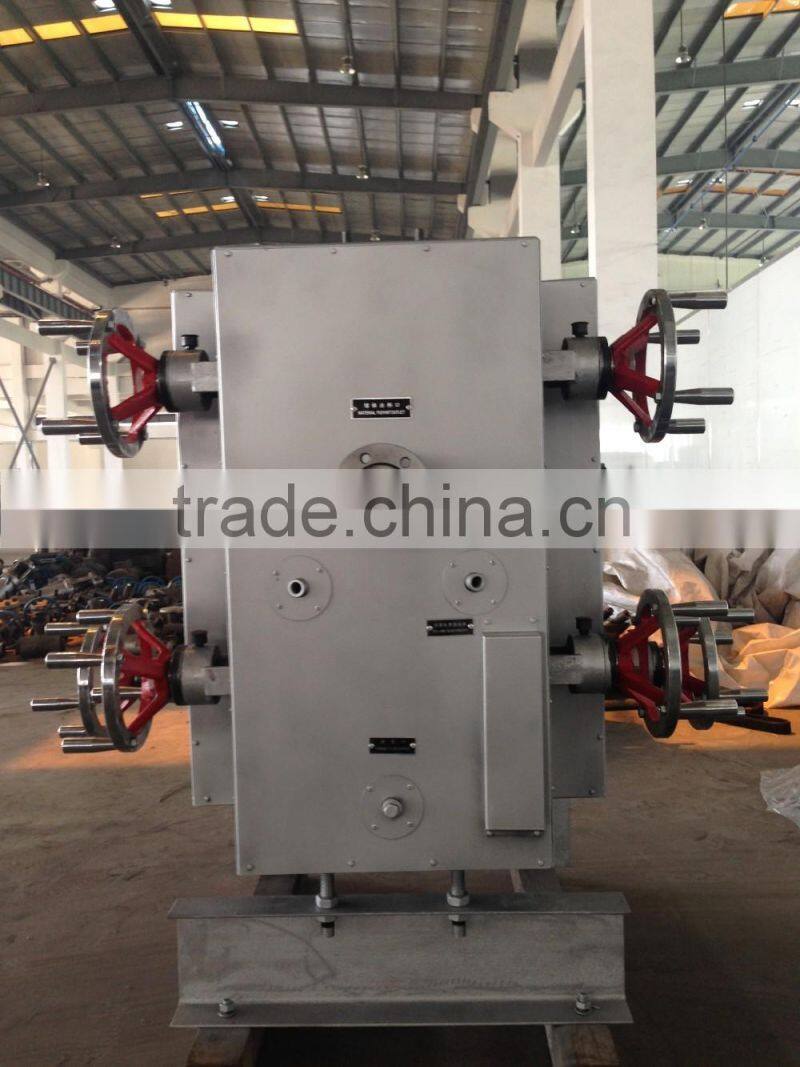

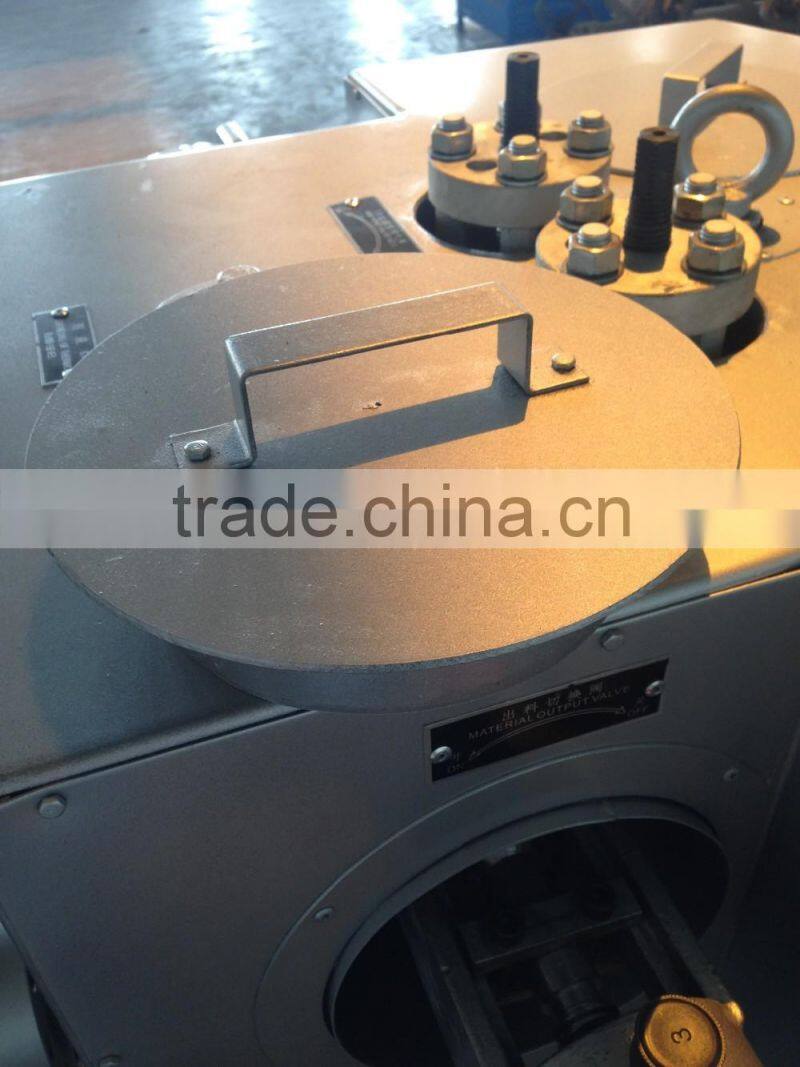

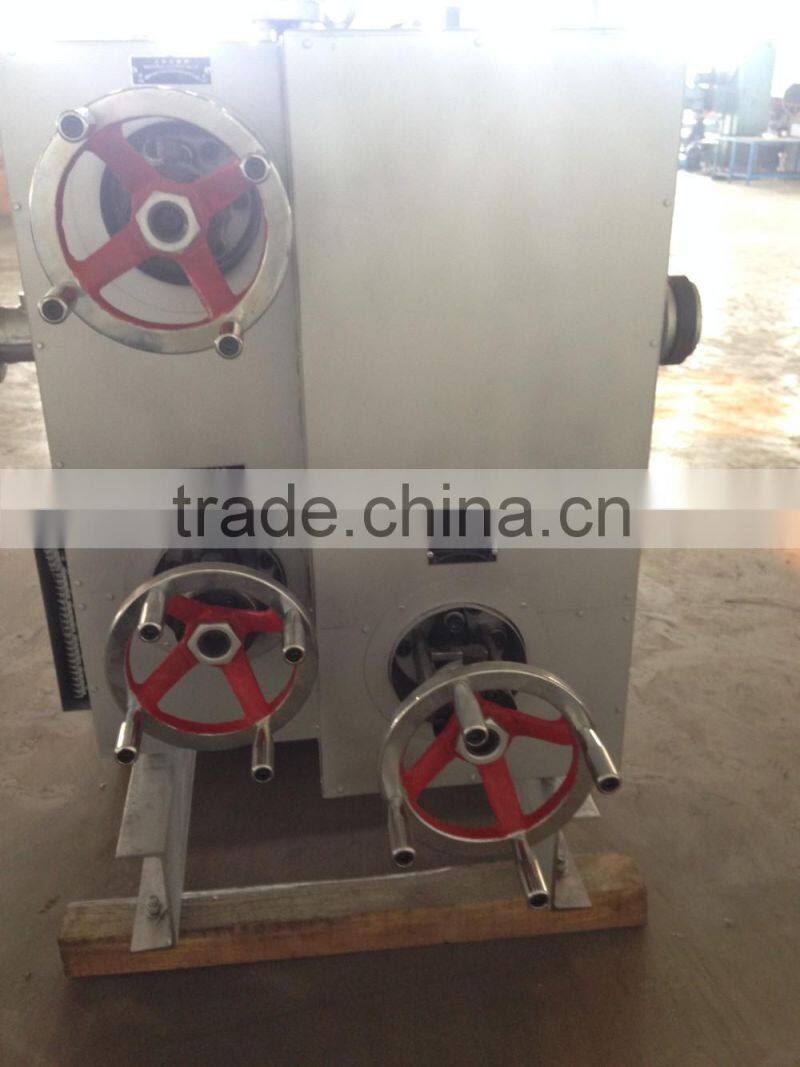

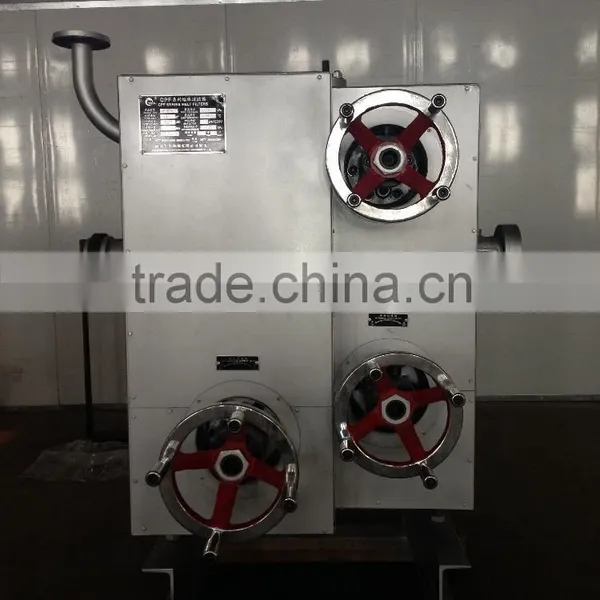

D type CPF Vertical Continuous Change-Over Melt Filter
It is used in the chemical fiber field. There are many chemical fiber factories all over China use our filter to select the granule of fixed filter rating and filter impurities. According to your requirement, we can supply you the exact products.
It is a nonstandard article. Hence, further understanding will lead further cooperation. If you have further interest, please let us know.
1. Advantages: (1). High filter precision
(2). Widely applicable
(3). High efficiency
(4). Warranty 1 year
2. Applications:PET.polyester fiber for zip tape.PET tape.PET plastic graining
3. Heating Method: (heat transfer)oil recirculation heating, biphenyl recirculation heating, electric heating of heat transfer oil, or electric heating if biphenyl.
4.Technical Parameters:
Model |
Diameter (mm) |
Filter Area (m2) |
Rated Flow(kg/h) |
Heating capacity (KW)
|
Main Specification |
System Pressure |
Biphenyl Jacket Pressure |
Allowable Pressure Differentia |
Operating Temperature |
|||||
PET |
H |
H1 |
H2 |
B |
B1 |
A |
||||||||
CPF-PT-1.05D |
25 |
1.05 |
75-90 |
8.8 |
1100 |
User-Defined |
User-Defined |
950 |
750 |
1200 |
Max 16Mpa |
≤0.25 Mpa |
Max 6 Mpa |
≤310 |
CPT-PT-1.26D |
30 |
1.26 |
100-140 |
8.8 |
1100 |
950 |
750 |
1200 |
||||||
CPT-PT-1.8D |
30 |
1.8 |
170-200 |
10.8 |
1150 |
1100 |
800 |
1350 |
||||||
CPT-PT-2.5D |
30 |
2.5 |
200-250 |
10.8 |
1200 |
1000 |
800 |
1350 |
||||||
CPT-PT-3.5D |
40 |
3.5 |
240-300 |
12 |
1350 |
1150 |
850 |
1450 |
||||||
CPT-PT-4.5D |
40 |
4.5 |
350-440 |
12 |
1350 |
1200 |
950 |
1500 |
||||||
CPT-PT-5.5D |
50 |
5.5 |
440-500 |
13.8 |
1350 |
1280 |
1050 |
1650 |
||||||
CPT-PT-6.5D |
60 |
6.5 |
500-600 |
13.8 |
1350 |
1280 |
1050 |
1700 |
||||||
CPT-PT-7.5D |
65 |
7.5 |
550-650 |
15 |
1300 |
1280 |
1150 |
1750 |
||||||
CPT-PT-9.5D |
65 |
9.5 |
700-850 |
15 |
1400 |
1380 |
1280 |
1800 |
||||||
CPT-PT-12D |
65 |
12 |
900-1050 |
16 |
1560 |
1380 |
1280 |
1800 |
||||||
CPT-PT-15D |
65 |
15 |
1050-1500 |
16 | 1760 |
1380 |
1280 |
1800 |
||||||
