EPS Lamination Panel Machine
US$ 40,000 - 1,000,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
HiSuccess
Model Number:
HIM-S-5/6/7Z/8AZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EPS Panel EquipmentUS$ 40,000 - 1,000,000MOQ: 1 Set -
2014 Design EPS Panel MachineUS$ 40,000 - 1,000,000MOQ: 1 Set
-
Sandwich Panel Laminating MachineNegotiableMOQ: 1 Set
-
Brand New EPS Sandwich Panel MachineUS$ 40,000 - 1,000,000MOQ: 1 Set
-
Wall Panel Sandwich Panel MachineUS$ 40,000 - 1,000,000MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
HiSuccess
Model Number
HIM-S-5/6/7Z/8AZ
After-sales Service Provided
Overseas service center available

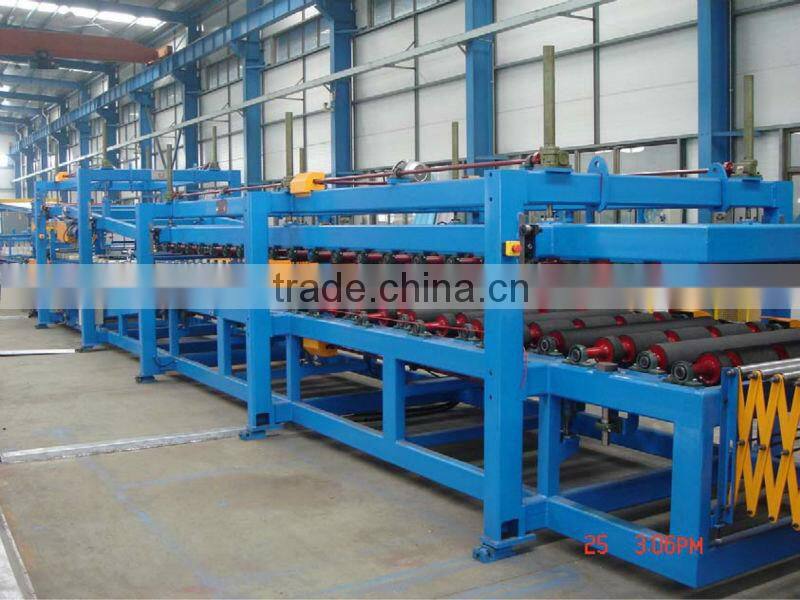

Sandwich Panel Production Line
Brief Introduction
Sandwich panel is fabricated by metallic facings and insulation materials (polyurethane foam, rock wool, polystyrene or others), which is an ideal combination of physical, mechanical and construction properties. The strength of sandwich panel lies in modularity, low weight, high degree of prefabrication, insulation properties and cost efficiency.
Main Configuration
Metal facers processing equipments / Laminator / Cut handling.

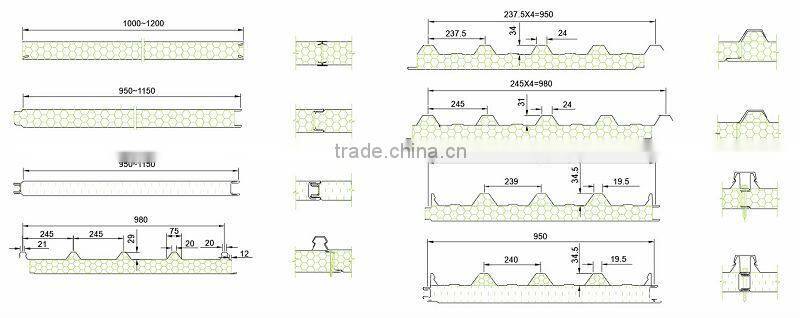

Panel Drawings
Main Parameters
ITEM |
HIM-SP-5 |
HIM-SP-6 |
Capacity, m2/h |
100~280 |
100~280 |
Speed, m/min |
0~4.5 |
0~4.5 |
Power, kw |
30 |
35 |
Net Weight, mt |
18 |
22 |
|
Dimension, m3 (not include run out table) |
37x2.3x2.5 |
40x2.3x2.5 |
Layout
