EPS Pre-expander, EPS Machine

EPS Pre-expander, EPS Machine thumbnail-1
EPS Pre-expander, EPS Machine photo-1
US$ 25,000 - 30,000 MOQ: 1 set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
HiSuccess International
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
HiSuccess International Machinery Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name HiSuccess International
After-sales Service Provided Engineers available to service machinery overseas

EPS Pre-expander from HiSuccess



Features:



1. Safety features to ensure the safe operation of the machine.



2. Japanese proportion valve for steam is adopted.



3. HMI and PLC, all parameters can be set by the touch screen.



4. Auto weighing of raw material with dedusting



5. Chamber with insulating layer prevents the beads condesate.



6. Fluid bed with vibration reduces the beads agglomeration.



Main Parameter:



Specification

Unit

PEB1200

PEB1400

PEB1600

Chamber Diameter

mm

1200

1400

1600

Chamber Height

mm

2000

2000

2000

Effective Volume

m3

2

2.7

3.5

Steam Pressure

MPa

0.3 ~ 0.6

0.3 ~ 0.6

0.3 ~ 0.6

Compressed Air Pressure

MPa

0.4 ~ 0.7

0.4 ~ 0.7

0.4 ~ 0.7

Density

kg/m3

6 ~ 25

6 ~ 25

6 ~ 25

Capacity

kg/h

200 ~ 600

400 ~ 1000

500 ~ 1200

Power

kw

29

33

33

Voltage

V/HZ

380/50

380/50

380/50

Weight

kg

2300

2600

3000

Contour Size

mm

7600*3100*4200

7600*3500*4200

7600*3700*4200

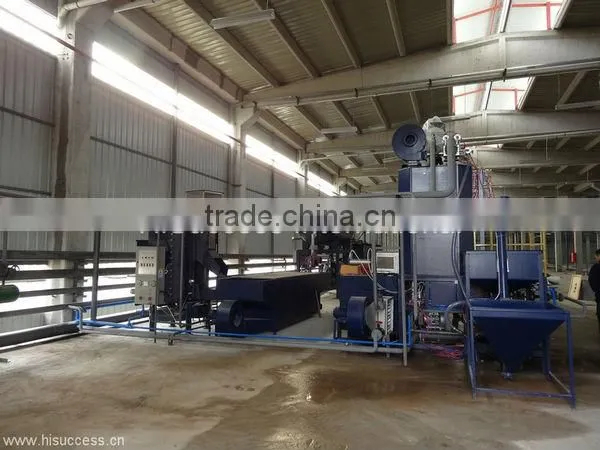

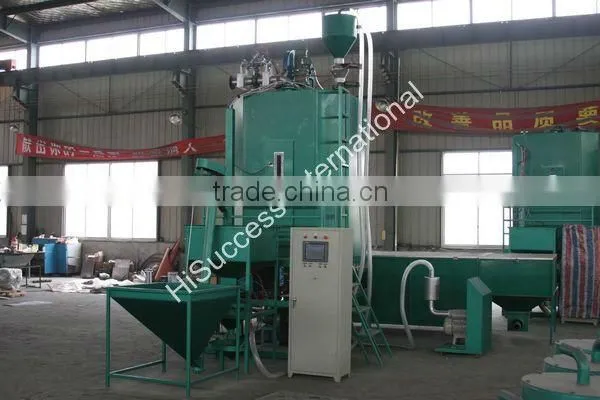

Picture:



EPS Pre-expander, EPS Machine



EPS Pre-expander, EPS Machine
