Specifications
Turbine Heat Automatic Shrink Tunnel/Wrapping Machine1.Turbo hot air flow circulation;
2.Lower heat lost to surrounding;

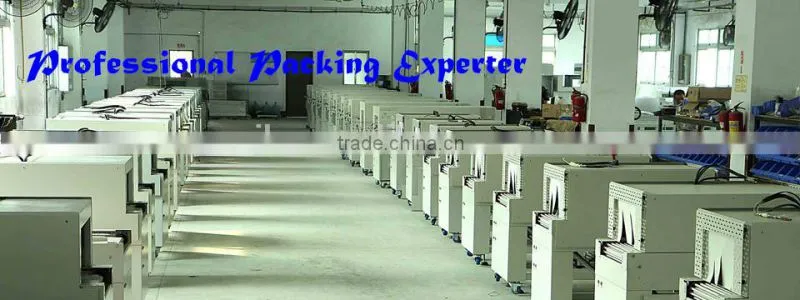

VIEW OF FACTORY

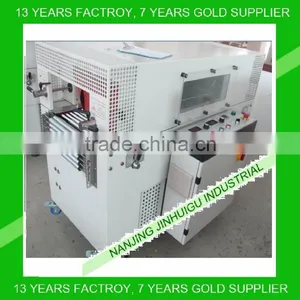

TURBINE HEAT AUTOMATIC SHRINK TUNNEL/WRAPPING MACHINE

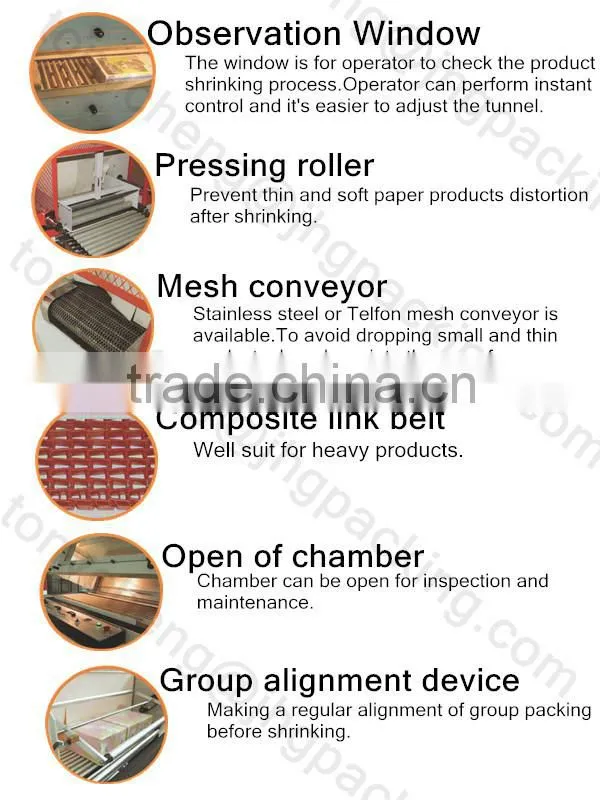

Features:
1.Installed turbo hot air flow circulation;
2.Highly reduce heat up time;
3.Lower heat lost to surrounding;
4.The lateral air flow directions of both sizes are adjustable;
6.Bottom air flow strength can be manipulated;
7.Different conveyor systems are available(Live roller,Stainless steel or Teflon mesh)
Uses:
Tin cans, bottles, soya sauce, daily-use products, cosmetic products, candies, electronic appliances, stationery, gift boxes, greeting cards, photo albums, etc.
Model |
T-61 |
T-62 |
T-63 |
T-64 |
T-65 |
|
Machine Size (mm) L x W x H |
1450x860x1080 |
1700x900x1160 |
2200x1000x1230 |
2200x1090x1230 |
2200x1250x1180 |
|
Chamber Size (mm) L x W x H |
1100x310x200 |
1200x350x280 |
1700x450x350 |
1700x540x350 |
1700x700x280 |
|
Maximum Packing size(mm) W x H |
260x150 |
300x230 |
400x300 |
500x300 |
650x230 |
Power |
3p,380v,12kw |
3p,380v,14kw |
3p,380v,16kw |
3p,380v,18kw |
3p,380v,23kw |
Conveyor speed |
0-30m/min |
||||
*Tailor made version is available
OPTIONAL ACCESSORY:
24 Hours Service:
Be free to ask me for working Video
