Specifications
Full Automatic Vertical L-Bar Sealer1.Photoelectric Sensor;
2.Automatic Film advance system;
3.Film scrap Auto receiver;
We intend to help you packing everything
VIEW OF WORKSHOP
VIEW OF FACTORY

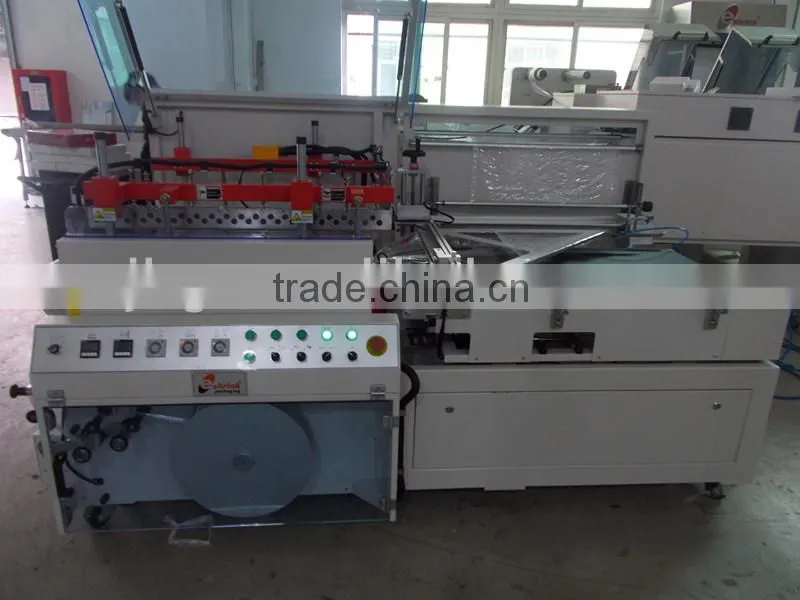

Fully Automatic Vertical L-Bar Sealer LB801
1.The procedure of plastic film packing from feeding, sealing, to shrinking is operated
automatically;
2.The auto vertical L-sealer is available for various kinds of films such as PP,PE and POF film;
3.Two sets of photoelectric sensor system for precise package length;
4.Labor cost saving. All you need to do is to load the product onto the in-feed conveyor;
5.Easy adjustment, maintenance and operation,Touch Panel control.
Product Specification:
Model |
LB-801 |
LB-803 |
|
Machine Size(mm) L x W x H |
1475x1320x1230 |
2420x1710x1325 |
|
Packing Size(mm) L x W x H |
(50-400)x(50-280)x(2-80) |
(200-830)x(200-630)x(10-180) |
|
Sealing bar (mm) L x W |
450x335 |
900x700 |
Power |
1p,220v,2.5kw |
1p,220v,4kw |
|
Conveyor Speed |
26 m/min |
|
Pneumatic |
55psi,4kg/sq.cm |
87psi,6kg/sq.cm |
*Tailor made version is available
24 Hours Service:
Be free to ask me for working video
