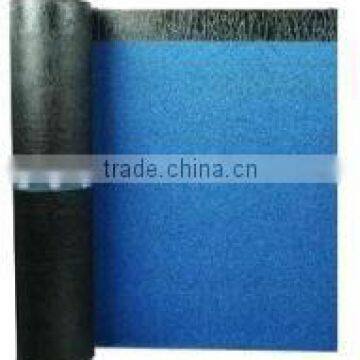

Help CenterRubber Laminate SBS Waterproof Membrane for Roofing in Wuhan by STAR
Related Products
-
5mm Elastomeric SBS Torched Waterproofing SheetUS$ 1.85 - 3.75MOQ: 1000 Square Meters -
APP Modified Asphalt Waterproofing Laminate for RoadUS$ 1.85 - 3.75MOQ: 2000 Square Meters
-
Modified SBS Elastomeric Bituminous Waterproofing Roofing LaminateUS$ 1.85 - 3.75MOQ: 1000 Square Meters
-
3mm APP Modified Bituminous Waterproof RollUS$ 1.85 - 3.75MOQ: 1000 Square Meters
-
4mm APP Modified Bituminous Waterproof RollUS$ 1.85 - 3.75MOQ: 1000 Square Meters
1. Product Description
SBS Waterproof Membrane using polyester reinforcement for waterproofing is a new type of wateproof material,it's made from polyester felt as its reinforcement featuring high strength,elongation amd corrision resistance, SBS compound as its modifier for meeting the torched-on applications, it shall be covered with polyethylene membrane(PE),aluminium foil, colorful sand or mineral granule on its top surface and polyethylene membrane(PE) coated on its under face. This series of membrane is designed for the waterproofing of underground construction such as tunnel, subway, basement,roofs and pools etc.
2.Characteristic
- Good impermeability
- Thinckness: 3mm,4mm,5mm
- Length:8m,10m or customed
- Being applied in the cold area with low temperature:0°C, -5°C, -10°C,-20°C, -25°C
- Good performance in anti-puncture, anti-broker, anti-resistance, anti-erosion, anti-mildew, anti-weathering
- Possess good tensile strength, elongation rate and size stability which could be well suited the substrate distortion and crack
3. Applications
4.Pictures for your reference
Our factory
Certification Show
5. Technical Index(Executive standard: GB18242-2008)
| No. | Item | I | II | ||||
| PY | G | PY | G | PYG | |||
| 1 | Soluble content/(g/m2)≥ | 3mm | 2100 | — | |||
| 4mm | 2900 | — | |||||
| 5mm | 3500 | — | |||||
| Test Result | — | No flame | — | No flame | — | ||
| 2 | Heat Resistance | °C | 90 | 105 | |||
| ≤mm | 2 | ||||||
| Test Result | no flowing, no dripping | ||||||
| 3 | Low temperature flexibility/°C | -20 | -25 | ||||
| no crack | |||||||
| 4 | Impermeability 30minutes | 0.3Mpa | 0.2MPa | 0.3MPa | |||
| 5 | Tension | Maximum/(N/50mm) | 500 | 350 | 800 | 500 | 900 |
| Secondary-Maximum/(N/50mm) | — | — | — | — | 800 | ||
| Test Result | no crack, no apart | ||||||
| 6 | Elongation | Maximum≥ | 30% | — | 40% | — | — |
| Secondly-Maximum≥ | |||||||
6.Storage and transportation
- Different type and specification should be stacked separately;
- Avoid sun-scorched and rain-drenched, Be ventilation;
- The storage temperature should below 50°C;
- It have to be one storey when keep in storage stand on end, and shouldn't be more than two storeys when transporting;
- Avoid tilting or lateral drift, Covered with tarpaulin if need;
- Base on the normal storage and transportation, the storage period is one year from the date of production
7. construction technology
- Base processing: the base surface must be clean, solid, level, dry; no grit, rift and loosing dust. For a large recess, fill it with cement mortar and then level it. Remove the protrusion and clean dust. If working on base slab or lateral face, water lowering should be done.
- Painting primer: before laying the membrane, clean the dust on the surface of concrete base with dust catcher or dust-blower.
- Heat to melt: place membrane correctly, fire torch, heat the membrane with base entirely, when the surface of the membrane is black and bright with a fusion layer, apply the membrane and press it into a solid and flat state. Before the membrane is cool, seal the edge of joint by float.
- Requirements for lapping: There should be less than 3 layers of lapping, with the joint seams appearing as "T" type, avoid 4 layers of lapping. The width of longitudinal lapping is between 50 and 80mm, and of end-lap joint 100mm.
