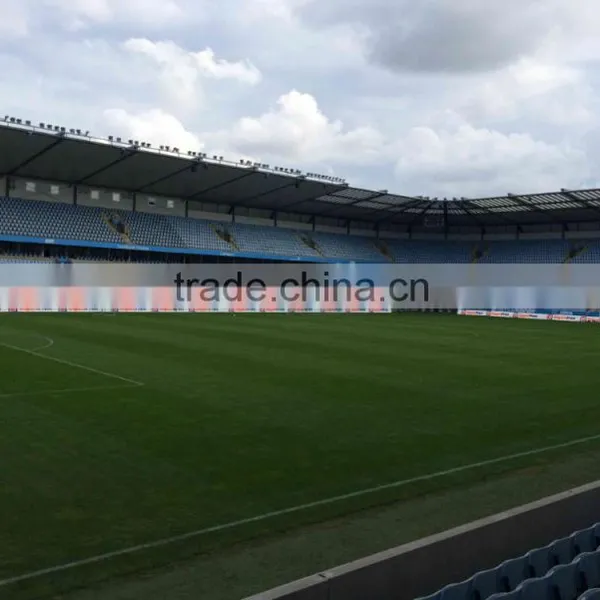

p10 outdoor rubber mask led perimeter advertising system

Specifications

CE,ROHS
2 years warranty
soft mask proection
customized cabinet size
p10 led perimeter advertising system

p10 outdoor rubber mask led perimeter advertising system



Advantages:

1, Silicon rubber is chosen for waterproof protector. This material has high thermostability. We design three-protectors structure for waterproof.
2, The mask is designed with high capacity of impact resistence. Buffering arc-surface 'structure is applied for the mask shelter It can defuse the impact football, tennis ball and players.
3, New structure design. It can meet the needs of rental, perimeter and fix installation. This multi-functional cabinets makes the new items easily and conveniently applied in different occasions. And this structure make the seam of cabinets connection much small. During hanging.
3, New color collocation, the color contrast between the black cabinet body and silver-gray door makes the LED screen much more elegant
4, Angle adjustable back bracket. User can adjust the best display viewing angle for audience by the bracket. When rental and fix installation, the bracket can be folded on the cabinet.
5, Rubber protector for top of cabinet to protect the player from injury.
6, Aluminum alloy is used for the cabinet to reduce weight, easy to move from this stadium to that stadium.



Technical Parameters:

NO.	Item	Parameter
1	Model	P10
2	Pixel pitch	10mm
3	Pixel configuration	1R1G1B
4	LED type	DIP346
5	Module size	160*160mm
6	Module resolution	16*16
7	Cabinet resolution	128*96
8	Cabinet size	1280*960mm
9	Density	10000dots/m2
10	Brightness	≥7500 NIT
11	Scan method	1/4 scan
12	Best view distance	≥8m
13	Max. power consumption	750W/m2
14	Ave. power consumption	350W/m2
15	Cabinet Weight	55kg/m2
16	Grey scale	4096 level
17	Colors	6.87 billion
18	Refresh rate	≥960Hz
19	View angle	Horizontal: 90° - 130°, Elevation: 30° - 45°, Depression: 10° - 20°
20	Color temperature	6500K
21	Frame frequency	≥60Hz
22	Out of control pixel rate	<1/10000
23	MTBF	>5000 hours
24	Lifespan	50000 hours
25	Control mode	Synchronous display with control PC by DVI
26	Working voltage	AC 100/200v 50-60Hz
27	Control distance	Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km
28	Operation temperature	-20 to +40
29	Operation Humdity	10% to 80%
30	Protection level	IP65
