Help CenterP10 Rubber Mask Outdoor Perimeter Led Soccer Substitution Board
Related Products
-
P10 Outdoor Perimeter Soccer Advertising Led ScreenUS$ 1,000 - 2,000MOQ: 1 Piece -
P10 Outdoor Rubber Mask Soccer Advertising Led DisplayUS$ 1,000 - 2,000MOQ: 1 Piece
-
P16 Outdoor Soccer Stadium Perimeter Led DisplayUS$ 1,000 - 2,000MOQ: 1 Piece
-
P16 Outdoor Advertising Full Color Led Stadium tv ScreenUS$ 500 - 2,000MOQ: 1 Square Meter
-
P16 Outdoor Full Color Led Advertising Board StadiumUS$ 500 - 2,000MOQ: 1 Square Meter
Specifications
CE,ROHS2 years warranty
soft mask proection
customized cabinet size
p10 led soccer substitution board

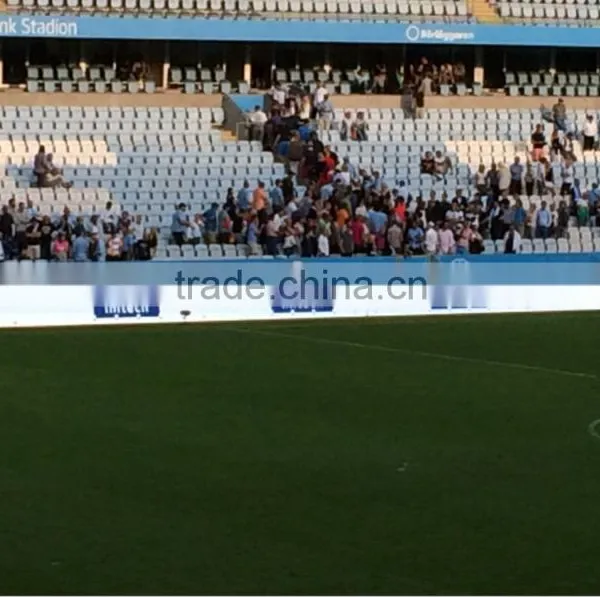

P10 rubber mask outdoor perimeter led soccer substitution board, rubber mask led soccer substitution board, perimeter led soccer substitution board
Advantages:
1, Silicon rubber is chosen for waterproof protector. This material has high thermostability. We design three-protectors structure for waterproof.
2, The mask is designed with high capacity of impact resistence. Buffering arc-surface 'structure is applied for the mask shelter It can defuse the impact football, tennis ball and players.
3, New structure design. It can meet the needs of rental, perimeter and fix installation. This multi-functional cabinets makes the new items easily and conveniently applied in different occasions. And this structure make the seam of cabinets connection much small. During hanging.
3, New color collocation, the color contrast between the black cabinet body and silver-gray door makes the LED screen much more elegant
4, Angle adjustable back bracket. User can adjust the best display viewing angle for audience by the bracket. When rental and fix installation, the bracket can be folded on the cabinet.
5, Rubber protector for top of cabinet to protect the player from injury.
6, Aluminum alloy is used for the cabinet to reduce weight, easy to move from this stadium to that stadium.
Technical Parameters:
| NO. | Item | Parameter | ||||
| 1 | Model | P10 | ||||
| 2 | Pixel pitch | 10mm | ||||
| 3 | Pixel configuration | 1R1G1B | ||||
| 4 | LED type | DIP346 | ||||
| 5 | Module size | 160*160mm | ||||
| 6 | Module resolution | 16*16 | ||||
| 7 | Cabinet resolution | 128*96 | ||||
| 8 | Cabinet size | 1280*960mm | ||||
| 9 | Density | 10000dots/m2 | ||||
| 10 | Brightness | ≥7000 NIT | ||||
| 11 | Scan method | 1/4 scan | ||||
| 12 | Best view distance | ≥8m | ||||
| 13 | Max. power consumption | 750W/m2 | ||||
| 14 | Ave. power consumption | 350W/m2 | ||||
| 15 | Cabinet Weight | 55kg/m2 | ||||
| 16 | Grey scale | 4096 level | ||||
| 17 | Colors | 6.87 billion | ||||
| 18 | Refresh rate | ≥960Hz | ||||
| 19 | View angle | Horizontal: 90° - 130°, Elevation: 30° - 45°, Depression: 10° - 20° | ||||
| 20 | Color temperature | 6500K | ||||
| 21 | Frame frequency | ≥60Hz | ||||
| 22 | Out of control pixel rate | <1/10000 | ||||
| 23 | MTBF | >5000 hours | ||||
| 24 | Lifespan | 50000 hours | ||||
| 25 | Control mode | Synchronous display with control PC by DVI | ||||
| 26 | Working voltage | AC 100/200v 50-60Hz | ||||
| 27 | Control distance | Ethernet cable: 100m, Multi-mode optical fiber: 500m, Singel-mode optical fiber: 20km | ||||
| 28 | Operation temperature | -20 to +40 | ||||
| 29 | Operation Humdity | 10% to 80% | ||||
| 30 | Protection level | IP65 | ||||
P10 rubber mask outdoor perimeter led soccer substitution board, rubber mask led soccer substitution board, perimeter led soccer substitution board
