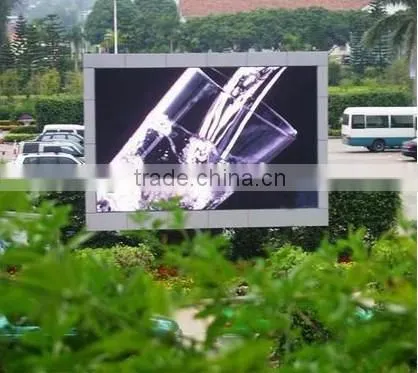

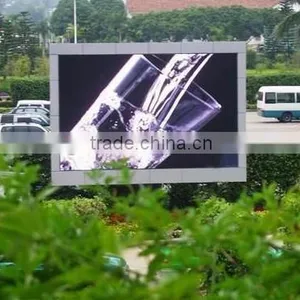

Short Delivery Stock P10 Full Color Outdoor Smd Led Panel
US$ 1,000 - 2,000
MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Proge outdoor smd led panel
Model Number:
PG-OFC-P10
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Wide Viewing Angle P10 Smd Outdoor Led Video WallUS$ 1,000 - 2,000MOQ: 1 Square Meter -
Low Price Advertising Full Color P10 Outdoor Smd Led ScreenUS$ 1,000 - 2,000MOQ: 1 Square Meter
-
High Resolution Full Color Smd 3535 p6 Outdoor Led WallUS$ 1,000 - 3,000MOQ: 5000 Square Meters
-
Outdoor Advertising Full Color Smd3535 p6 Led BillboardUS$ 1,000 - 3,000MOQ: 5000 Square Meters
-
Outdoor Advertising Smd3535 p6 Outdoor Led BoardUS$ 1,000 - 3,000MOQ: 5000 Square Meters
Place of Origin
Guangdong, China
Brand Name
Proge outdoor smd led panel
Model Number
PG-OFC-P10
Usage
Outdoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
10mm
Screen Dimension
outdoor smd led panel
short delivery stock p10 full color outdoor smd led panel
Features:
1. Lightweight and slim, depth in 110mm, 20kg/panel.
2. Both hanging-up installation and stacking installation are available. It can support 30 panels for the
Hanging lock.
3. Neutrik Powercon True1 and Ethercon connectors make it reliable and fast connecting.
4. Rotatable hanging lock and manual safety button ensure its fast lock and avoid panels dropping off.
5. Die-casting aluminum frame ensure the flatness of the screen and seamless among panels.
6. High brightness with more than 7500NIT.
7. Water-proof with IP65, can be used indoor and outdoor.
Specification:
| LAMP | LED | SMD 3535 |
| MODULE | Pixel Configuration | SMD 3in1 |
| LED Driving Method | 1/4 static | |
| Resolution(pixels) | 32*32 | |
| Pixel Pitch | 10mm | |
| LED Module Size | 320mm*320mm*30mm | |
| CABINET | LED Modules Quantity | 3x3pcs |
| Pixels | 96x96 | |
| Module Area | 0.92sq. m | |
| Cabinet Size | 960mm*960mm*150mm | |
| Net Weight | 50kg | |
| Power | AC220/110 ± 10%, 47~63Hz | |
| Water Proof | Front IP65 / Rear IP54 | |
| Serviceability | Rear Service | |
| DISPLAY | Max. Power Consumption | < =900W/sq. m |
| Avg. Power Consumption | < =450W/sq. m | |
| Max. Current | < =4.71A/sq. m | |
| Hor. Viewing Angle (min50% brightness) | 150 degree | |
| Vert. Viewing Angle (min50% brightness) | 120 degree | |
| Brightness | > =6000cd/sq. m | |
| Pixel Density | 10, 000/sq. m | |
| Power Factor | > 0.7 | |
| Contrast Ratio | 2, 000: 1 | |
| Operation Temperature | -20º C to +60º C | |
| Operation Humidity | 10% to 90% | |
| Lifetime (50% brightness) | 100, 000 hours | |
| Processing | 16 bit | |
| Colors | 281 trillion | |
| Refresh Rate | 1200 Hz | |
| Frame Rate | 60 Hz |
